Bermaq AM2-i — Semi-automatic acrylic edge polisher
Loading interactive model…

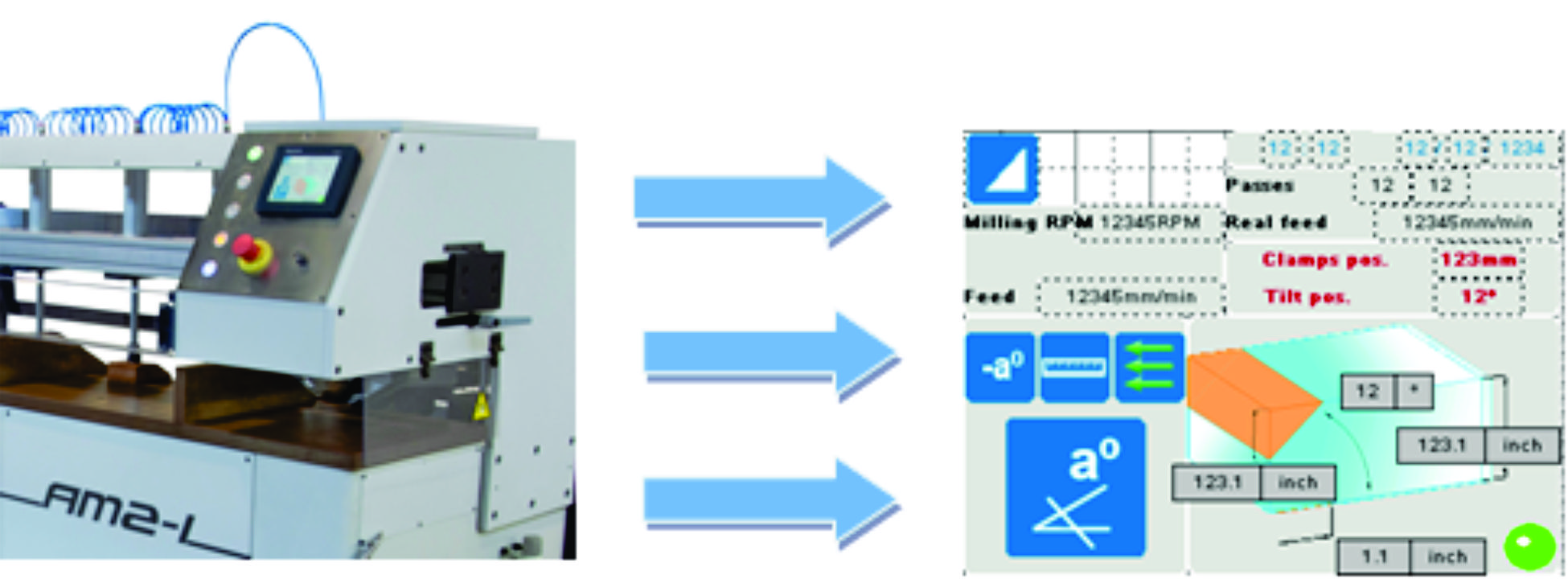

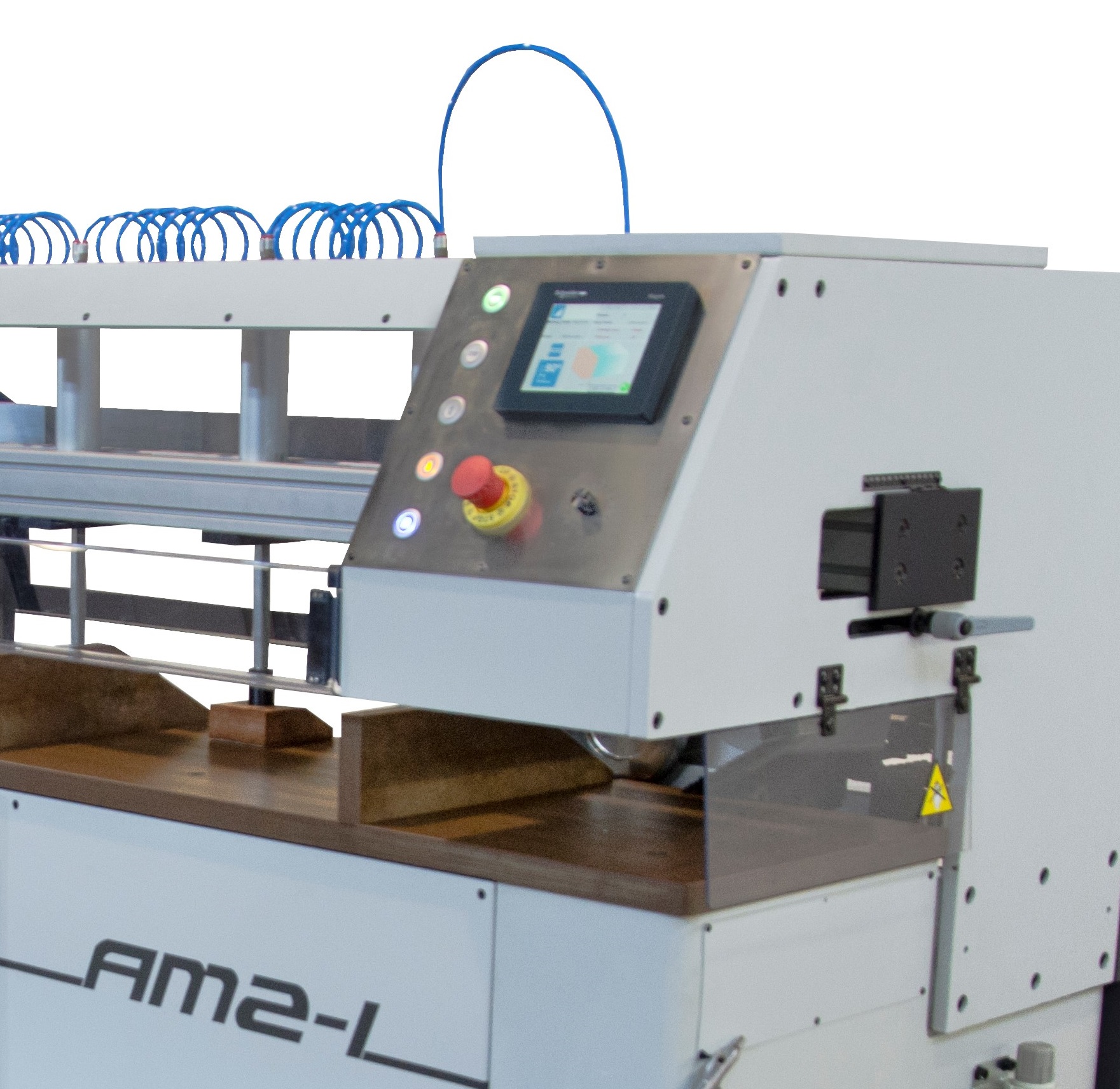

Touch screen control
User-friendly touch screen with an intuitive interface to adjust speed, pressure and other polishing parameters according to the material and the desired finish.
Management software
Operator-configurable parameters, multiple operating modes, recipe and program management, alerts and security, production and maintenance history, plus connectivity for remote technical support.
Added value in quality

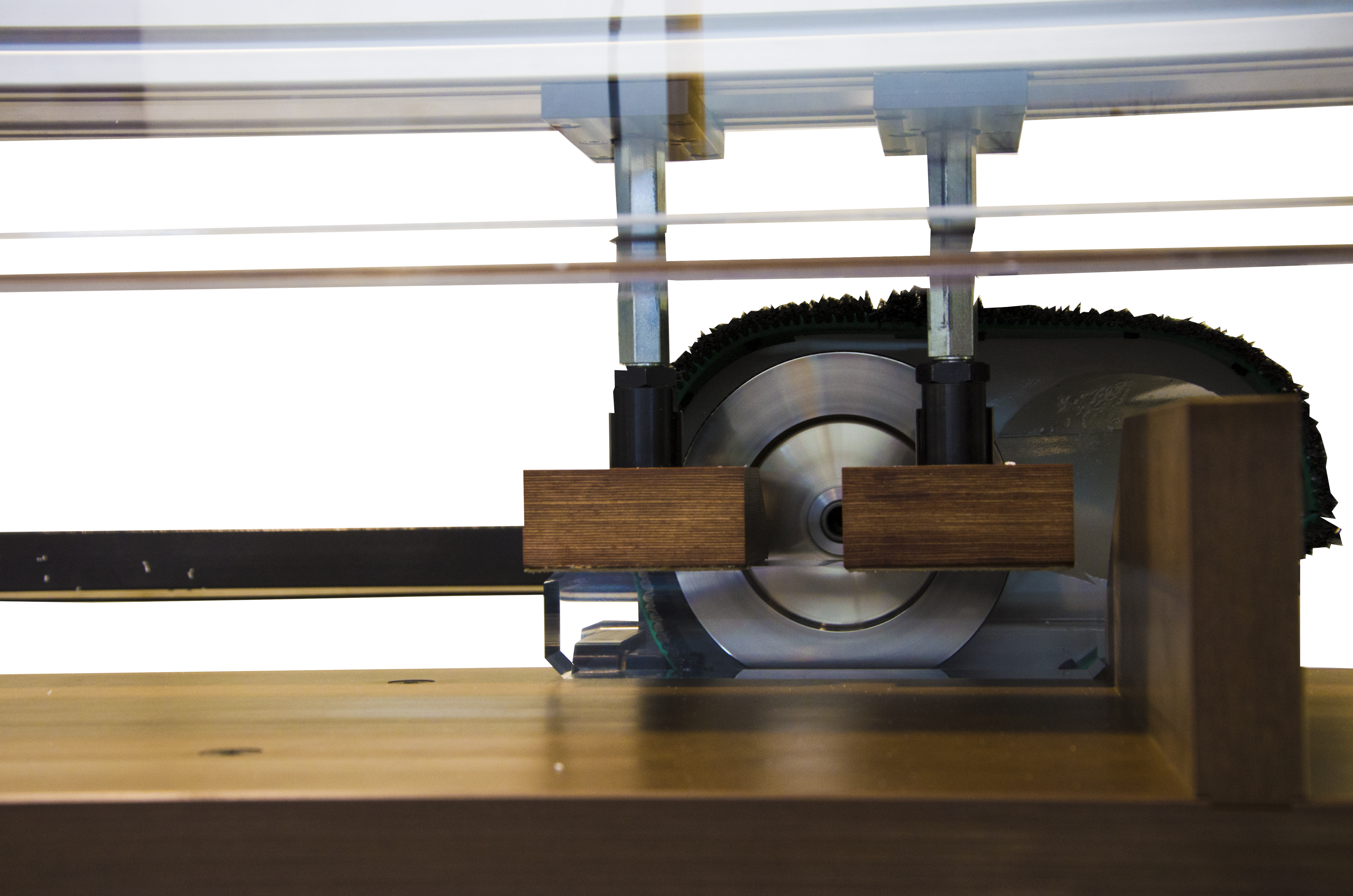

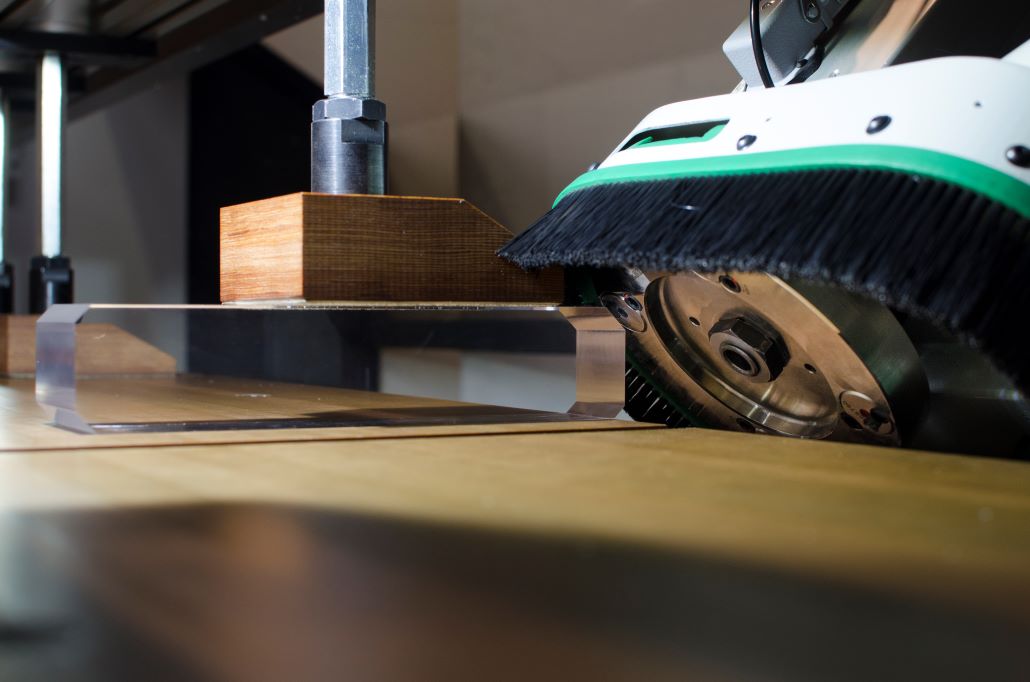

The transparency, shine and smoothness achieved after polishing the edges with diamond tools gives the pieces extra appeal and quality.

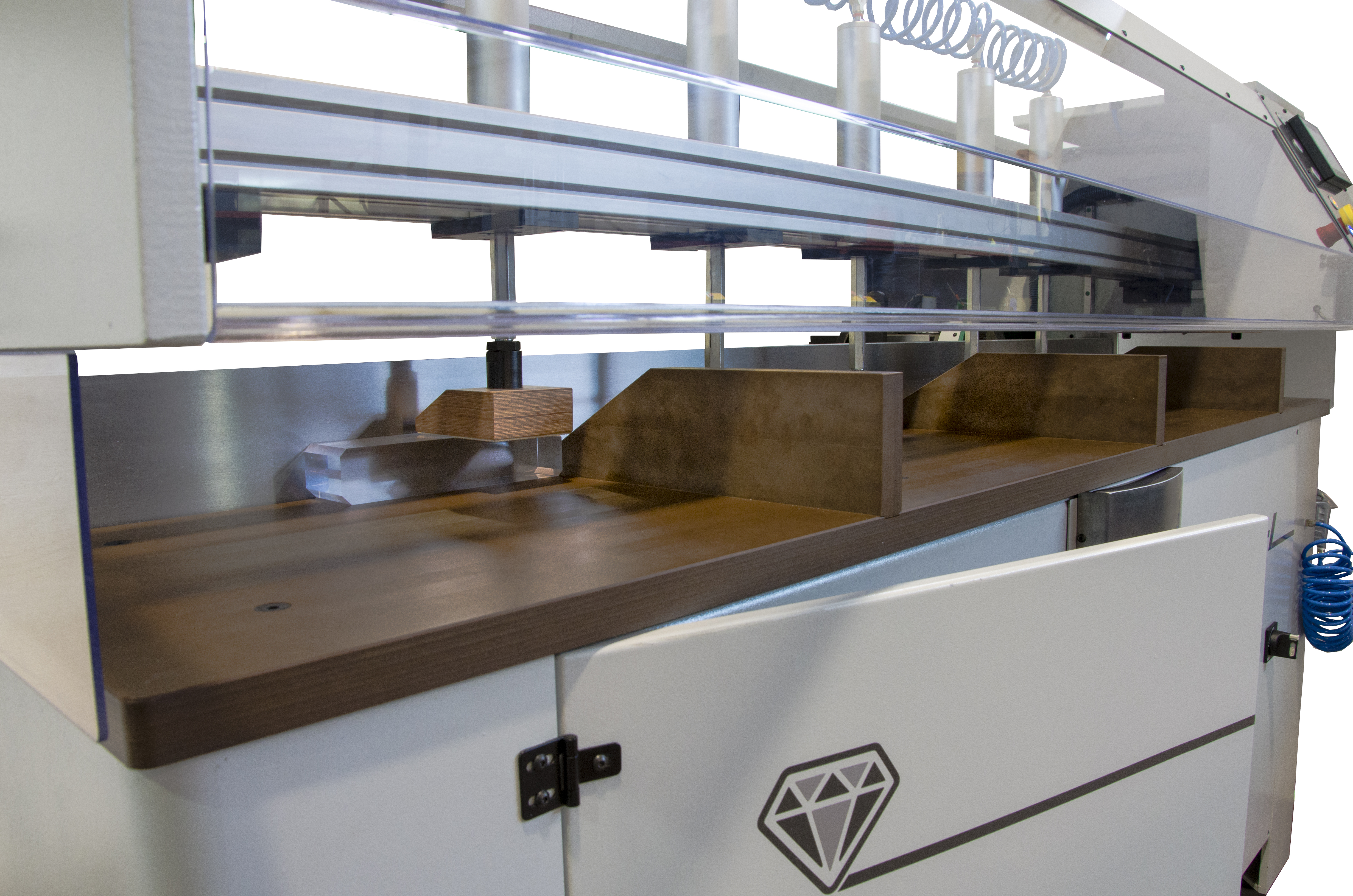

Ergonomic loading

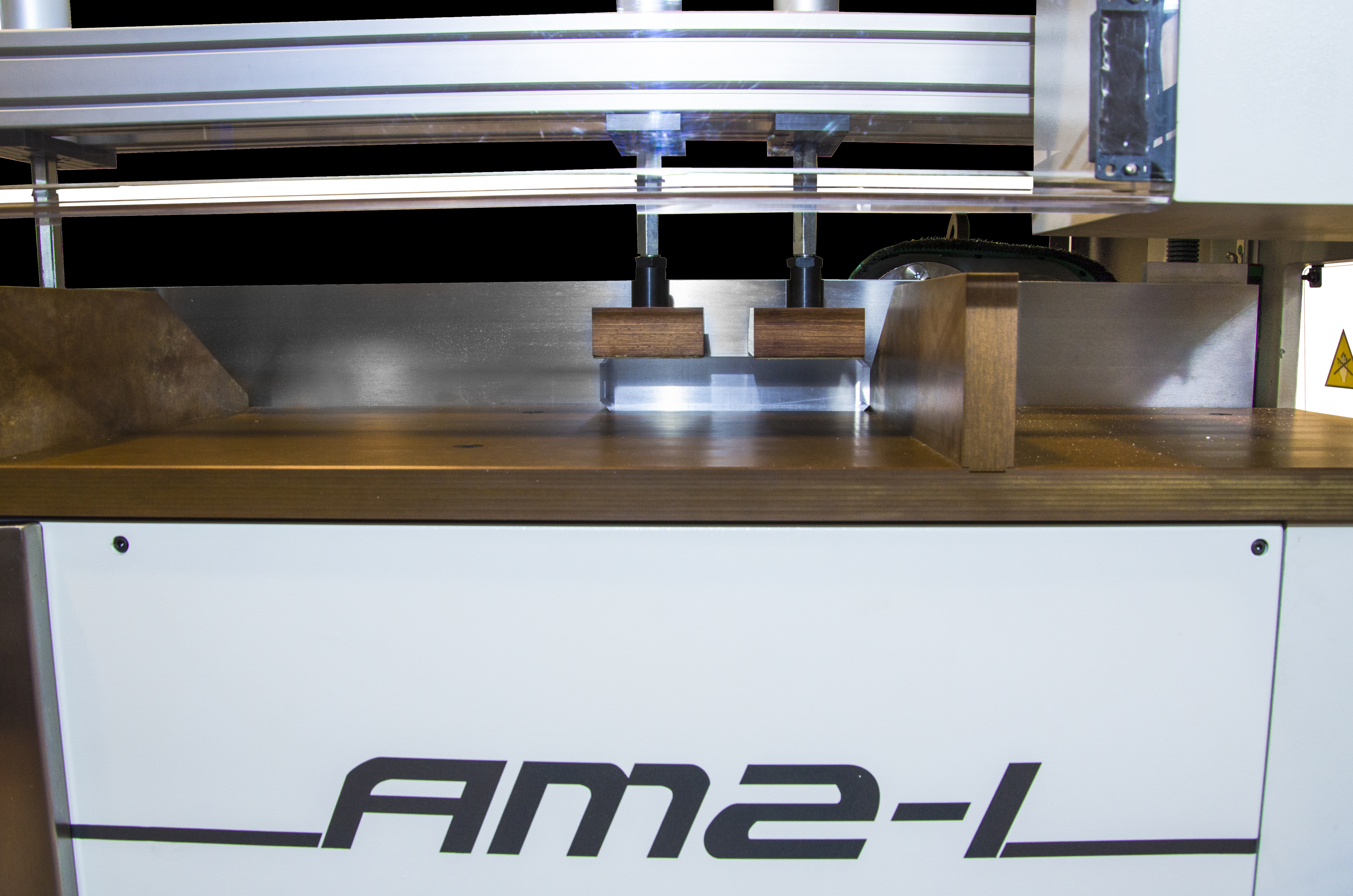

Easy part loading on a sliding surface that prevents scratches on processed and polished parts, with anchor points for repetitive tasks that need simple fixing stops.
Bermaq AM2-i
The best performance option

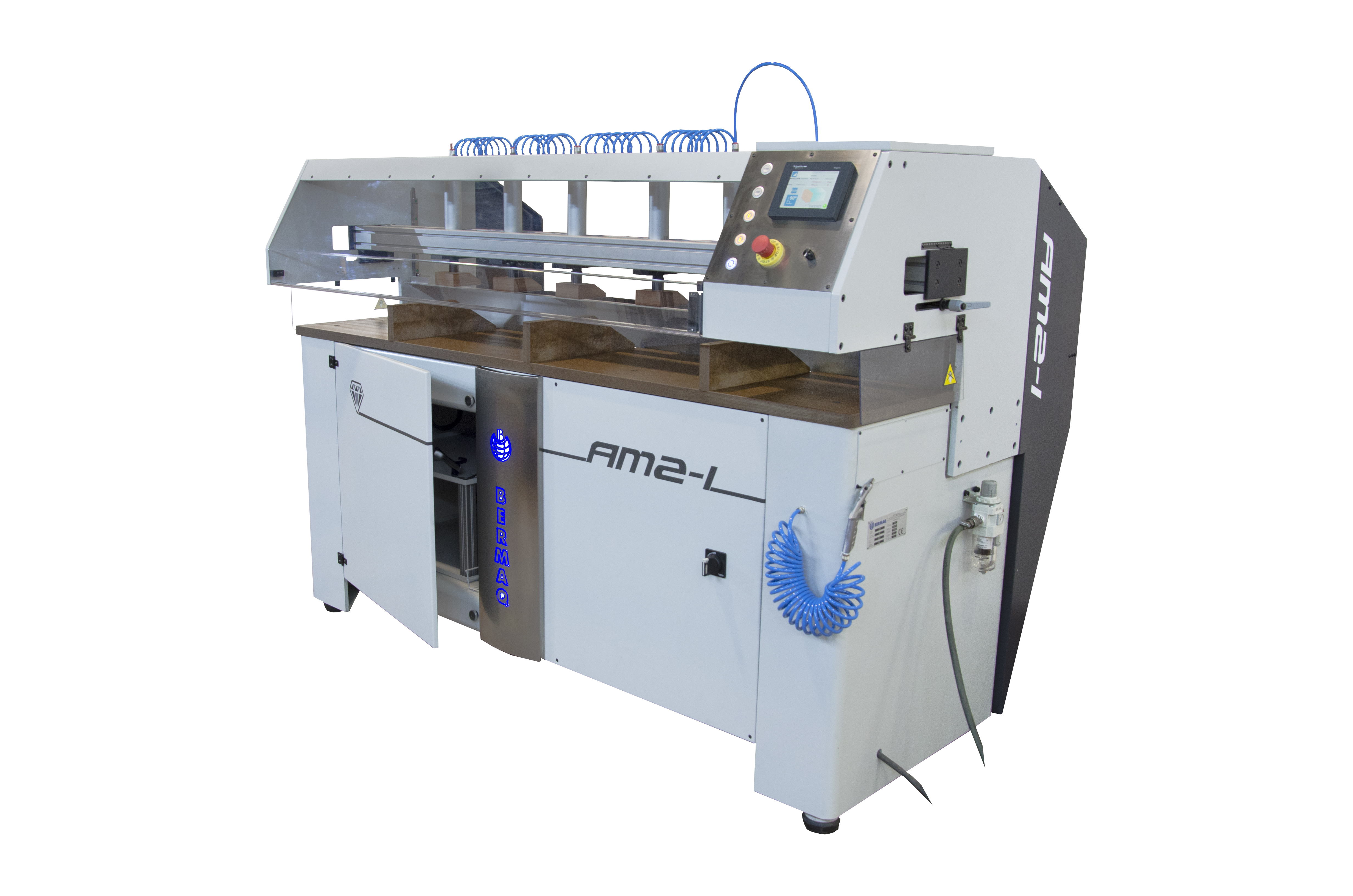

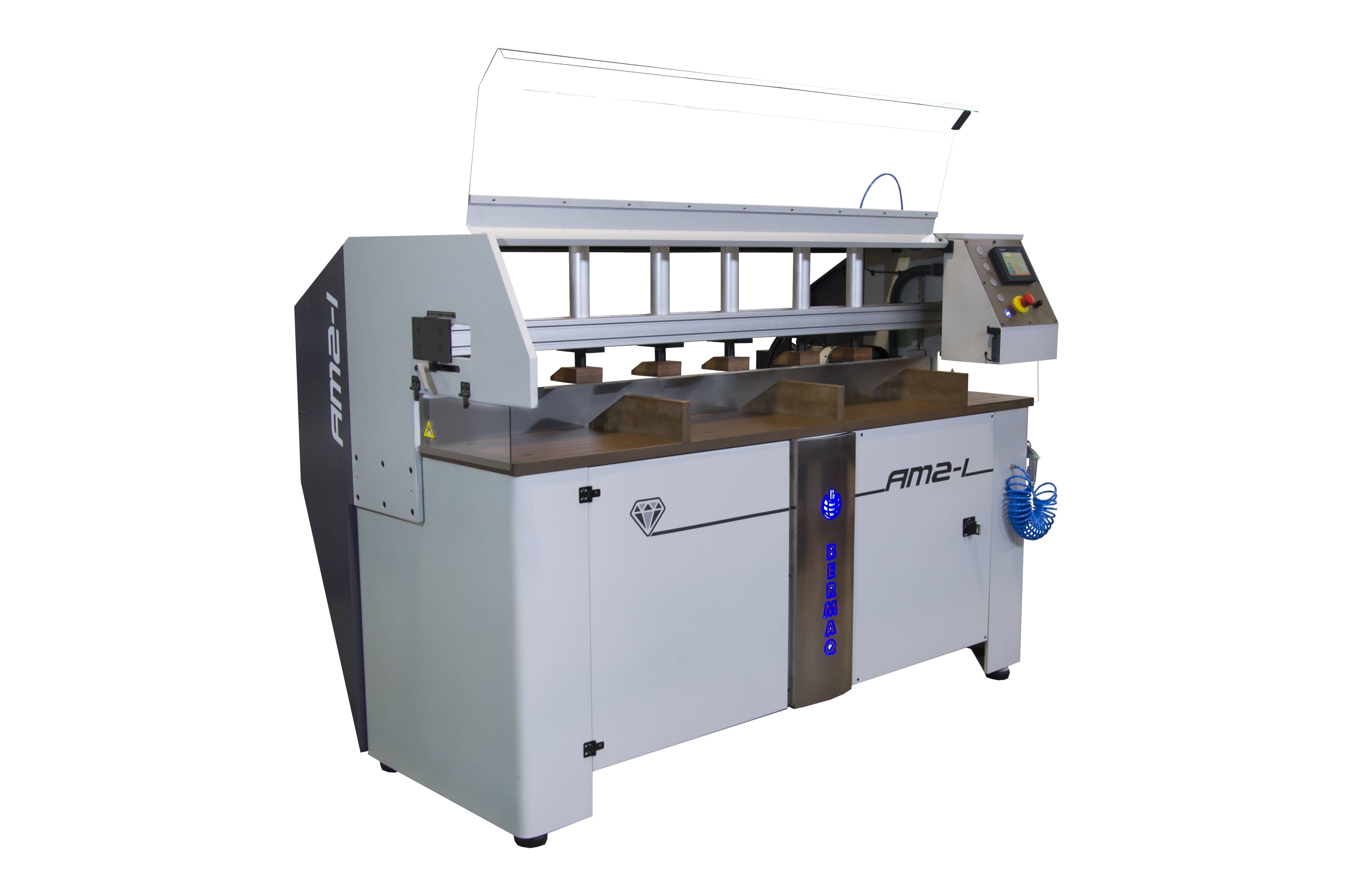

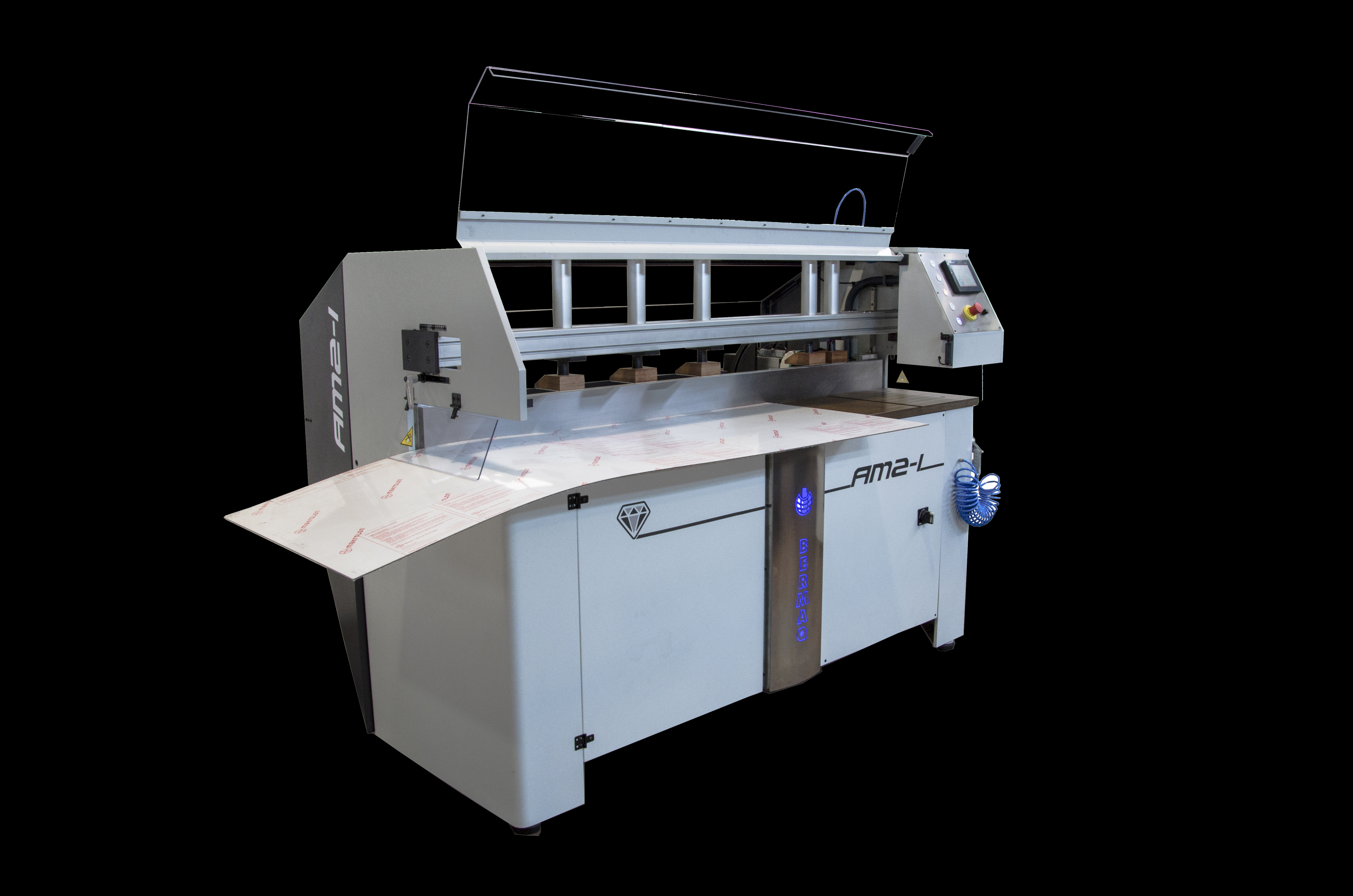

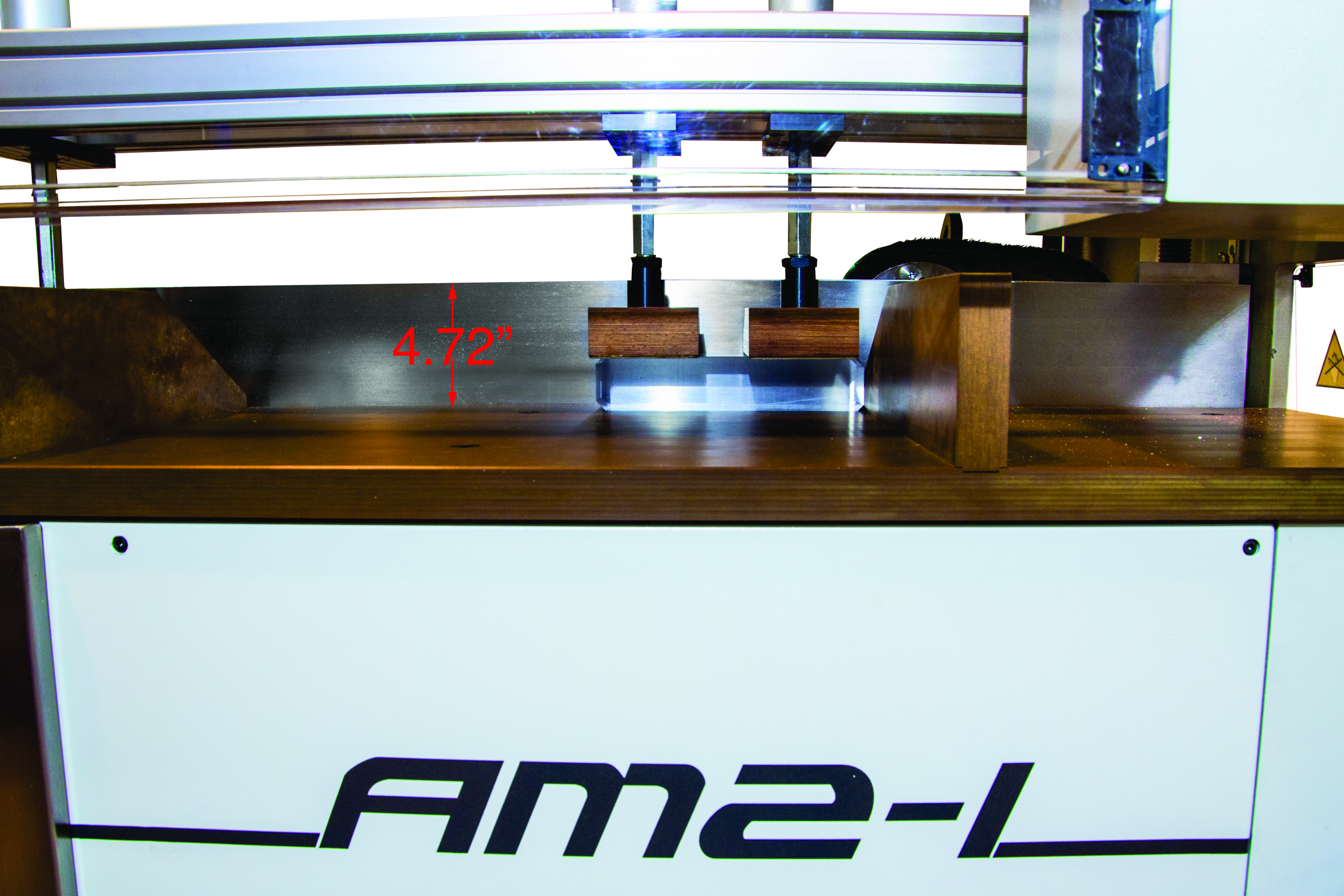

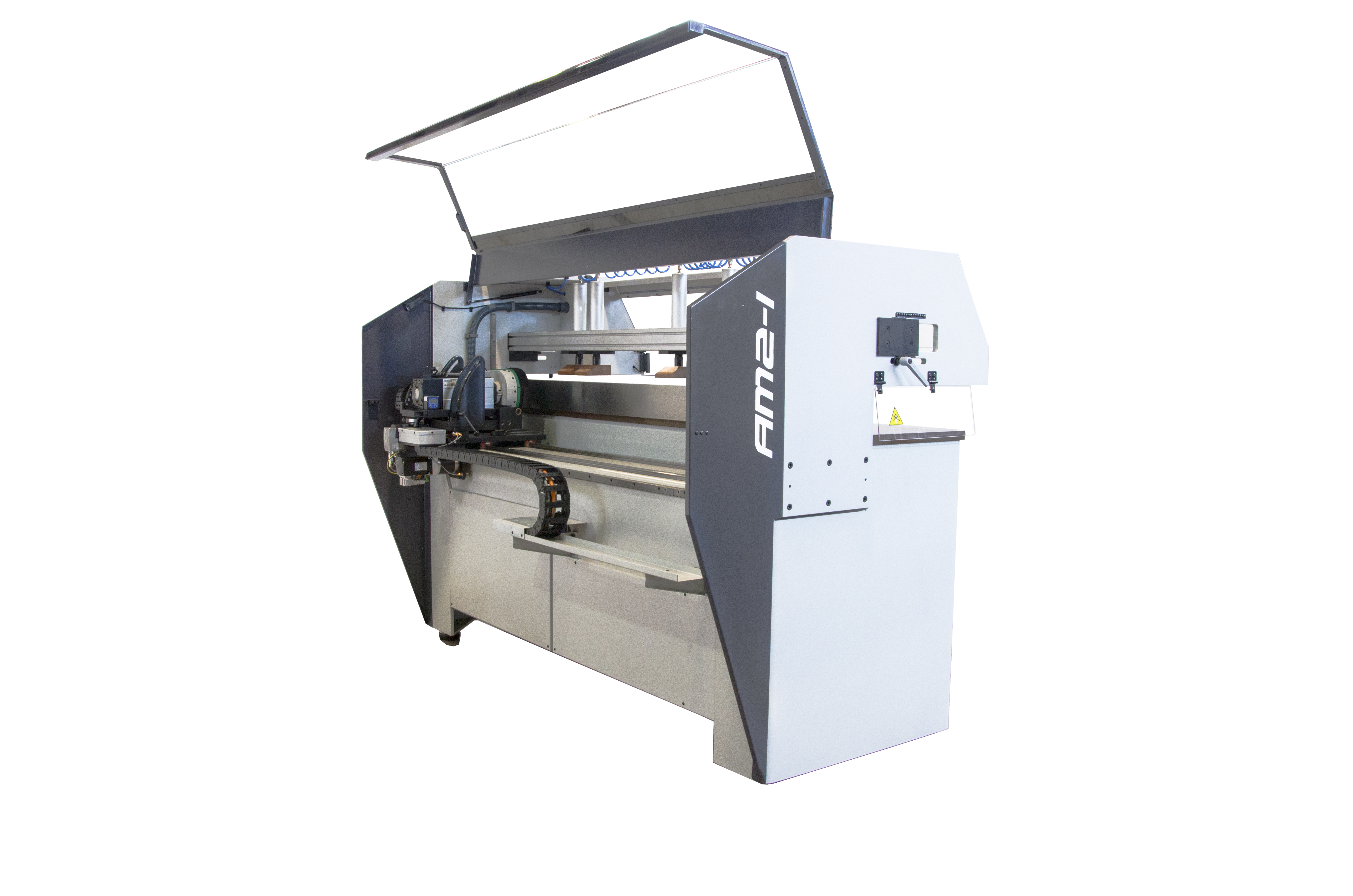

The Bermaq AM2-i is a semi-automatic diamond edge polishing machine with a 55" (1,400 mm) working length, built for straight and beveled edges on acrylic (PMMA), polycarbonate and Dibond up to 4.72" thick. It combines automatic feed and touchscreen parameter control with a manually tilting head for bevels from 0° to +45°. It's a fit for shops that want a true diamond-polished edge without the footprint of a full CNC line — the machine is 90" long and weighs 2,866 lbs.
Key data
At a glanceMaterial capability
Technical data
- Thickness of piece at 0°
- 0.08 … 4.72"
- Thickness of piece at 45°
- 0.08 … 2.95"
- Workpiece length
- 8 … 55"
- Tilt range
- 0° … +45° (manual head)
- Pieces polished at once
- Up to 5 per cycle (one per clamp)
- No. of clamps
- 5 included (max. 5)
- No. lateral stops
- 0 (3)
- Machine length
- 90"
- Machine width
- 52"
- Machine height
- 63"
- Work table height
- 36.5"
- Weight
- 2,866 lbs
- Feed speed
- 3.94 … 394 in/min
- Return speed
- 1,968.5 in/min
- Cutting speed
- 6,000 … 10,000 rpm
- Milling depth
- 0.002 … 0.059"
- Milling depth at 45°
- 0.002 … 0.197" per step
- Air pressure
- 6 bar
- Power supply
- 230 VAC 3 Ph, 208 VAC // 380 VAC 3Ph+N // 50/60 Hz
- Vacuum interface diameter
- 80 mm
- Total power
- 5.0 kW
Best for
- Small and mid-size shops moving from flame or hand polishing
- Parts up to 55" long, straight or beveled
- Short runs with frequent changeovers
Materials
Cast and extruded PMMA, PC and composites such as Dibond, from 0.08" to 4.72" at 0° and up to 2.95" at 45°.
Why the Bermaq AM2-i
- Diamond-polished transparency and shine from a compact machine
- Recipe and program management, production and maintenance history
- Sliding loading surface that protects polished parts from scratches
- Connectivity for remote technical support
Common applications
Displays and POS fixtures · Trophies and awards · Exhibit and scenography parts. See edge polishing by application
Compare
- Consider the Bermaq AMI-C if you need parts longer than 55", automatic tilting up to +63°, or 5 to 10 parts per cycle.
- Consider the Euracryl V30 Cube if you mainly need bevels on smaller parts and want a compact beveler.
- Not sure? Match a machine to your parts in the Machine Finder.
Bermaq AM2-i FAQ
+What is the working length of the Bermaq AM2-i?
8" to 55" (200 to 1,400 mm).
+Does the AM2-i polish bevels?
Yes. The head tilts manually from 0° to +45°, for parts up to 2.95" thick at 45°.
+How many parts can the AM2-i polish at once?
Up to 5 per cycle, one per clamp.
+What power does the AM2-i need?
230 VAC 3-phase or 208 VAC, or 380 VAC 3Ph+N, 50/60 Hz, 5.0 kW total, plus 6 bar air and an 80 mm vacuum connection.
