Bermaq AMI-C — Automatic CNC acrylic edge polishing machine
Loading interactive model…

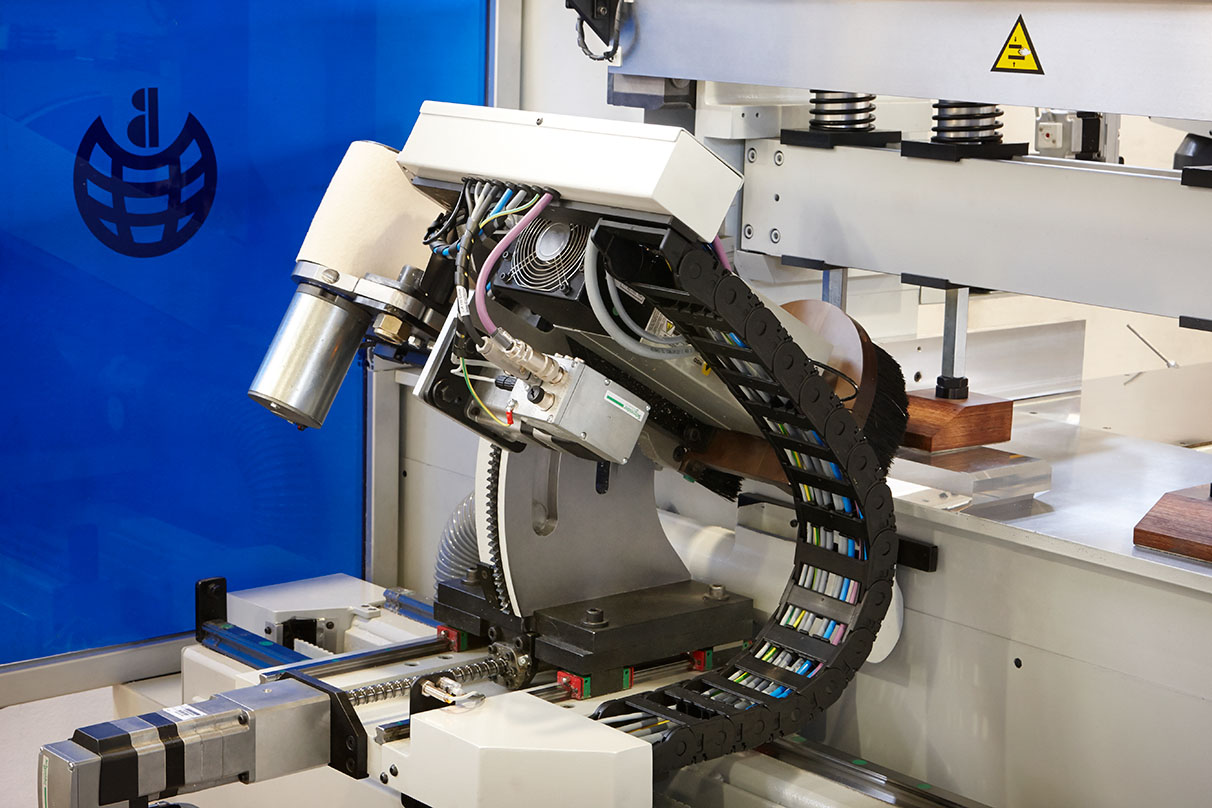

Automatic tilting head
The automatic head permits angled polishing automatically, without the need for calculations or manual adjustments. Max. inclination workpiece -2º up to +63º.
Electronic adjustable depth
Regulate working and polishing depth electronically. The operator sets the desired depth with millimeter precision from the control panel — improving efficiency, repeatability and quality on jobs that need constant accuracy.

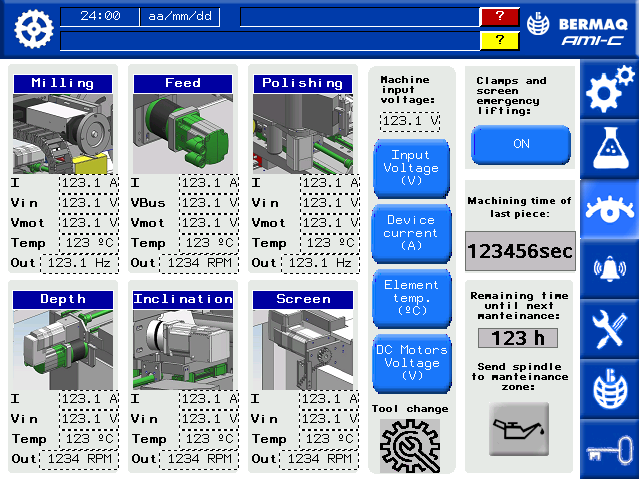

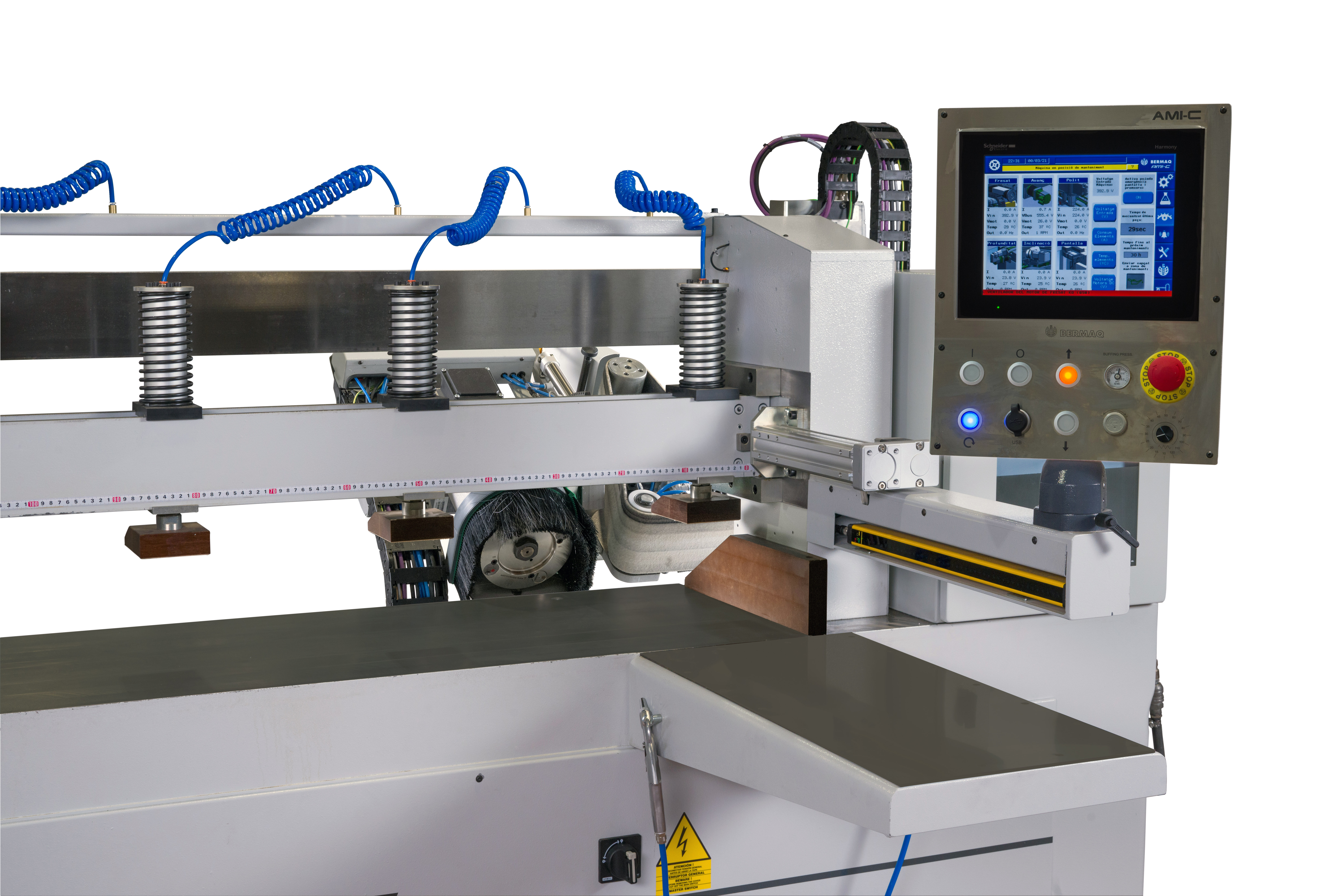

CNC control with 10.4" LCD touch screen
Industrial touchscreens built to withstand dust, temperature changes, high humidity and intense vibration. BERMAQ software with a library and database of parameters for materials, thicknesses and special tools.
Polishing head
The polishing disk carries four interchangeable tools of the highest quality, covering the full range of finishes.
Teleservice
Effective 24-hour online technical support, plus a new tool change mode for faster changeovers.
Bermaq AMI-C
Two models for a perfect solution — AMI-C 2100 & AMI-C 3100

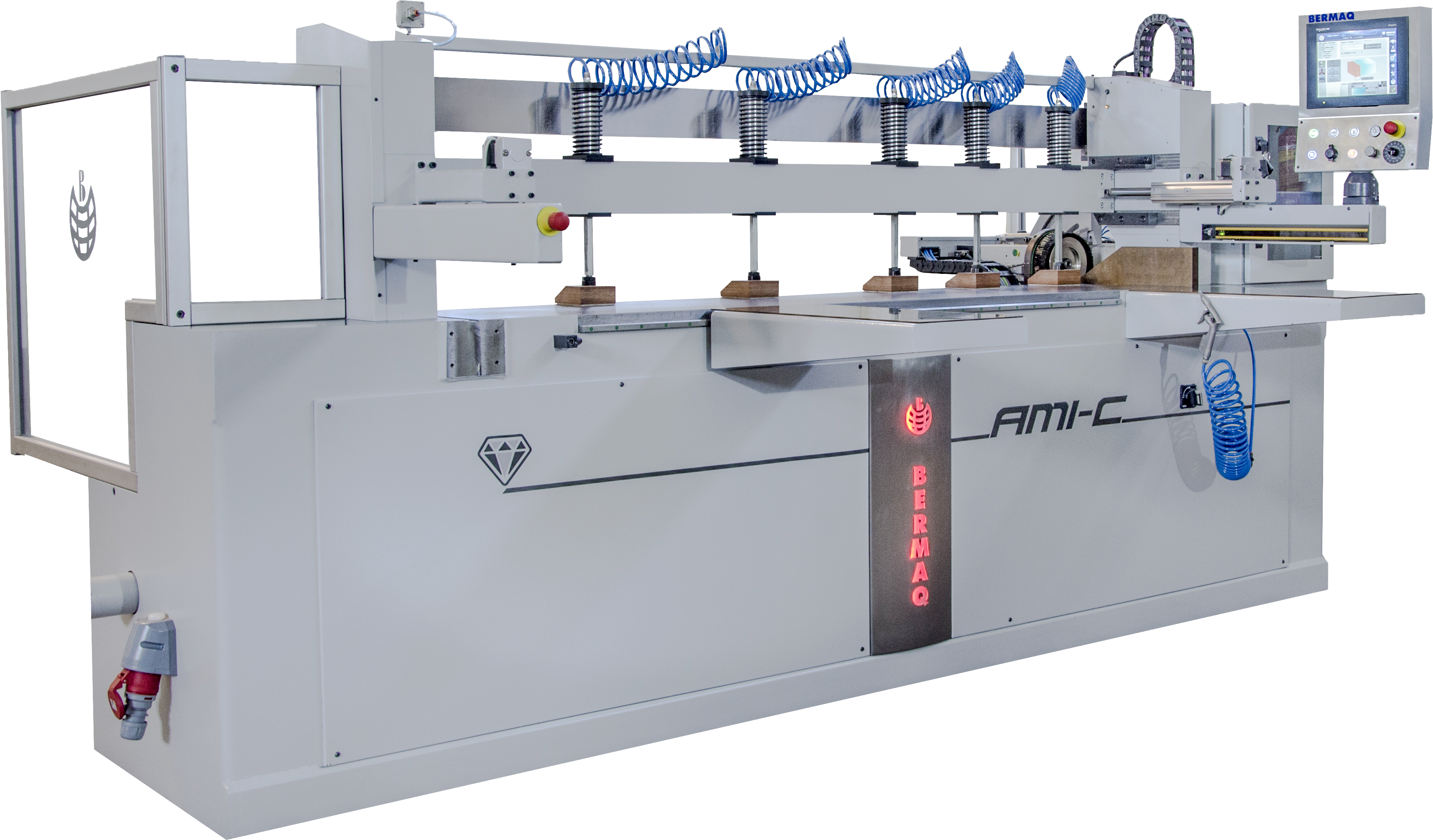

The Bermaq AMI-C is an automatic, large-format CNC edge polishing machine for acrylic (PMMA), polycarbonate, PETG and composite panels. It comes in two working lengths — 82.6" (AMI-C 2100) and 122" (AMI-C 3100) — and its automatic tilting head polishes straight 90° edges or bevels from -2° to +63° without manual setup. Depth is set electronically from the 10.4" touchscreen, and the Bermaq parameter library stores settings by material, thickness and tool. We run Bermaq polishers in production at our Orange, California shop.
Key data
At a glanceMaterial capability

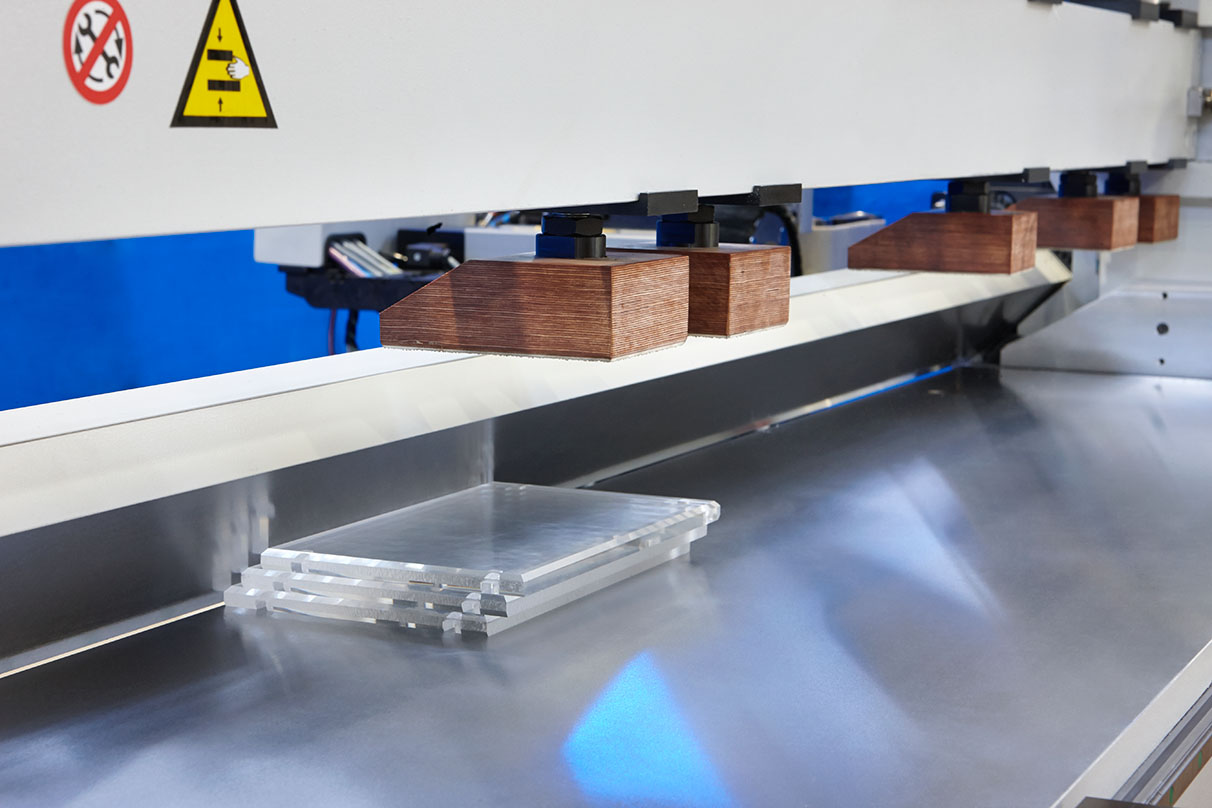

The machine at work
Technical data
- Thickness of piece at 0°
- 0.08 … 4.72"
- Thickness of piece at 45°
- 0.08 … 4.13"
- Workpiece length
- 8 … 82.6" / 122"
- Tilt range
- -2° … +63° (automatic)
- Pieces polished at once
- 5 … 10 per cycle
- No. of clamps
- 5 included (max. 12)
- No. lateral stops
- 0 (3)
- Machine length
- 155"
- Machine width
- 48"
- Machine height
- 64"
- Work table height
- 36.5"
- Weight
- 6,400 lbs
- Feed speed
- 3.94 … 394 in/min
- Return speed
- 1,968.5 in/min
- Cutting speed
- 6,000 … 12,000 rpm
- Milling depth
- 0.002 … .059"
- Milling depth at 45°
- 0.05 … 0.197" per step
- Air pressure
- 6 bar
- Power supply
- 230 VAC, 208, 3 Ph // 380 VAC 3Ph+N // 50/60 Hz
- Vacuum interface diameter
- 80 mm
- Total power
- 5.0 kW
Best for
- Production shops polishing long panels up to 122"
- Mixed straight and beveled work where the head angle changes job to job
- Polishing 5 to 10 parts per cycle with repeatable depth
Materials
Cast and extruded PMMA, PC, PETG and composites such as Dibond / Alucobond, in thicknesses from 0.08" to 4.72" at 0° (up to 4.13" at 45°).
Why the Bermaq AMI-C
- Automatic tilting from -2° to +63° — no angle calculations or manual head adjustment
- Electronic depth adjustment with millimeter precision
- Four-tool polishing disk covering the full range of finishes
- Teleservice for remote technical support
Common applications
Architectural panels and partitions · Signage faces and light boxes · Display and POS components · Thick award blocks with deep bevels. See edge polishing by application
Compare
- Consider the Bermaq AM2-i if your parts are under 55" long and a manually tilted head (0° to +45°) is enough.
- Consider the Kuper Euracryl ABP 310 if you turn very long parts (up to 244" with overhang) or need a vacuum table and up to 20 clamps.
- Not sure? Match a machine to your parts in the Machine Finder.
Bermaq AMI-C FAQ
+What is the maximum working length of the Bermaq AMI-C?
82.6" (2,100 mm) on the AMI-C 2100 and 122" (3,100 mm) on the AMI-C 3100. Minimum part length is 8".
+Can the AMI-C polish bevels?
Yes. The head tilts automatically from -2° to +63°, and parts up to 4.13" thick can be polished at 45°.
+What power does the AMI-C need?
230 VAC or 208 VAC 3-phase, or 380 VAC 3Ph+N, 50/60 Hz, 5.0 kW total, plus 6 bar compressed air and an 80 mm vacuum connection.
+Can I see the AMI-C run on my parts?
Yes. Book an in-person demo at our Orange, CA shop, a live video demo, or send material and we'll polish samples for you.
