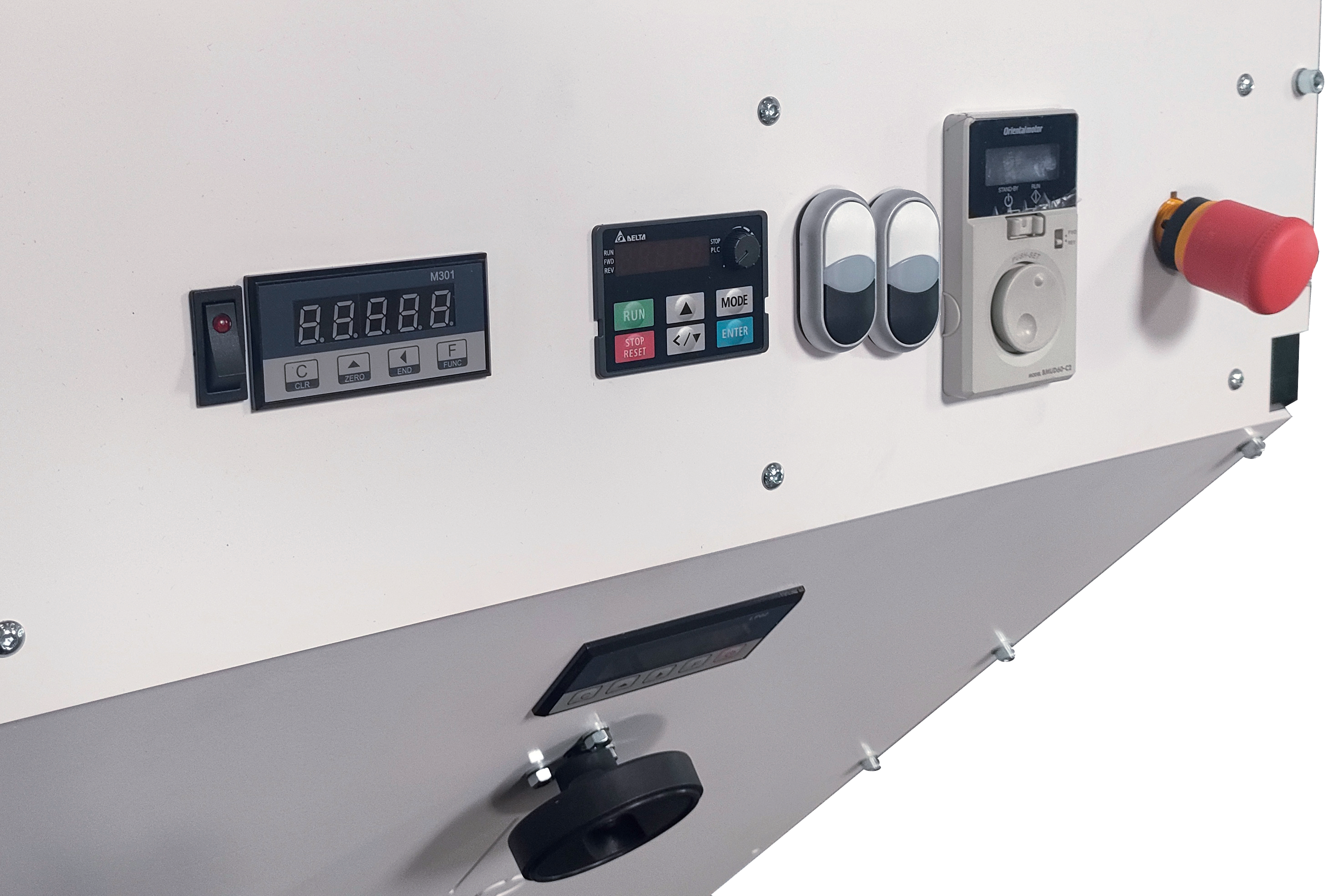

Digital depth and speed display
Control panel with digital displays for tool speed, feed rate, swivel angle and milling depth.

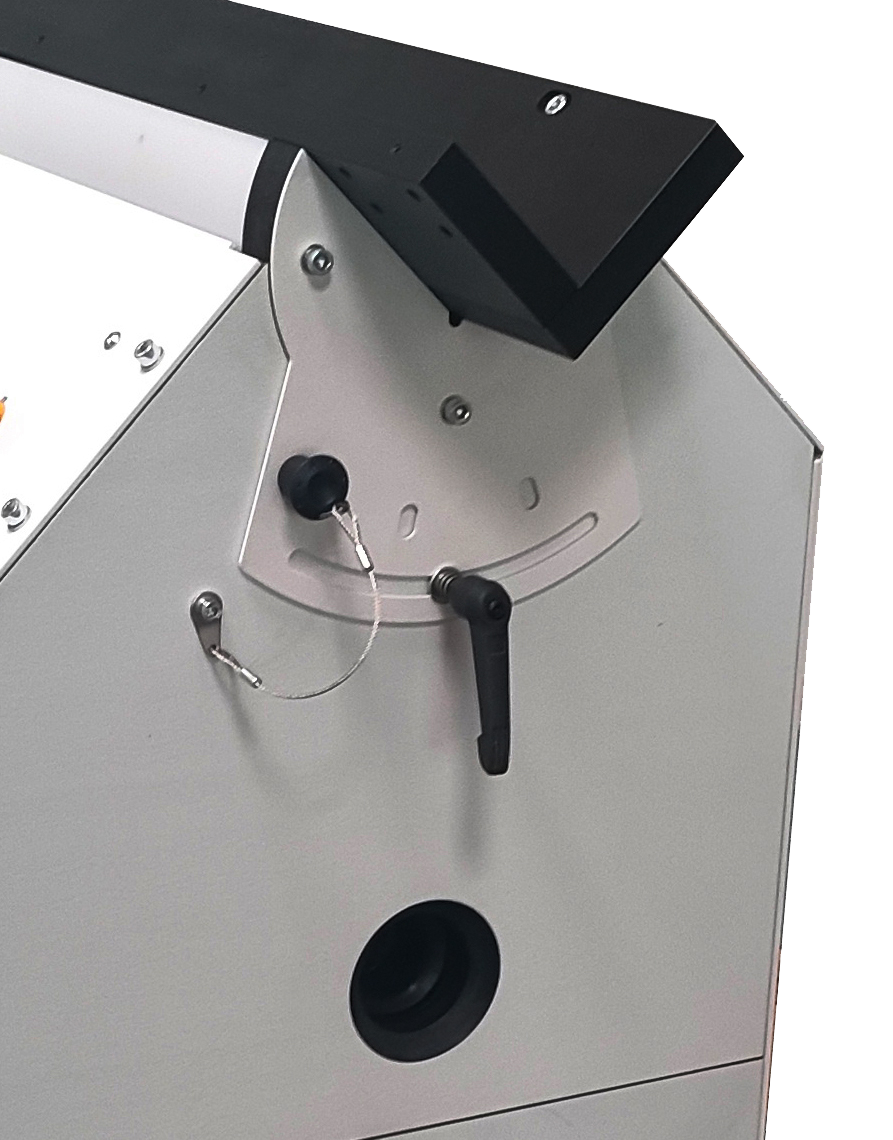

Tilting guides

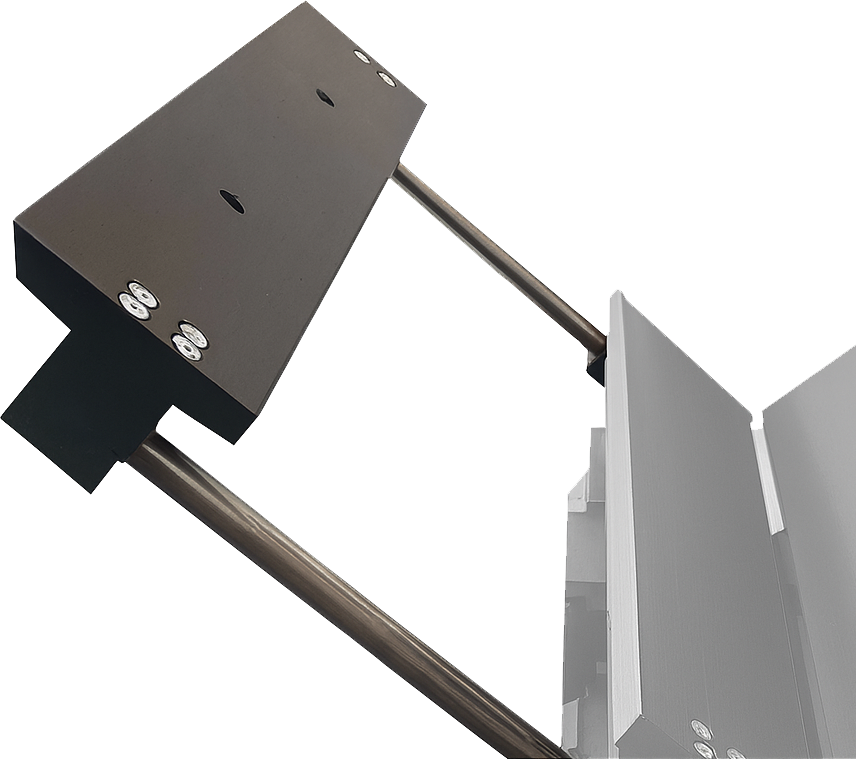

Can be adjusted with angles from 30° to 60°. Extended guides support large pieces (optional).
Automatic feed unit
Automatic feed unit with non-slip conveyor belt.

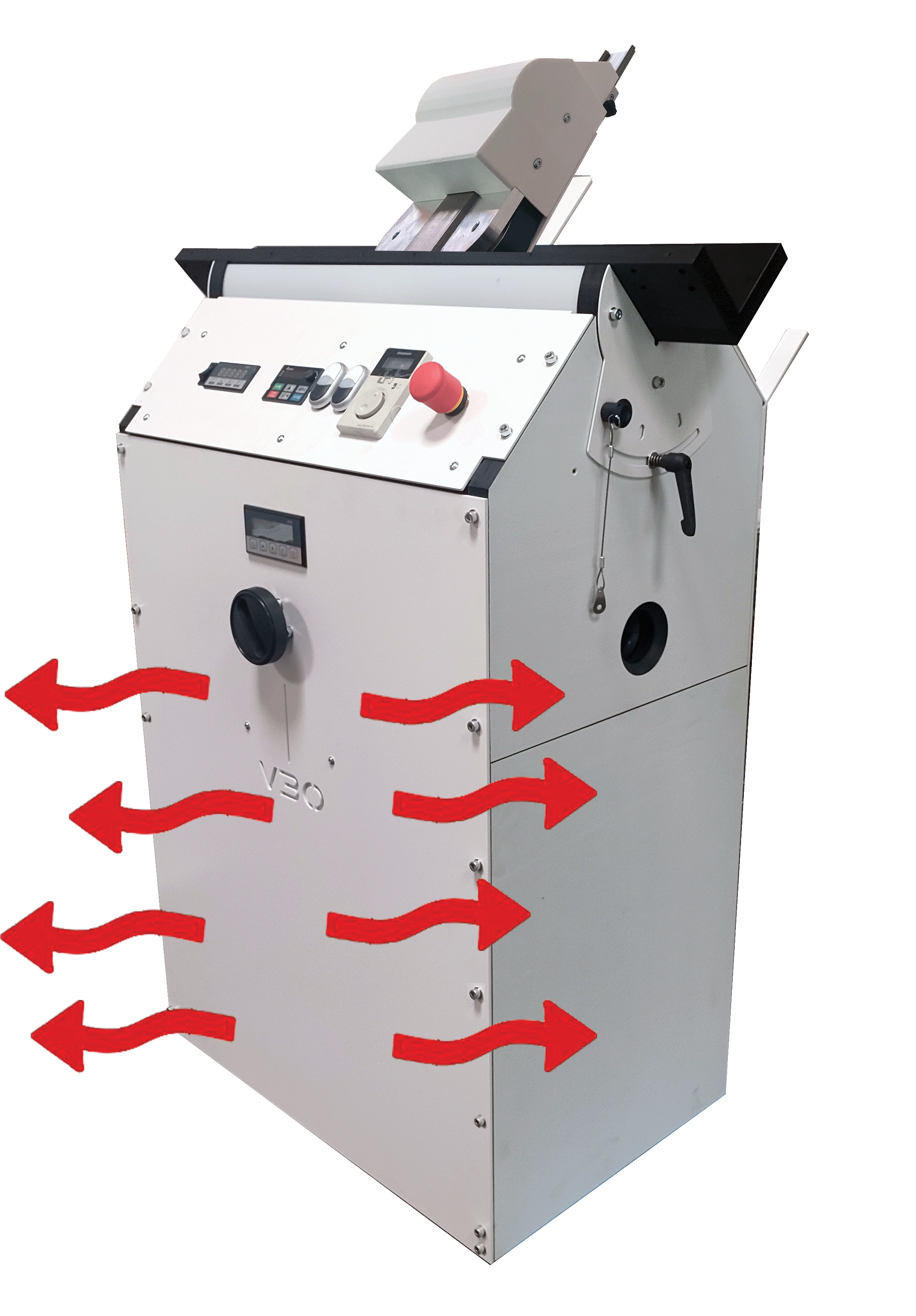

Aluminum housing
The compact design is only possible thanks to a very compact electrical concept. The entire housing is heat-dissipating aluminum with additional vents.

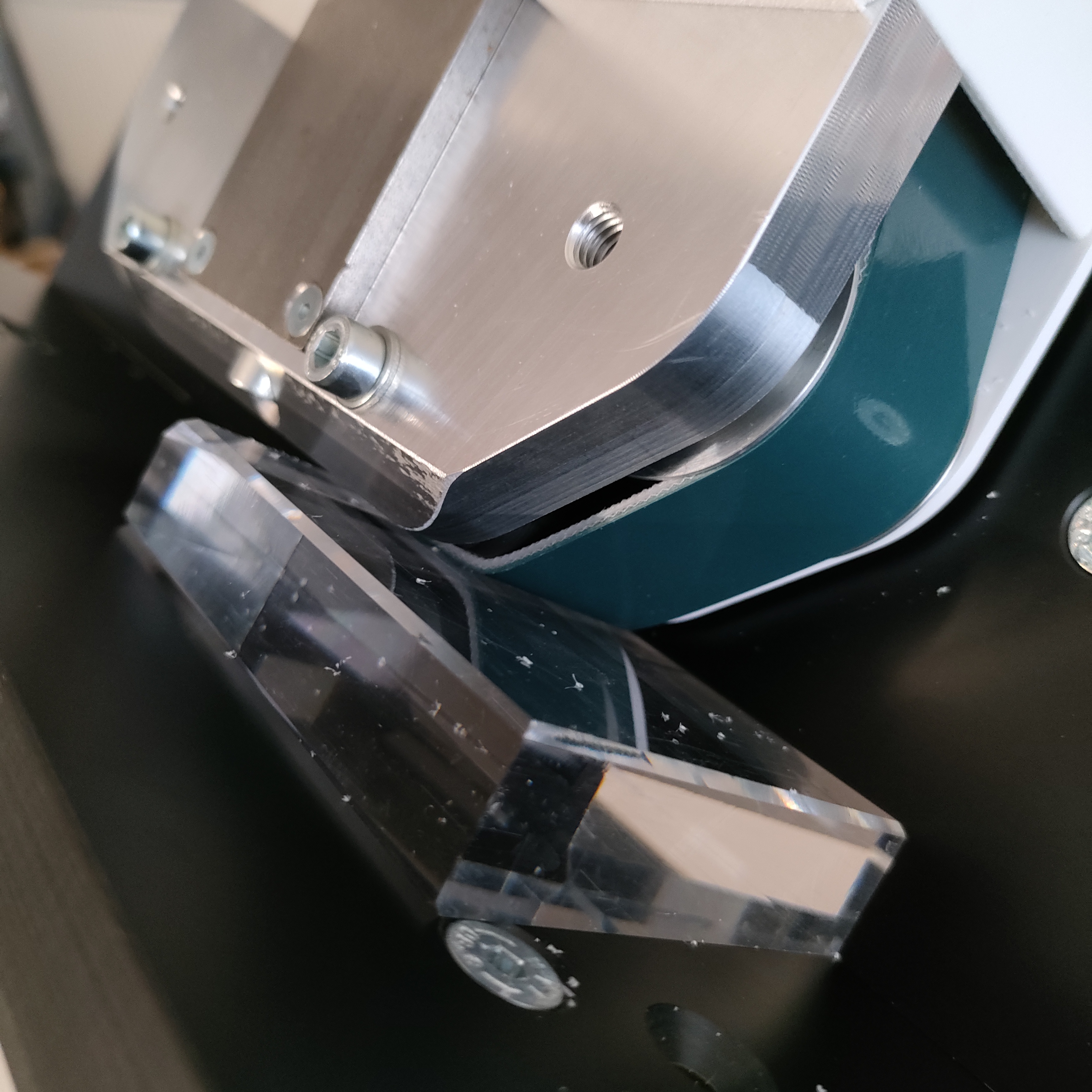

Milling / polishing tools
22 standard tools for plastics (PMMA, PC, PET-G, SAN) or composites (PMMA with aluminum or paper), producing high gloss, shiny or satin finishes. HIGH SPEED tools increase feed rate up to 200%.
Euracryl V30 Cube — Tilting edge beveler with automatic feed
Tilting beveler with automatic feed
The Euracryl V30 Cube is a compact tilting beveler for acrylic and plastics, with an automatic feed unit on a non-slip conveyor belt. Its guides adjust from 30° to 60°, and digital displays show tool speed, feed rate, swivel angle and milling depth. It bevels material from 0.08" to 3" thick, with a maximum bevel size of .45", and runs on 230 V (120 V with a step-up converter). At 198 lbs, it fits on a bench or a stand without taking over the shop floor.
Key data
At a glanceMaterial capability
Technical data
- Material thickness
- 0.08" … 3"
- Milling motor power
- 0.75 kW
- Feed motor power
- 0.3 kW
- Weight
- 198 lbs
- Feed speed
- 0.1 … 3.1 in/min
- Spindle turn speed
- 0 … 18,000 rpm
- Bevel size max.
- .45"
- Electrical connection
- 230 V / 50-60 Hz (120 V possible with step-up converter)
- Chip extraction diameter
- 32 mm
- Total power
- 1.15 kW
- Tool included / edges
- Standard gloss / 2
- Dimensions
- 26" W x 50" H x 18" D
Best for
- Chamfers and bevels from 30° to 60°
- Glue-ready and glossy bevels on display parts
- A dedicated beveling station beside a straight-edge polisher
Materials
PMMA, PC, PETG, SAN and composites such as PMMA with aluminum or paper, from 0.08" to 3" thick.
Why the Euracryl V30 Cube
- Digital displays for speed, feed, angle and depth
- 22 standard tools for high gloss, shiny or satin finishes
- HIGH SPEED tools increase feed rate up to 200%
- Optional extended guides for large pieces
Common applications
Display and POS corners · Signage and lettering · Furniture and fixture parts. See edge polishing by application
Compare
- Consider the Euracryl V20s Cube if you need a lighter (48.5 lbs) beveler you can move around the shop.
- Consider the Bermaq AM2-i if you need straight 90° polishing on long edges as well as bevels.
- Not sure? Match a machine to your parts in the Machine Finder.
Euracryl V30 Cube FAQ
+What bevel angles does the V30 Cube cover?
The guides adjust from 30° to 60°, with a maximum bevel size of .45".
+What thickness can the V30 Cube handle?
0.08" to 3".
+Can the V30 Cube run on 120 V?
It's a 230 V / 50-60 Hz machine; 120 V is possible with a step-up converter.
