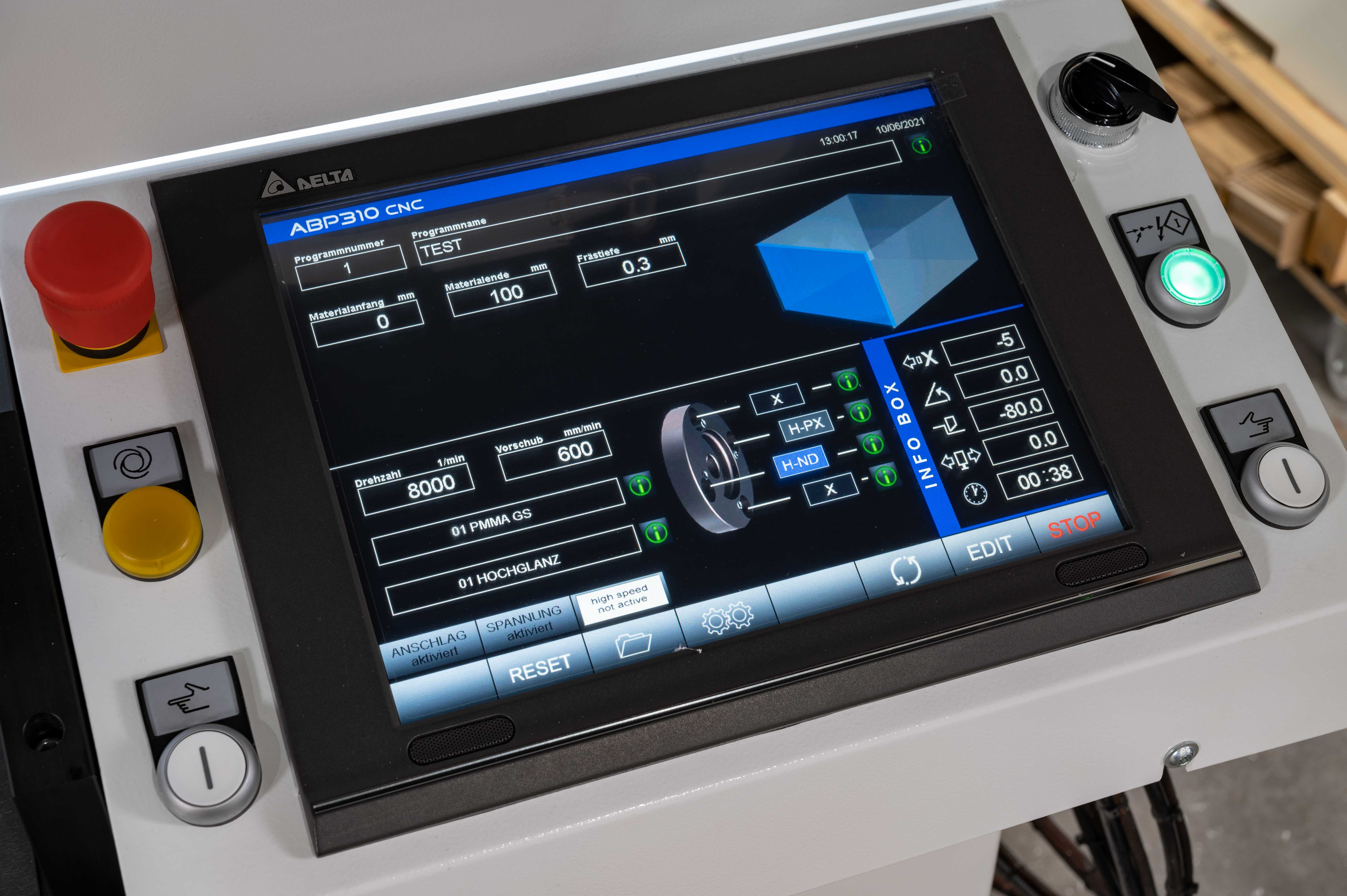

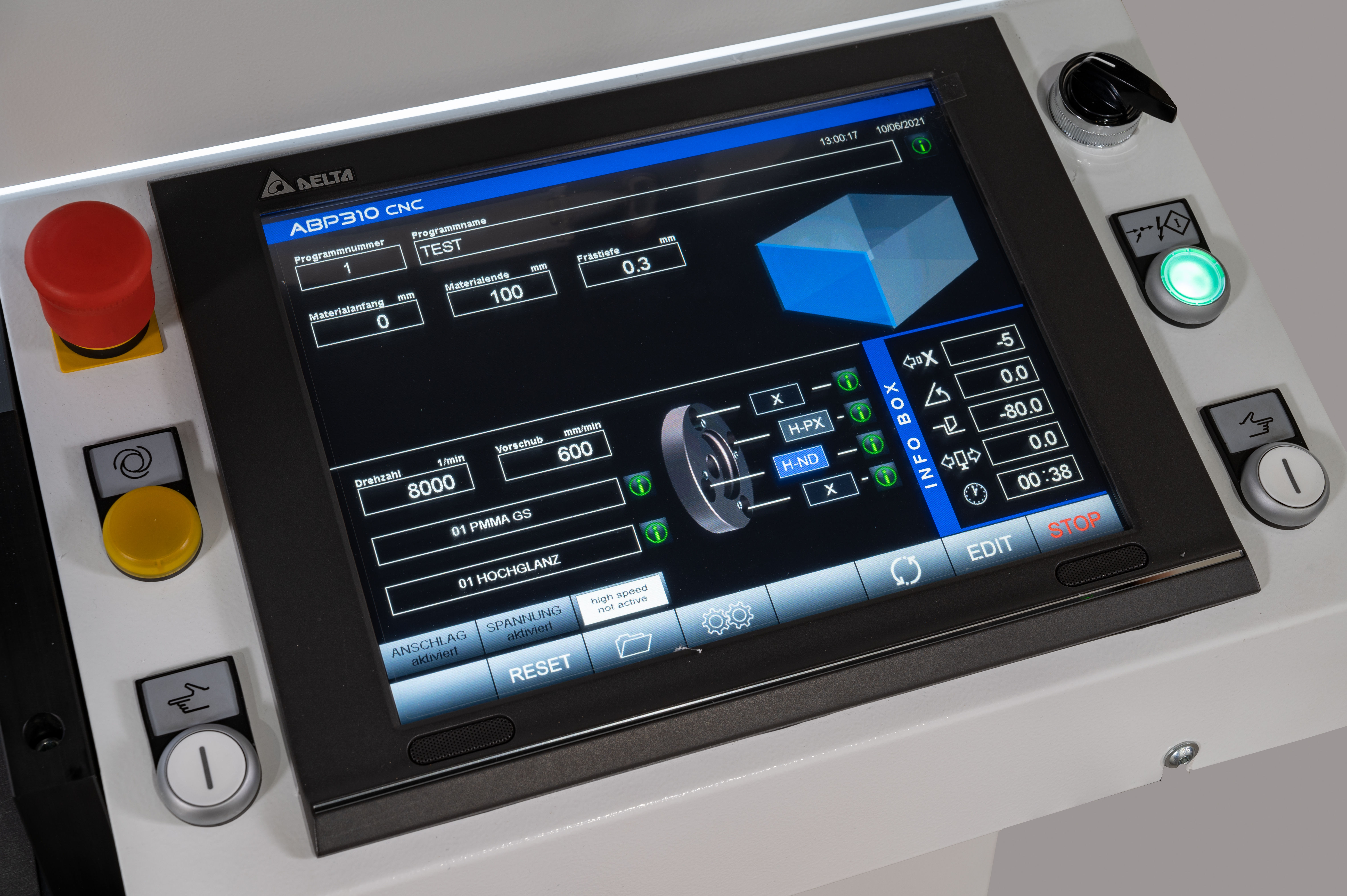

CNC control
CNC control with touchscreen (Euracryl Polisher). Material library with recommendations for cutting values and tool selection, plus an extensive database of tool properties, material types and finish options.

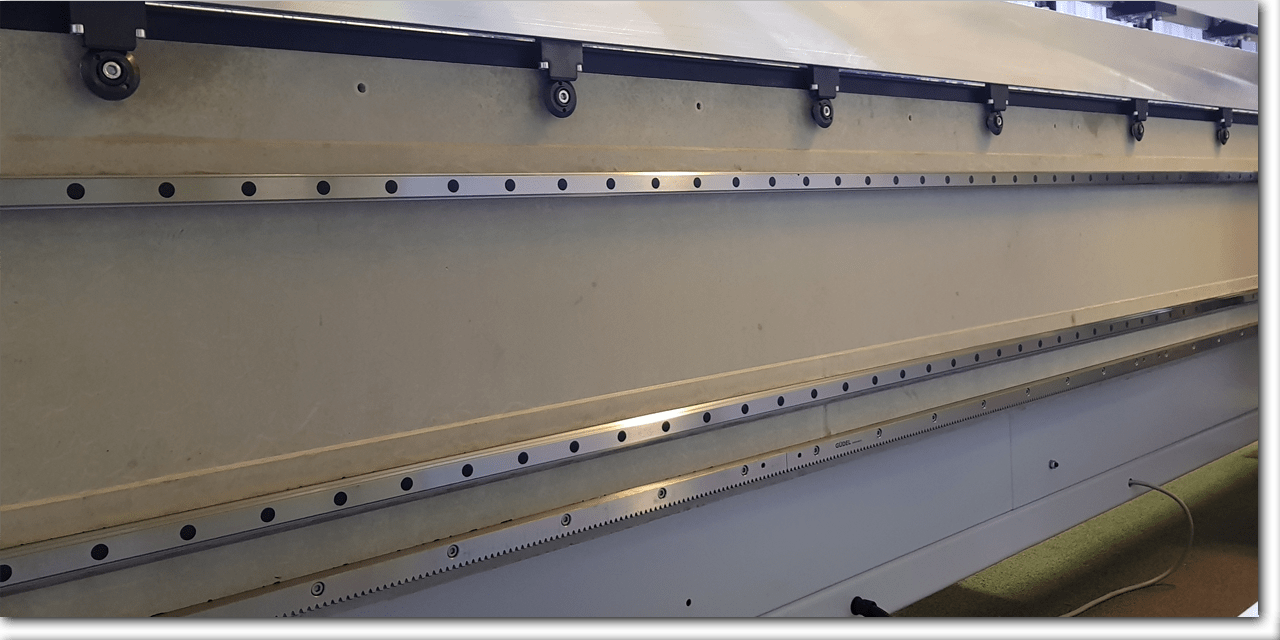

UHPC machine core
The core of the machine is made of UHPC (technical concrete), giving extreme rigidity and absorbing vibrations up to 95%. The front reference bar has anchor points that keep it stably in place and can be readjusted for a constant depth of cut.

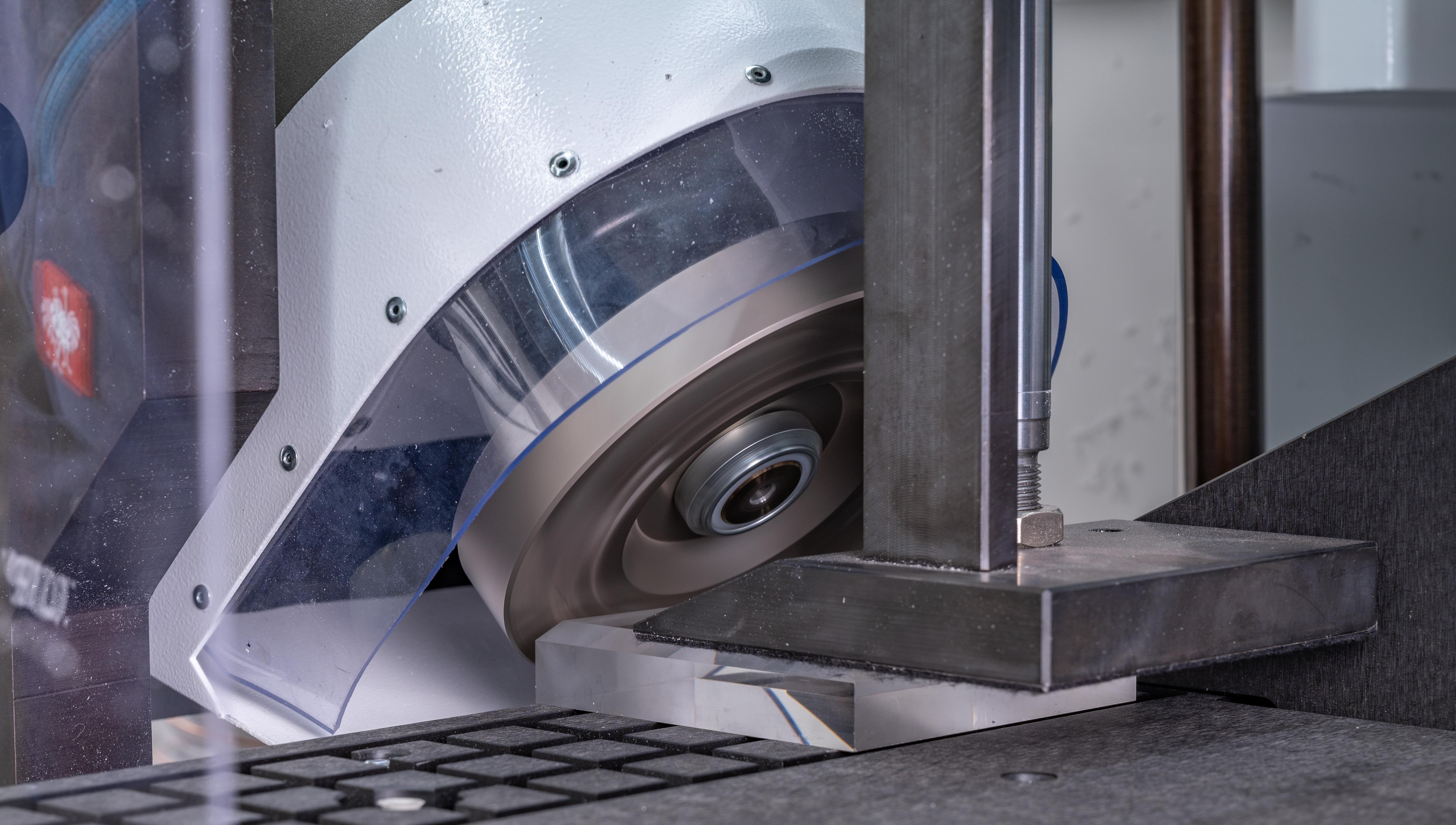

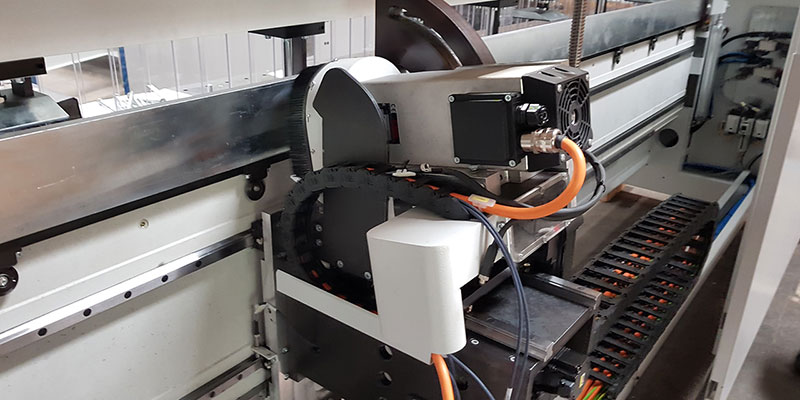

Milling / polishing unit
CNC-controlled unit with automatic adjustment of the tilting value, milling depth and clamping bridge position. Tilting ranges from 0° to +63°, with anti-streaking system.

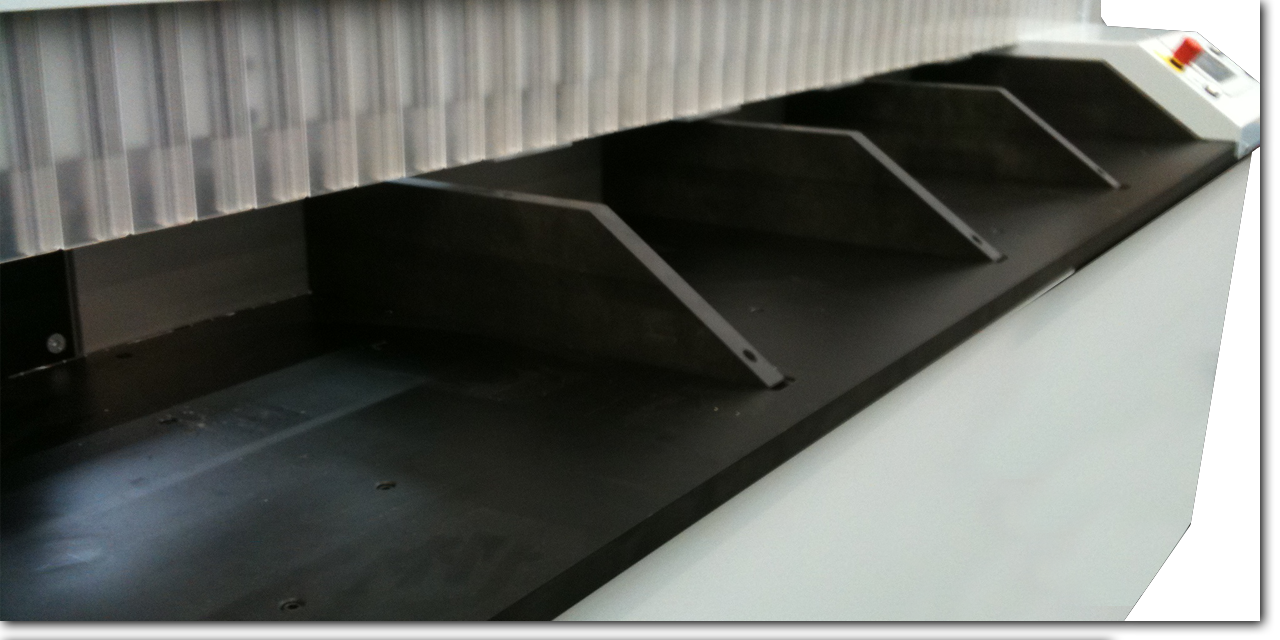

Multi-function table
The table design reduces streaking on the milled and polished workpiece surface, with anchor points for additional lateral stops or custom devices.

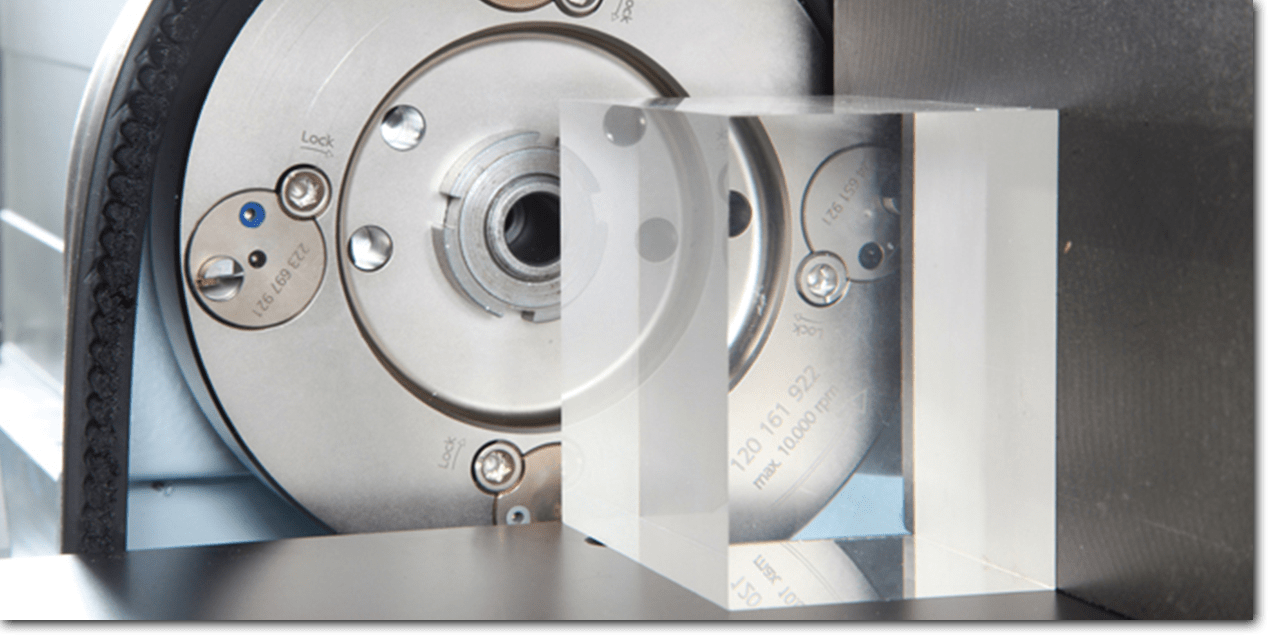

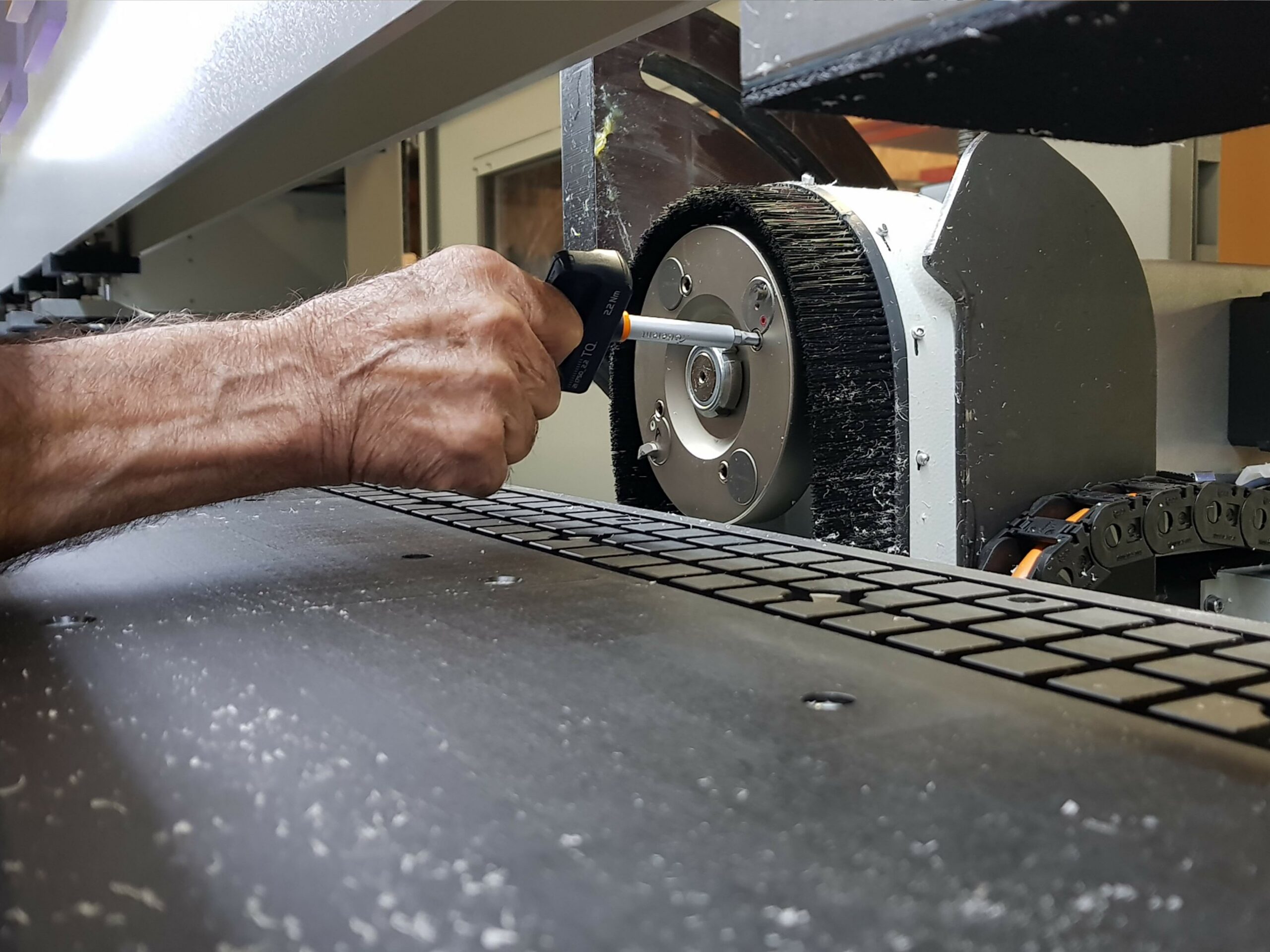

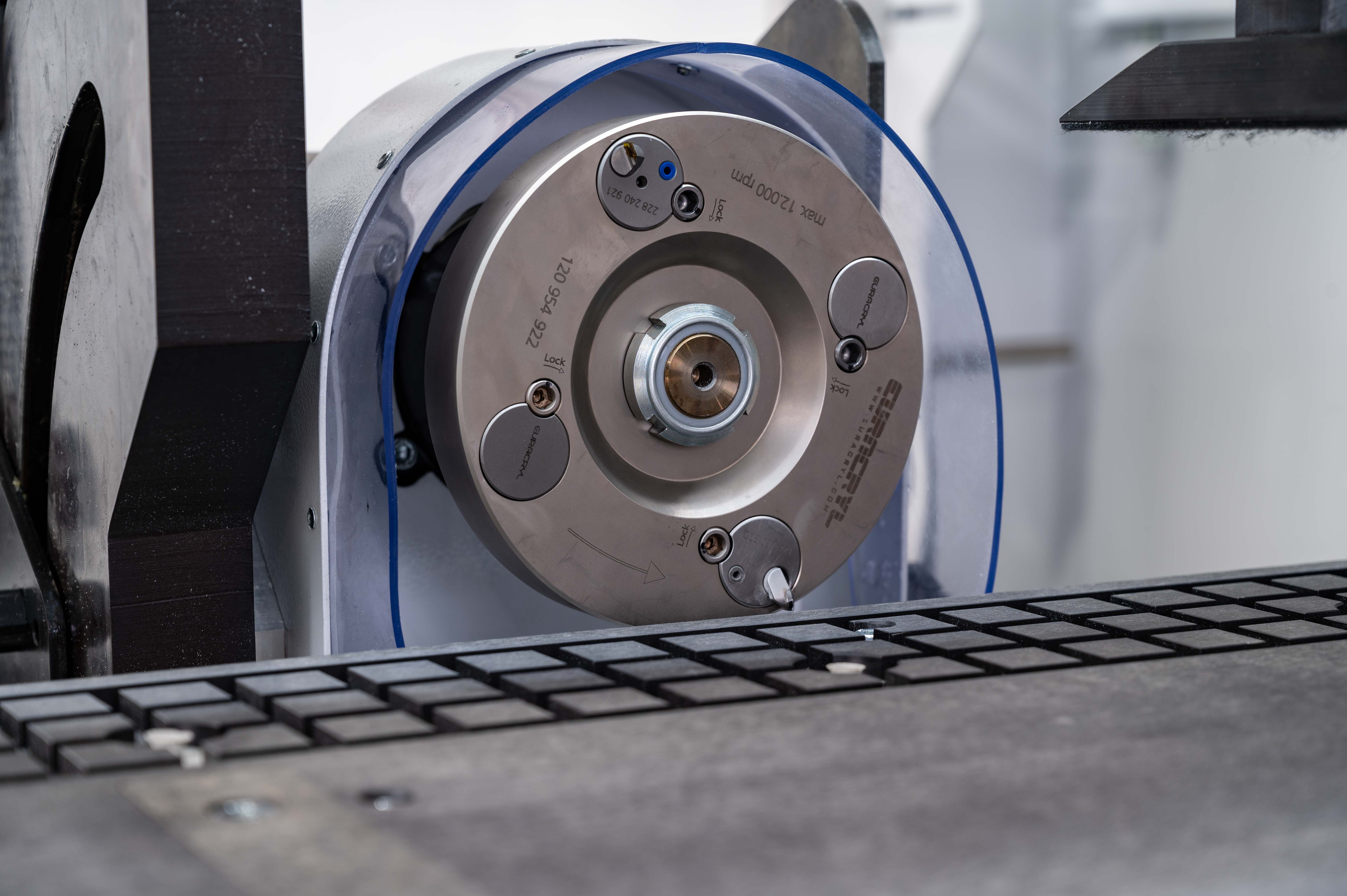

Tools
Delivered with a EURACRYL ES milling / polishing head for 4 cutters. Produces glossy or satin surfaces on PMMA, PC, PETG, SAN and mixed materials with paper or aluminum.

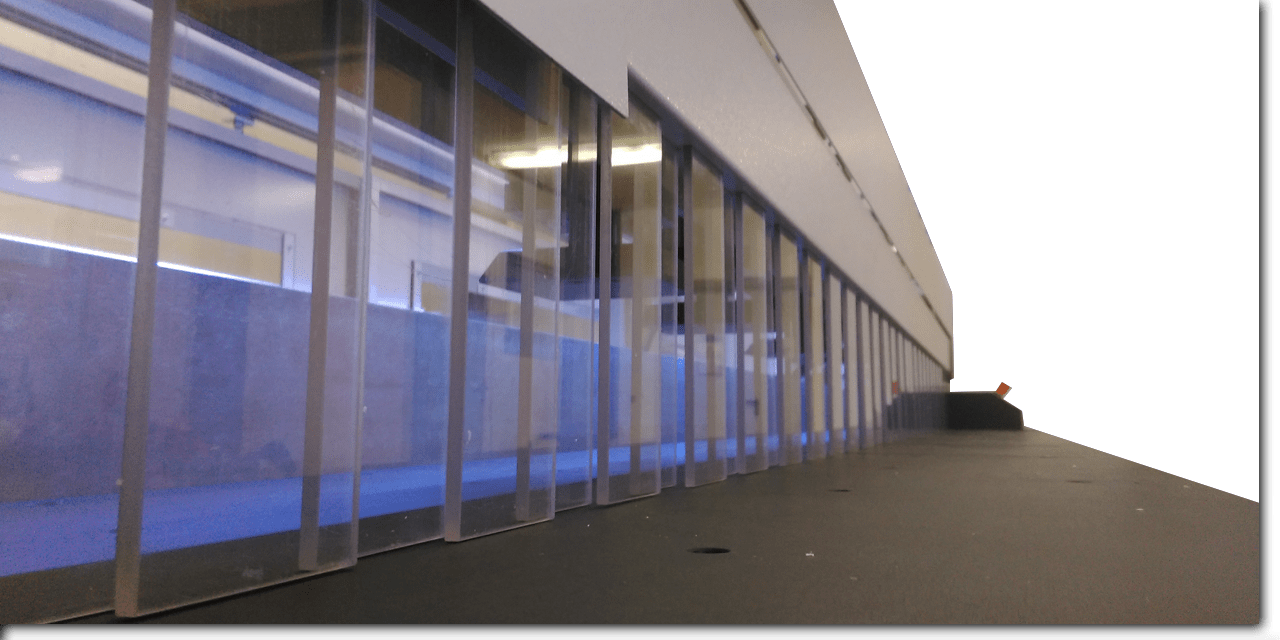

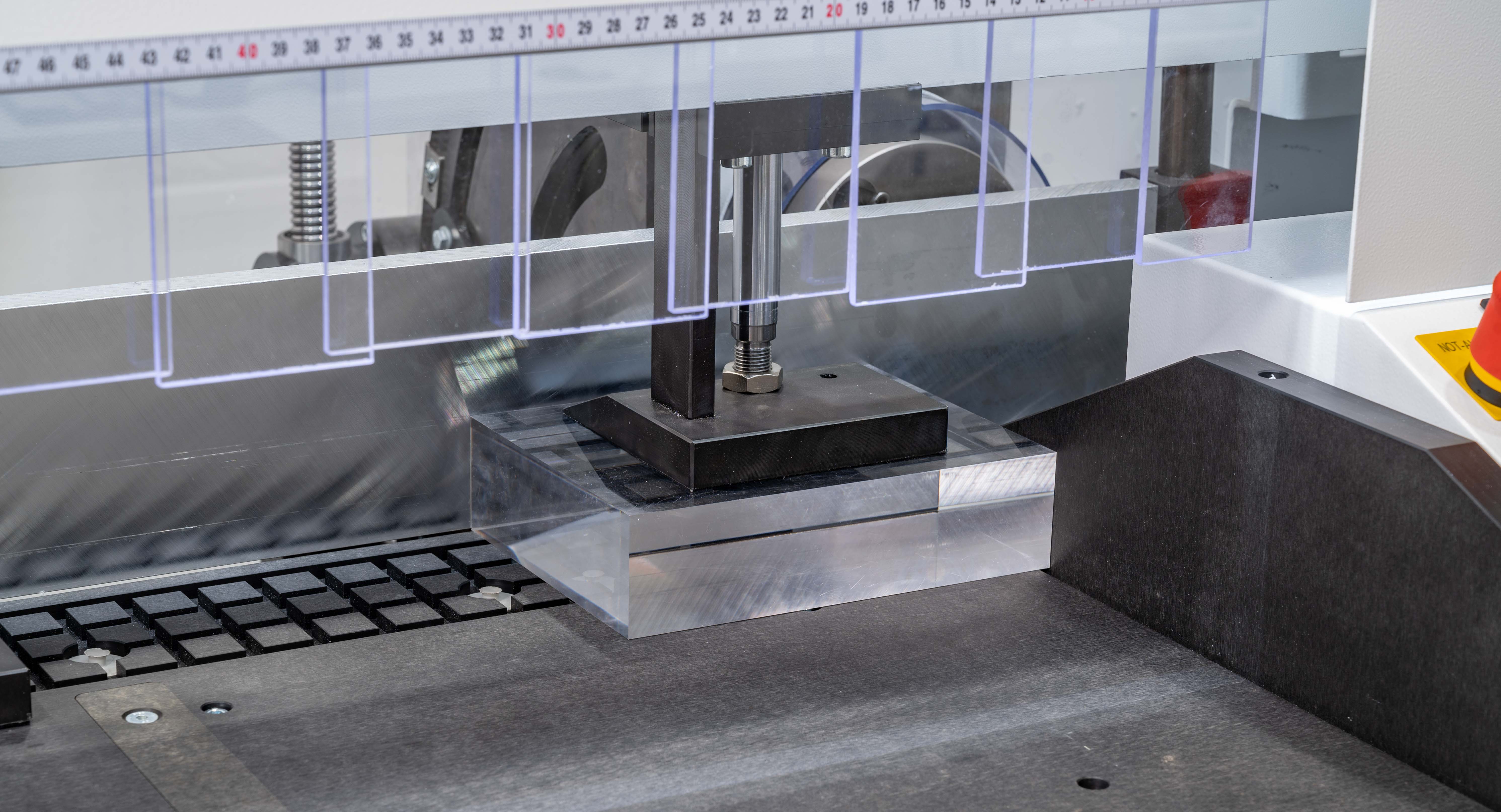

Work area
The work area is illuminated and protected by a transparent safety curtain.

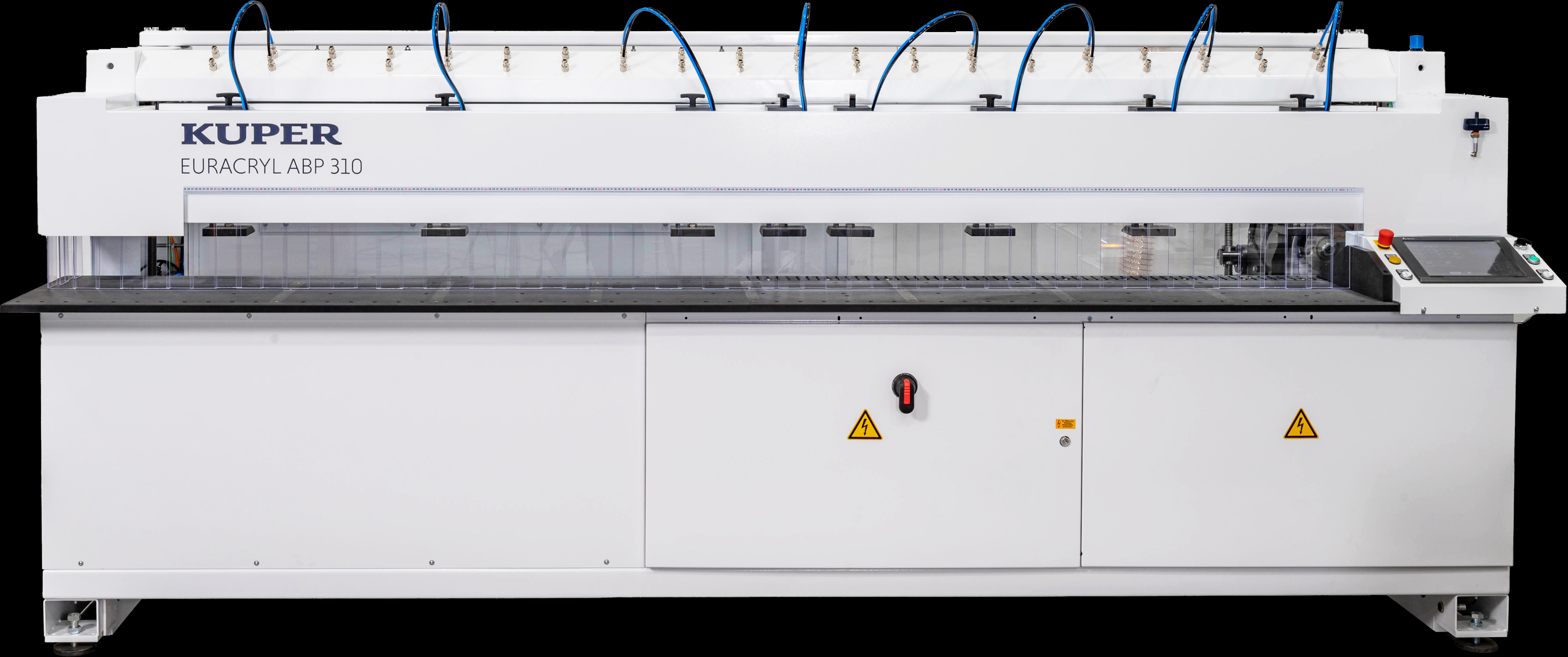

Kuper Euracryl ABP 310 — Large-format CNC edge polishing machine
Large format fully automatic CNC edge polishing
The Kuper Euracryl ABP 310 is a fully automatic, large-format CNC edge polishing machine for high-volume production. It handles parts from 20" to 122" (up to 244" with overhang) and 0.08" to 4.72" thick, with a CNC tilting milling/polishing unit from -3° to +63°. Its UHPC technical-concrete core absorbs up to 95% of vibration, and the CNC sets tilt, milling depth and clamping-bridge position automatically. It finishes PMMA, PC, PETG, SAN and mixed materials such as PMMA with paper or aluminum.
Key data
At a glanceMaterial capability
The machine at work
Technical data
- Thickness of piece at 0°
- 0.08 … 4.72"
- Thickness of piece at 45°
- 0.08 … 3.35"
- Workpiece length
- 20 … 122" (overhang up to 244")
- Max. length turning piece
- 244"
- Tilt range
- -3° … +63°
- Milling spindle power
- 4.5 kW
- Power of feed motor
- 1.2 kW
- No. of clamps
- 6 included (max. 20)
- No. of lateral stops
- 1 (8)
- Ionizer
- Not included
- Vacuum table system
- Included
- Machine length
- 155"
- Machine width
- 148"
- Machine height
- 64"
- Work table height
- 36.5"
- Weight
- 4,188 lbs
- Feed speed
- 3.94 … 196.85 in/min
- Return speed
- 1,968.5 in/min
- Cutting speed
- 6,000 … 12,000 rpm
- Milling depth
- 0.002 … 0.059"
- Milling depth at 45°
- 0.002 … 0.197" per step
- Air pressure
- 6 bar
- Voltage / frequency
- 230 VAC, 208, 3 Ph // 380 VAC 3Ph+N // 50/60 Hz
- Vacuum interface diameter
- 80 mm
- Total power
- 5.0 kW
Best for
- High-volume production on long panels
- Shops that need a vacuum table and up to 20 clamps
- Repeatable gloss or satin finishes across large batches
Materials
PMMA, PC, PETG, SAN, composites and mixed materials such as PMMA with paper or aluminum, from 0.08" to 4.72" at 0° and up to 3.35" at 45°.
Why the Kuper Euracryl ABP 310
- UHPC machine core for rigidity and vibration damping
- CNC control with material library and tool database
- Anti-streaking system and multi-function table
- Illuminated work area behind a transparent safety curtain
Common applications
Architecture and interior panels · Large displays and POS · Laminated and mixed-material parts. See edge polishing by application
Compare
- Consider the Bermaq AMI-C if your longest parts are 122" or less and you want a narrower footprint (48" wide vs 148").
- Consider the Bermaq AM2-i if your parts are under 55" and volume doesn't justify a full CNC line.
- Not sure? Match a machine to your parts in the Machine Finder.
Kuper Euracryl ABP 310 FAQ
+What is the maximum part length on the ABP 310?
122" standard working length, with overhang up to 244" for turning pieces.
+What tilt range does the ABP 310 have?
-3° to +63°, set automatically by the CNC.
+Which materials can the ABP 310 polish?
PMMA, PC, PETG, SAN, composites and mixed materials such as PMMA with paper or aluminum.
+What is included with the ABP 310?
A Euracryl ES milling/polishing head for 4 cutters, 6 clamps (max. 20), 1 lateral stop (max. 8) and a vacuum table system. An ionizer is not included.
