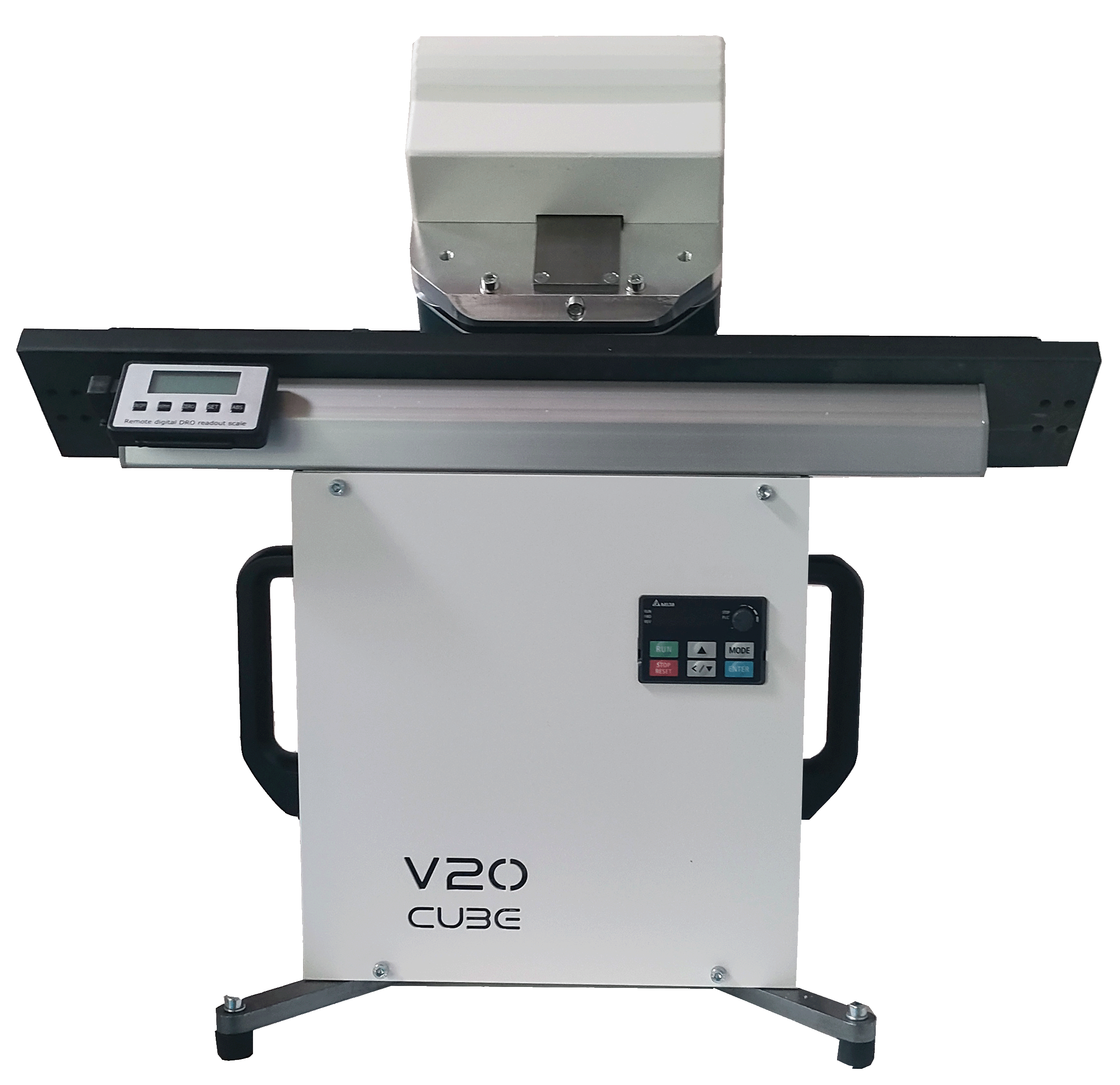

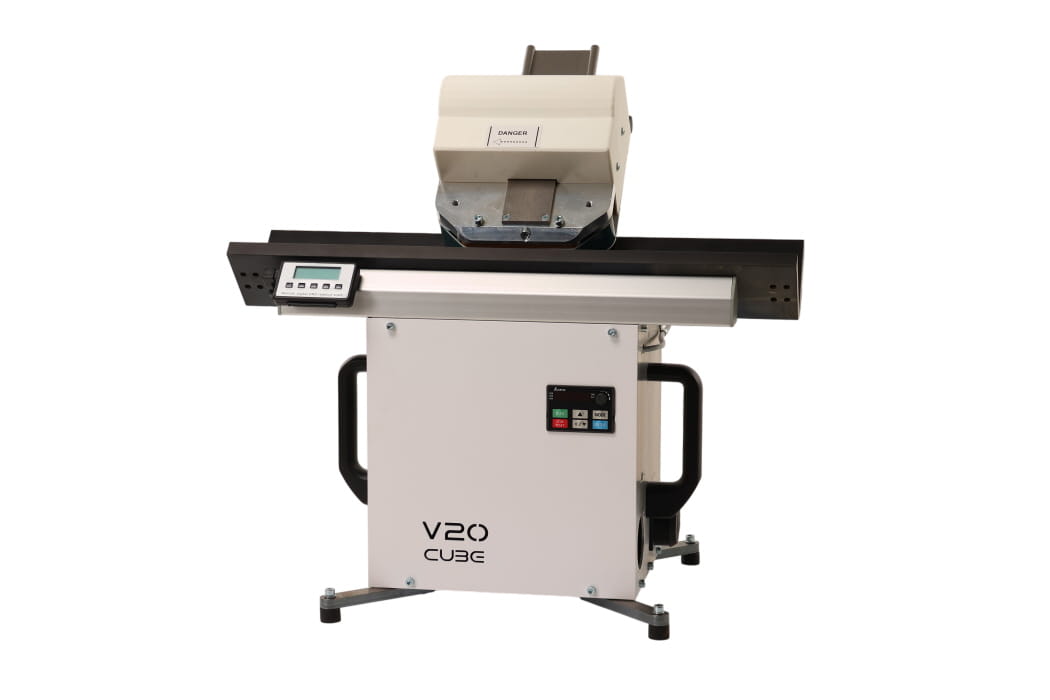

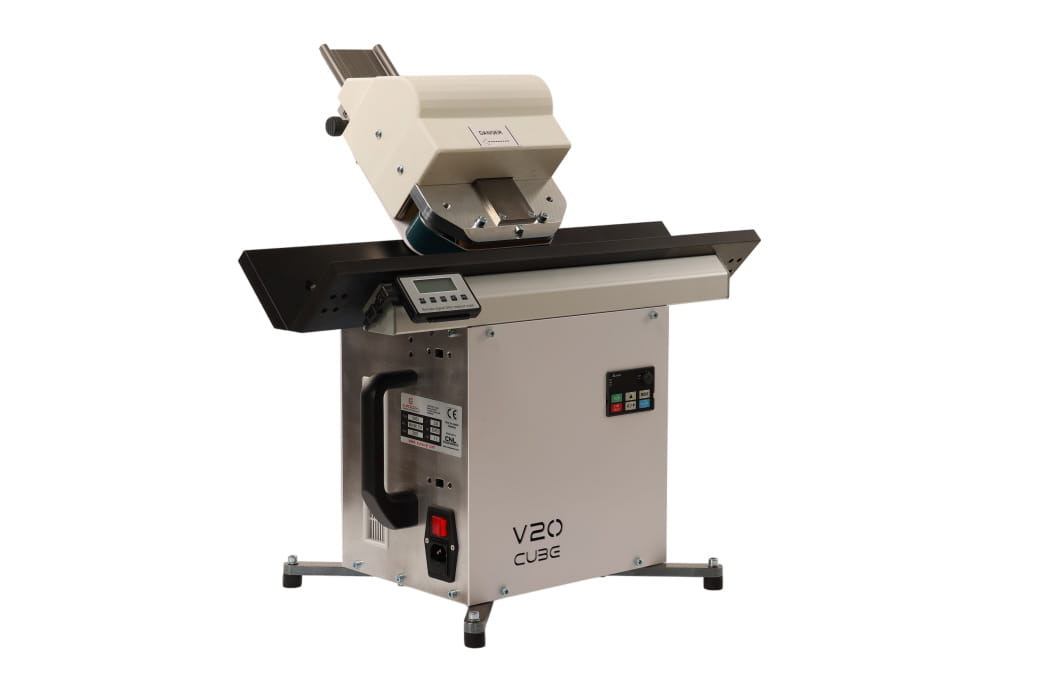

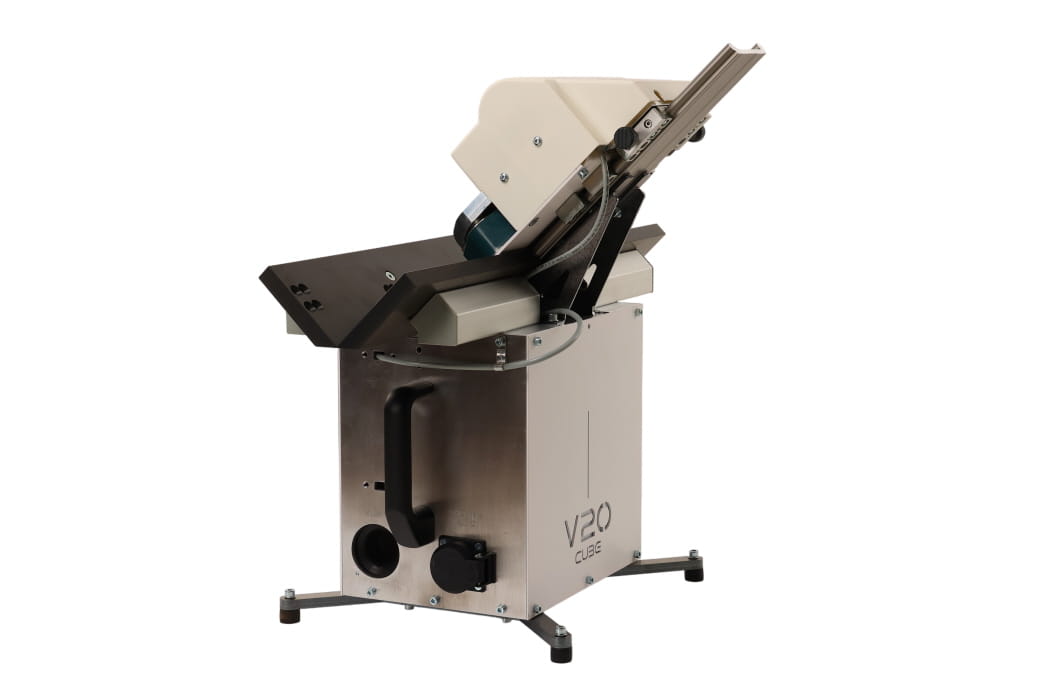

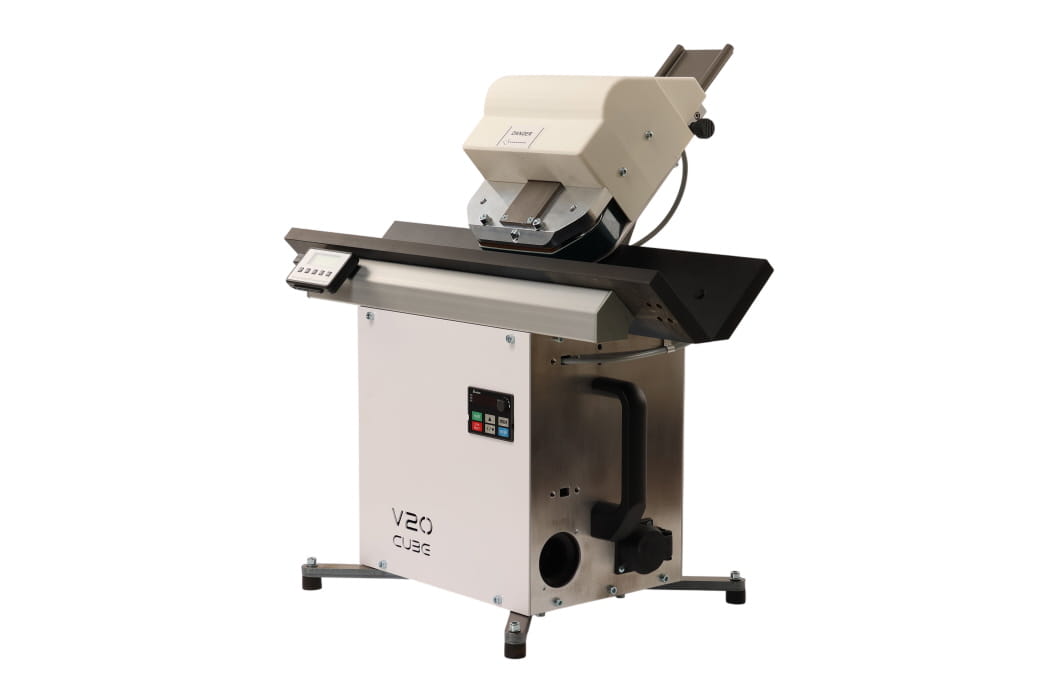

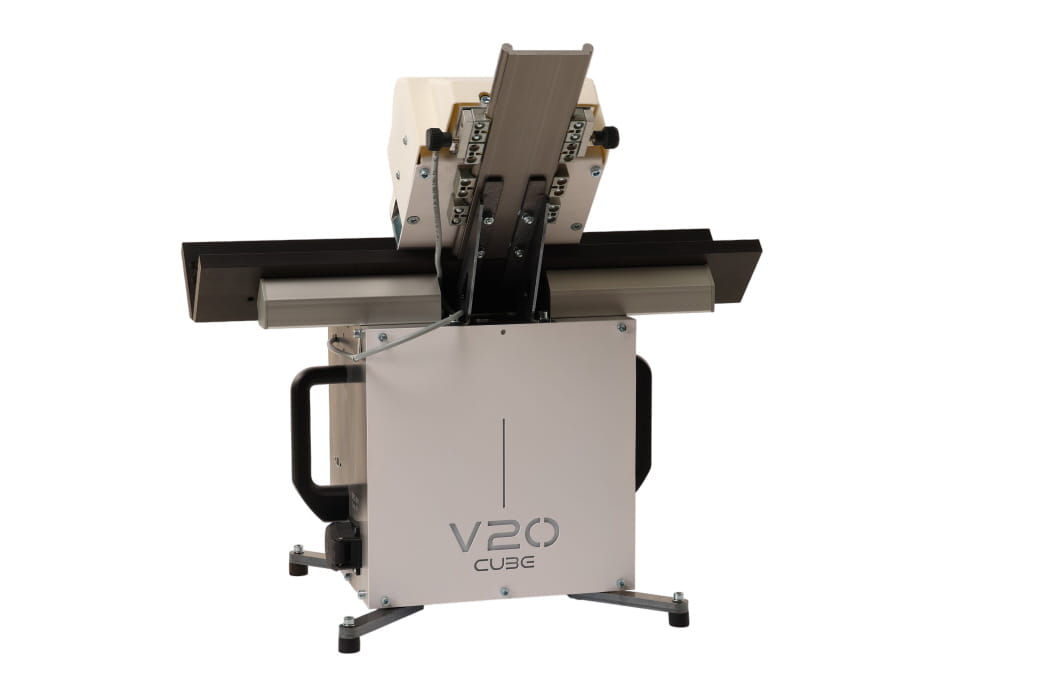

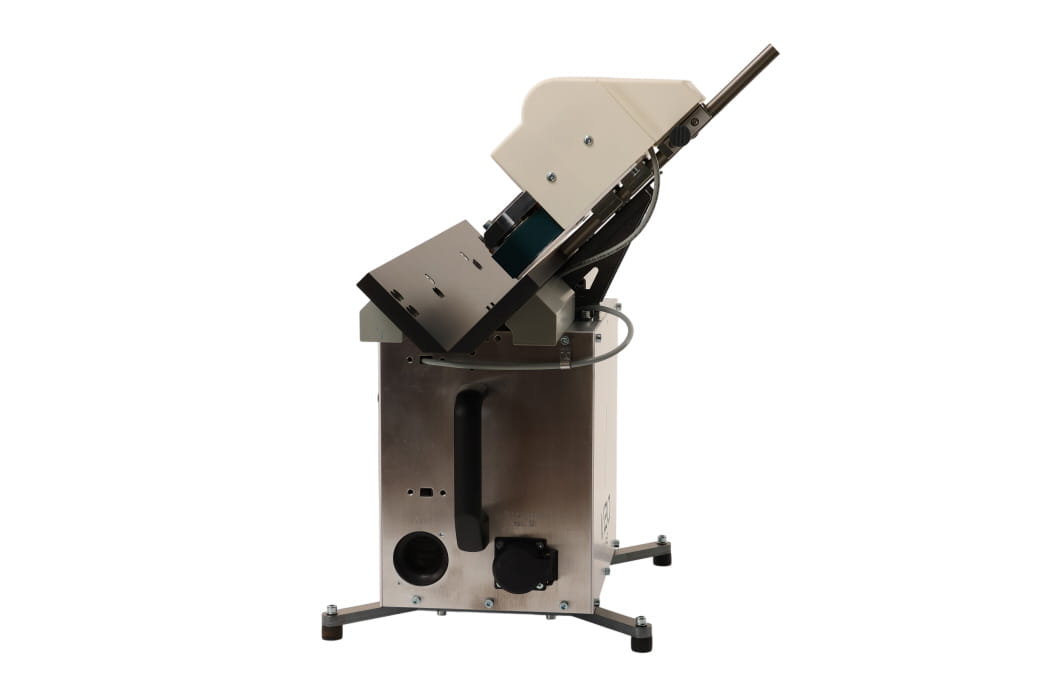

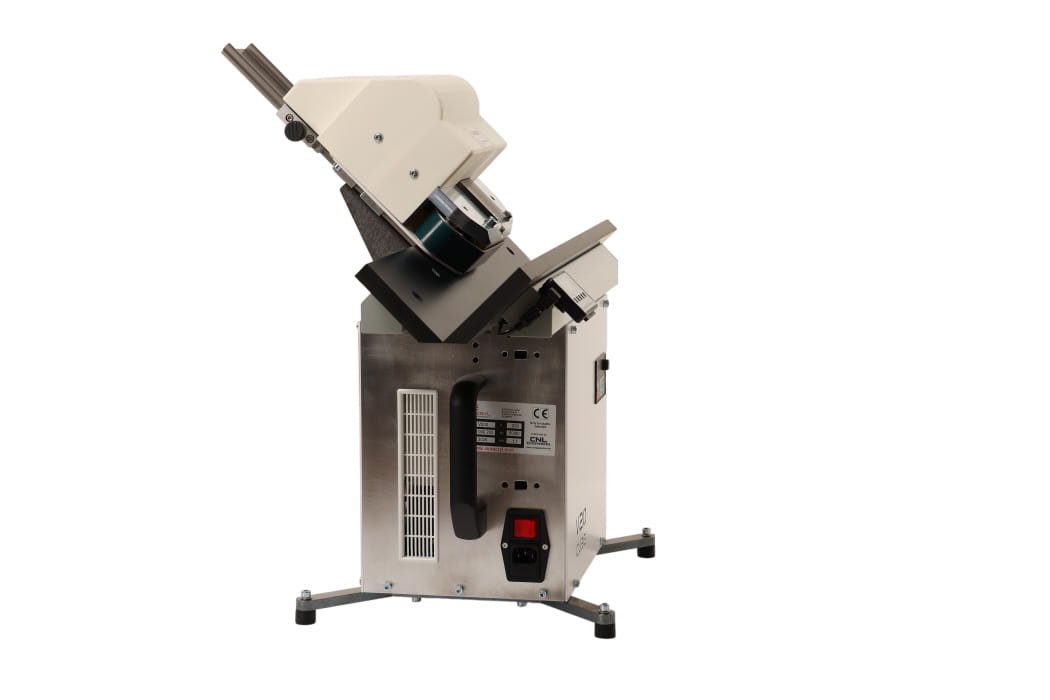

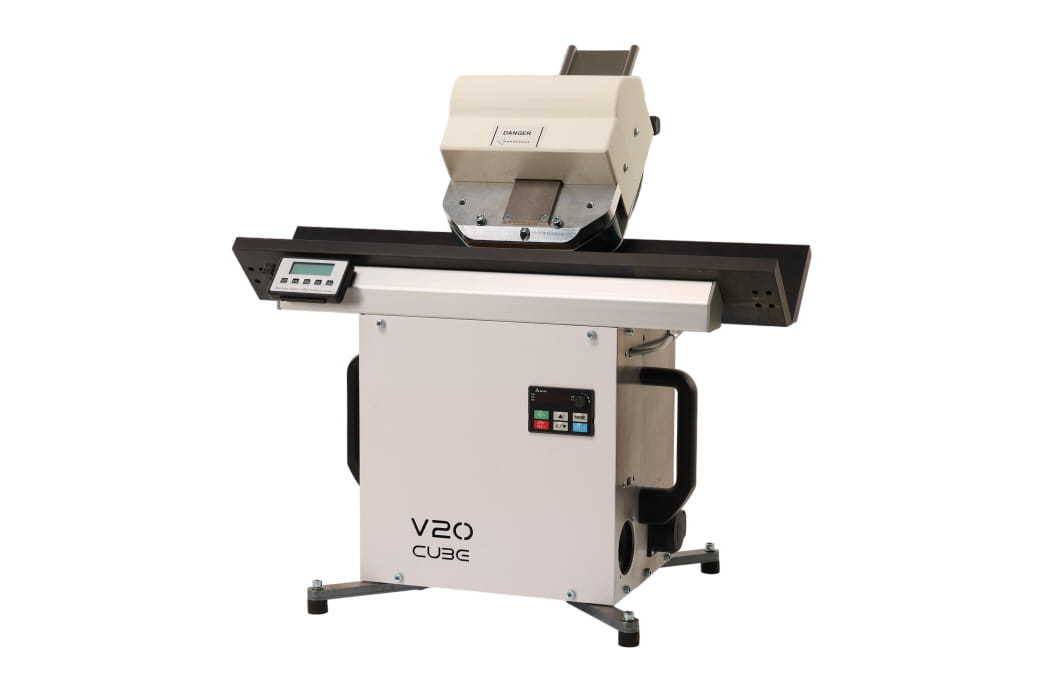

Euracryl V20s Cube — Portable acrylic beveler

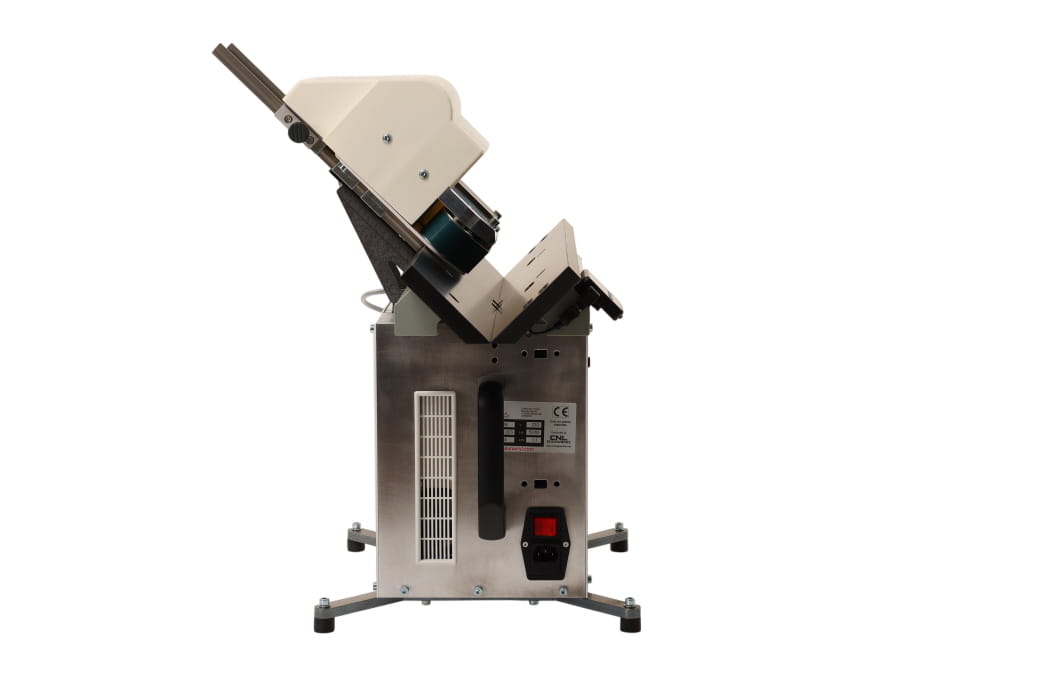

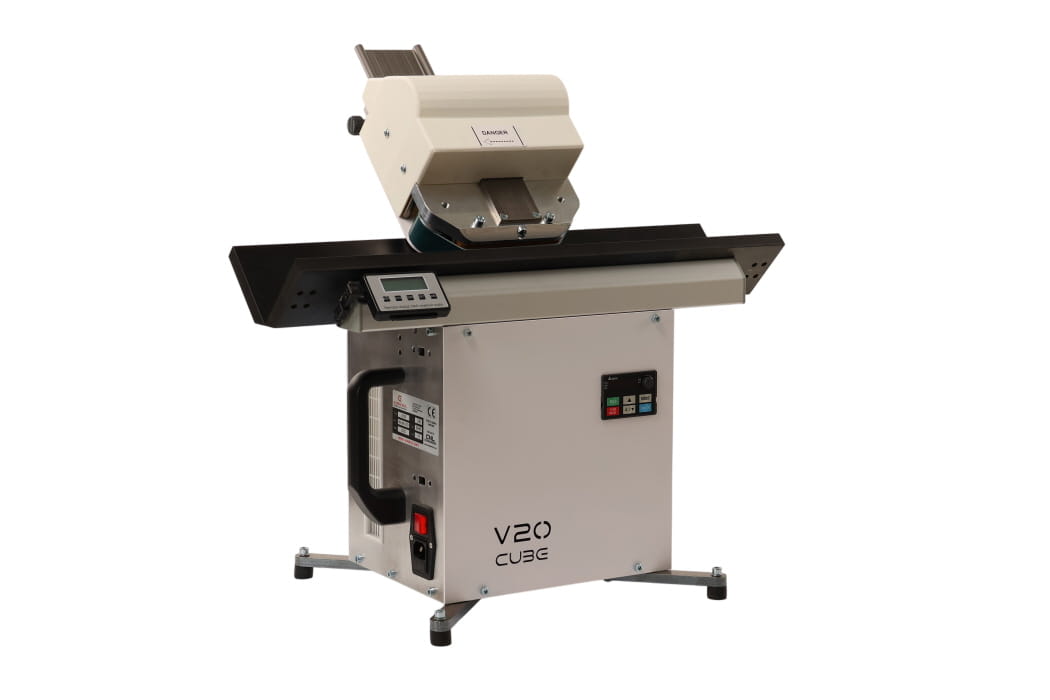

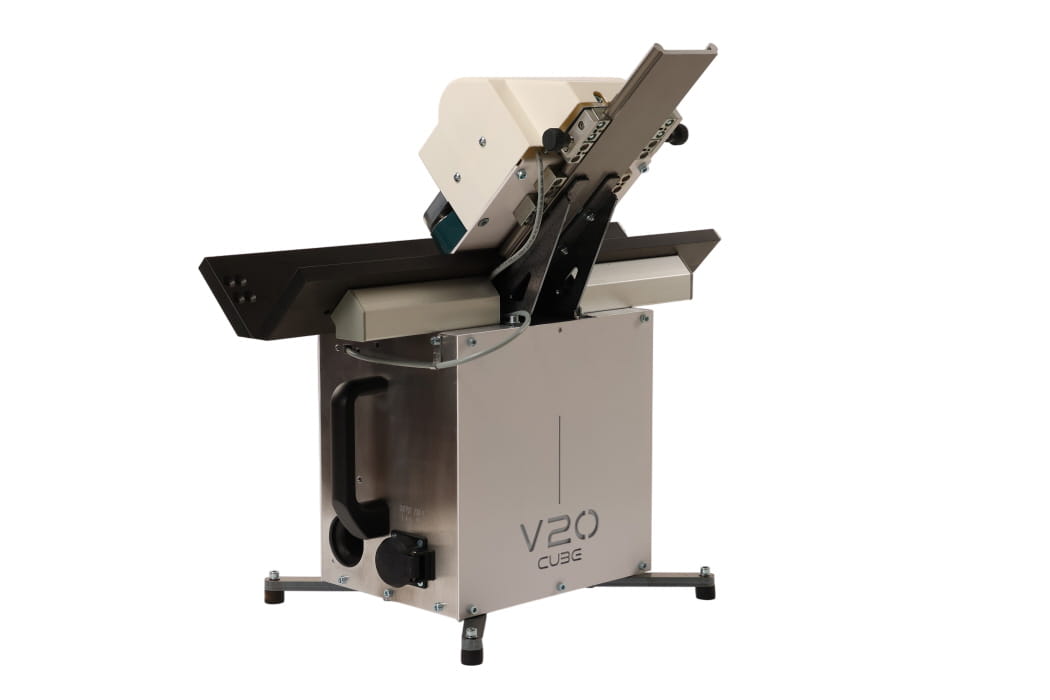

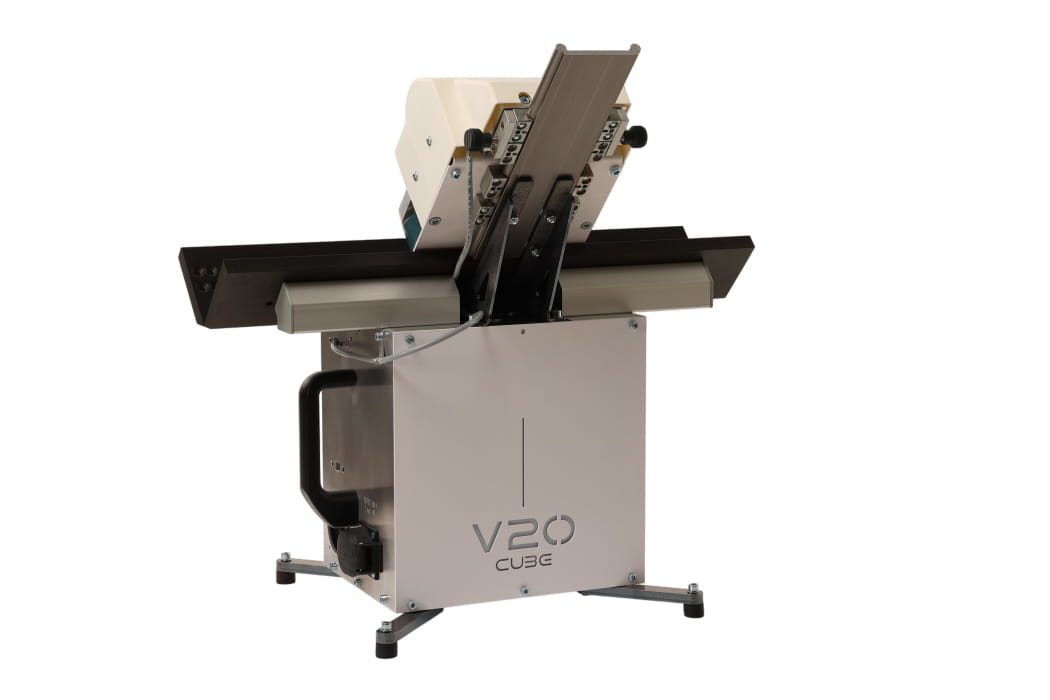

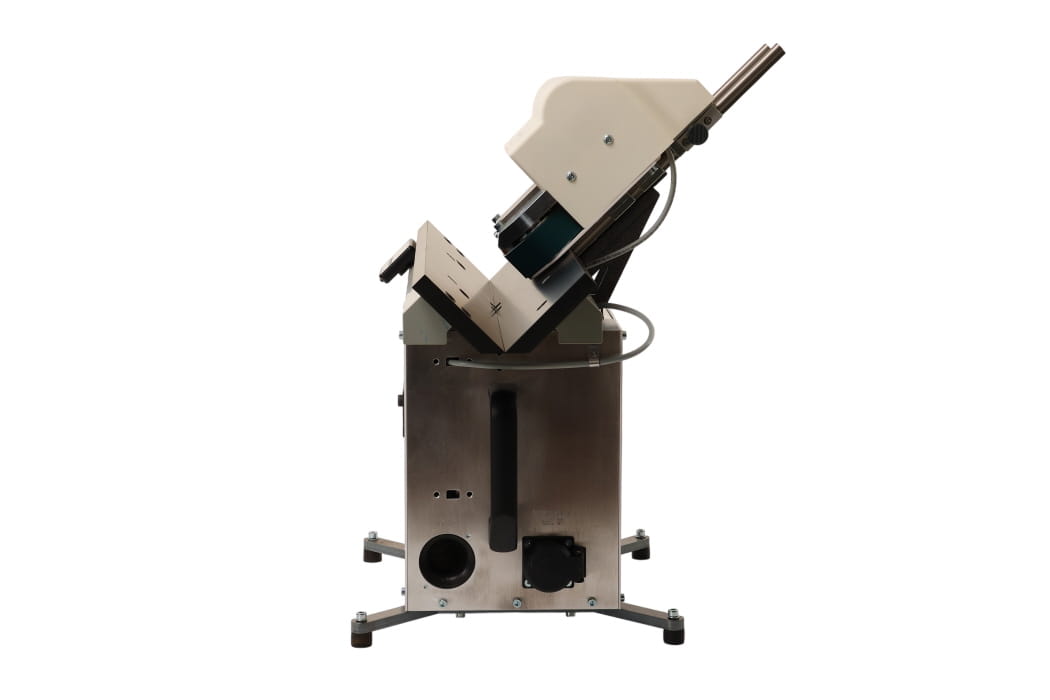

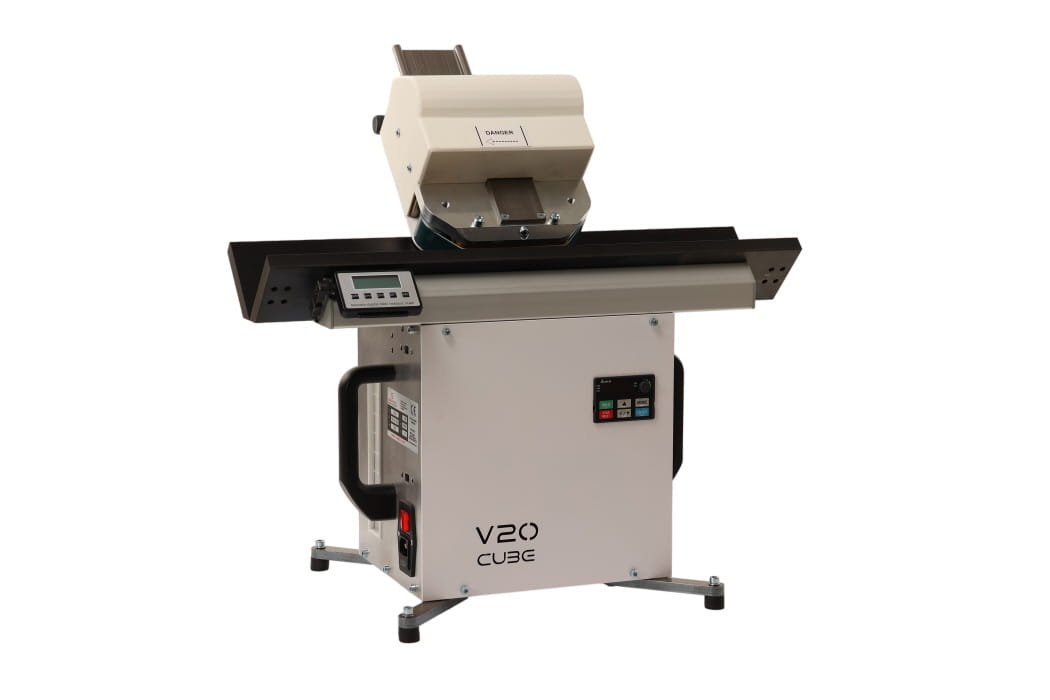

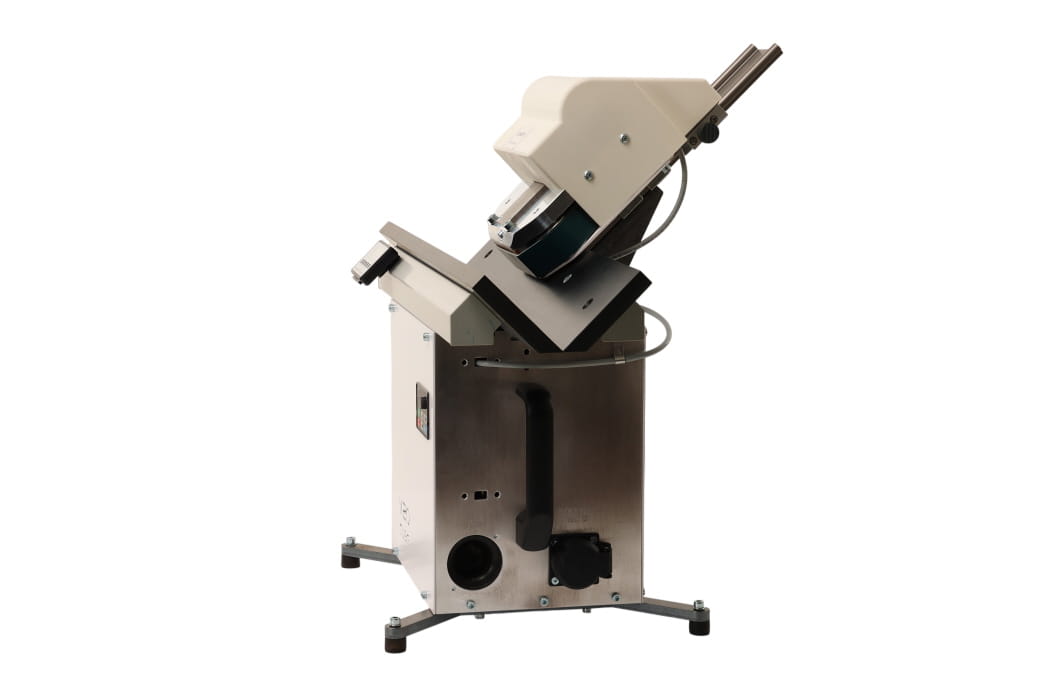

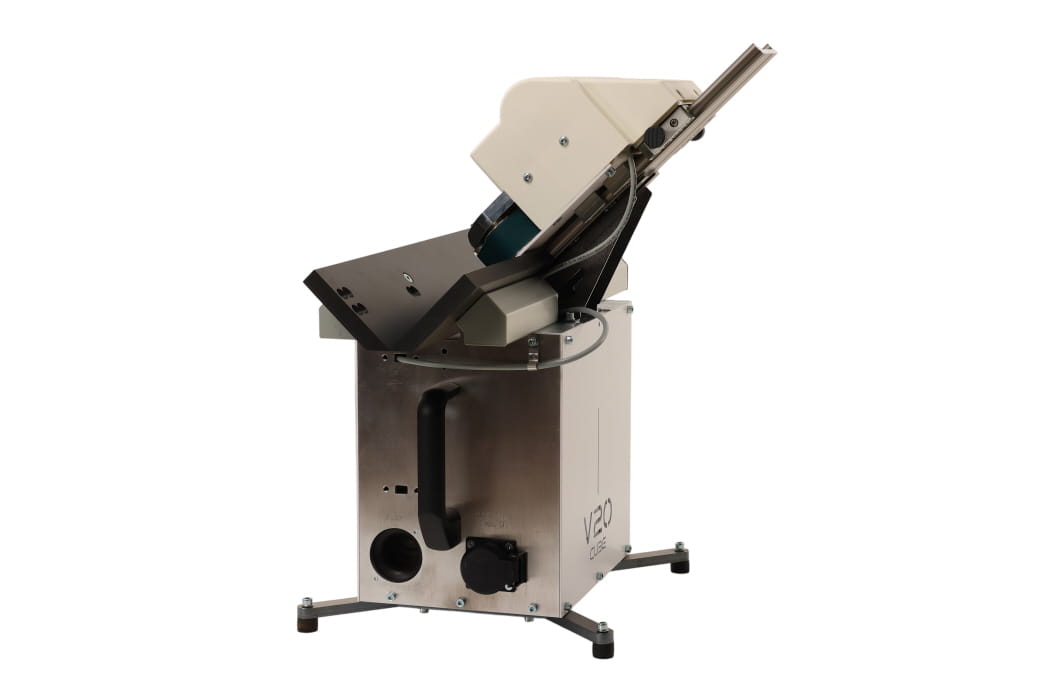

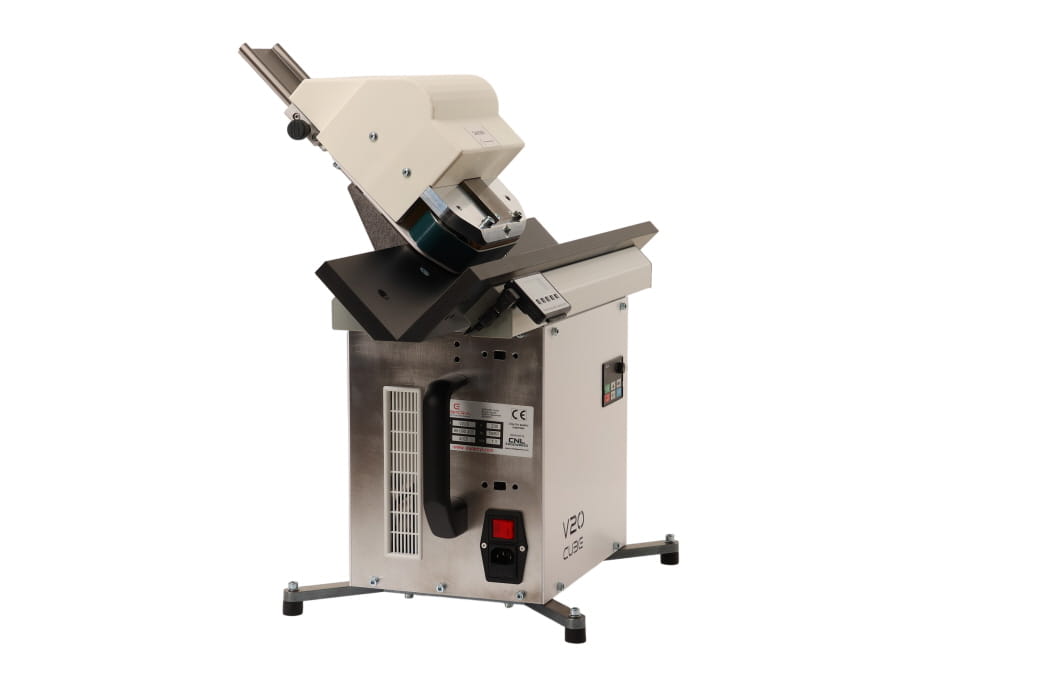

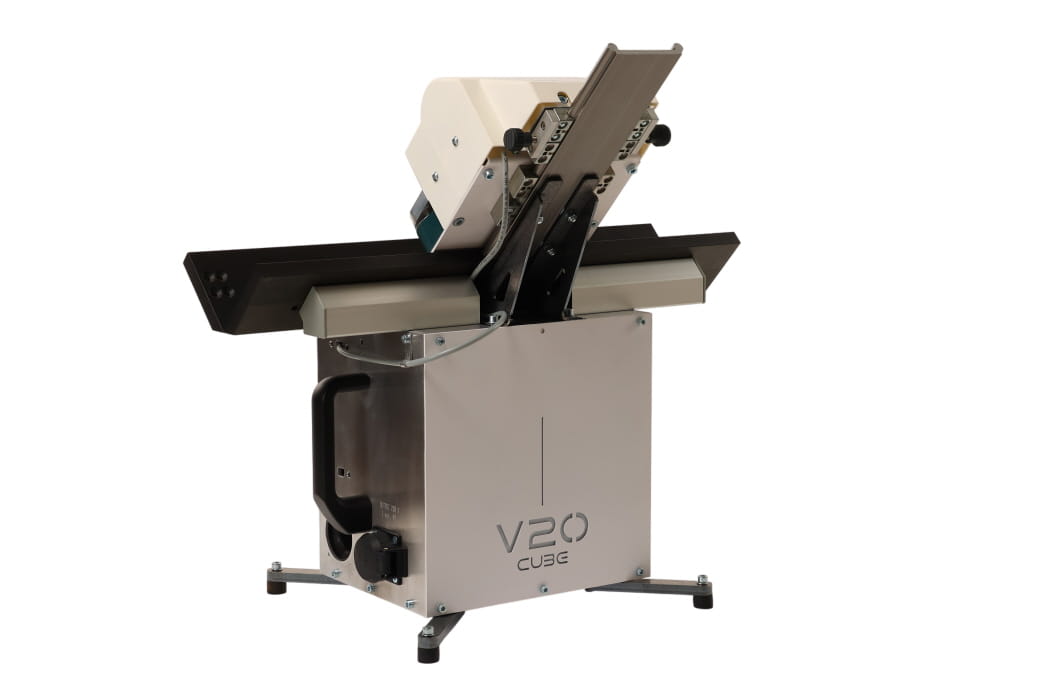

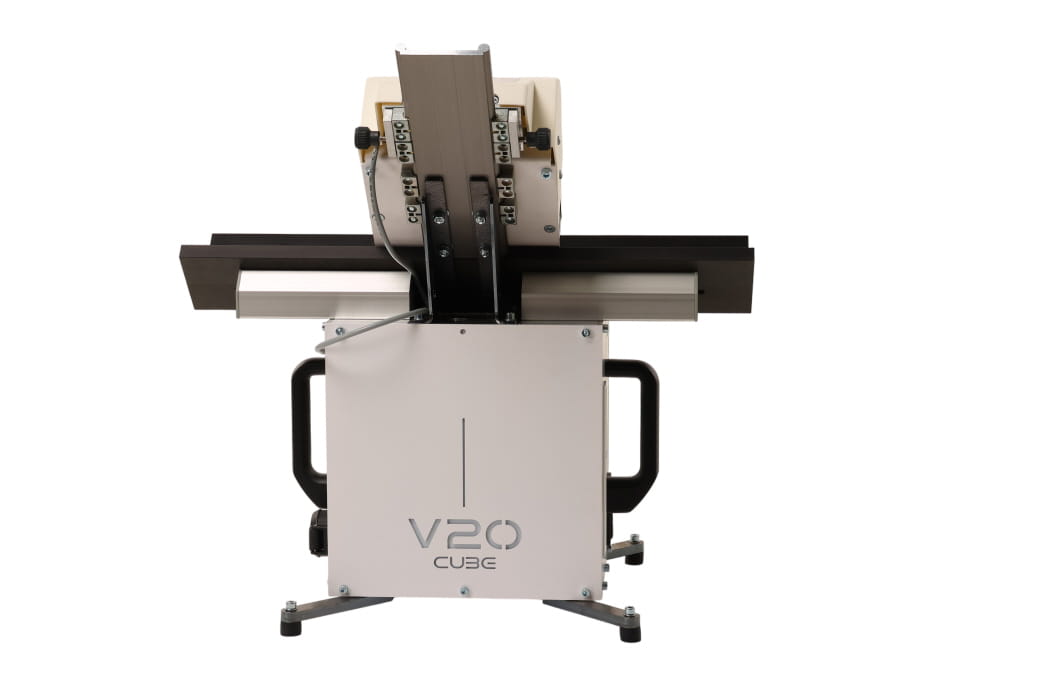

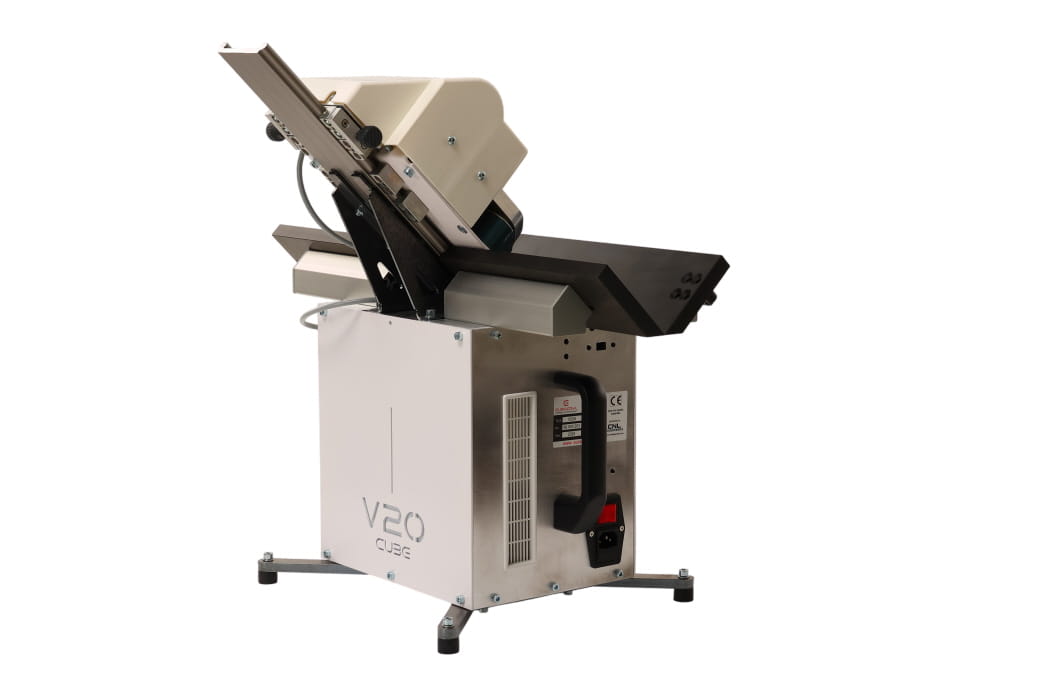

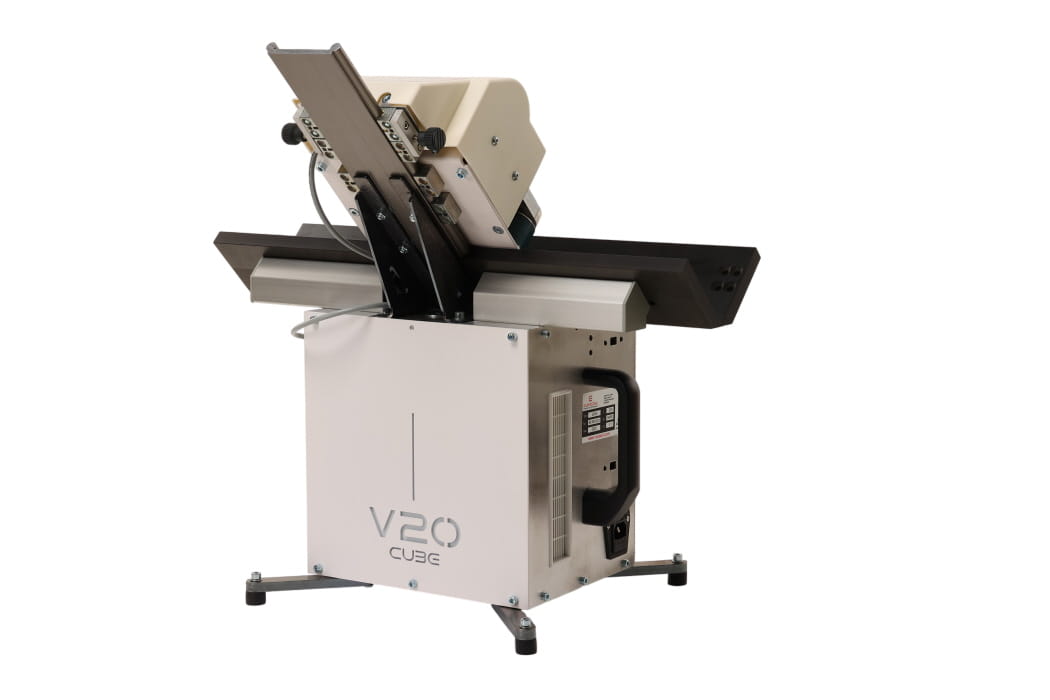

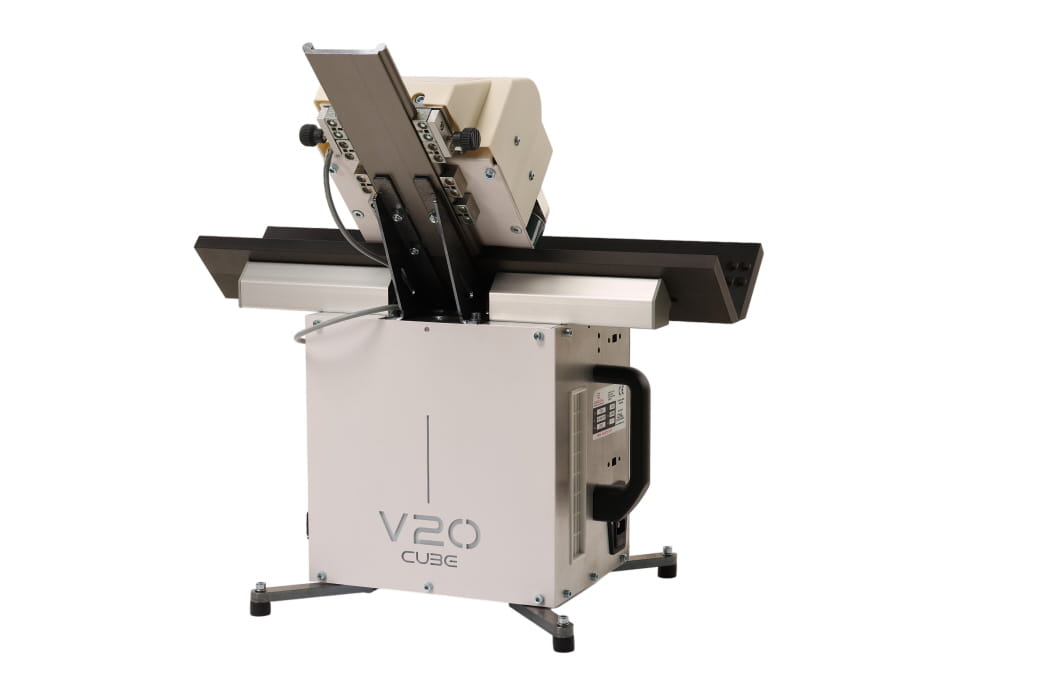

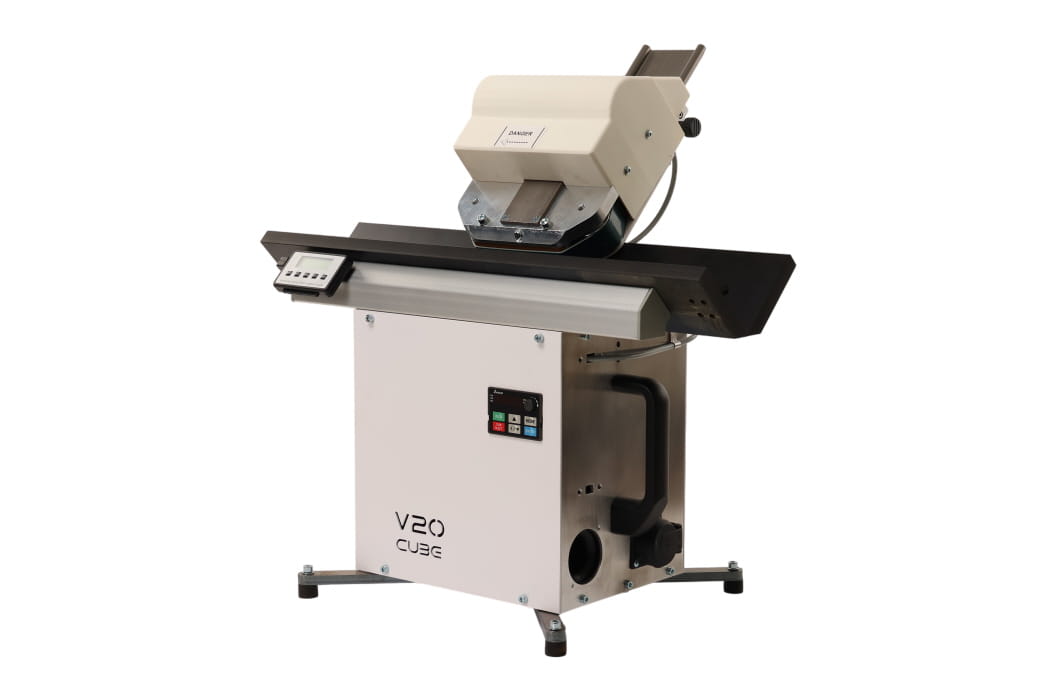

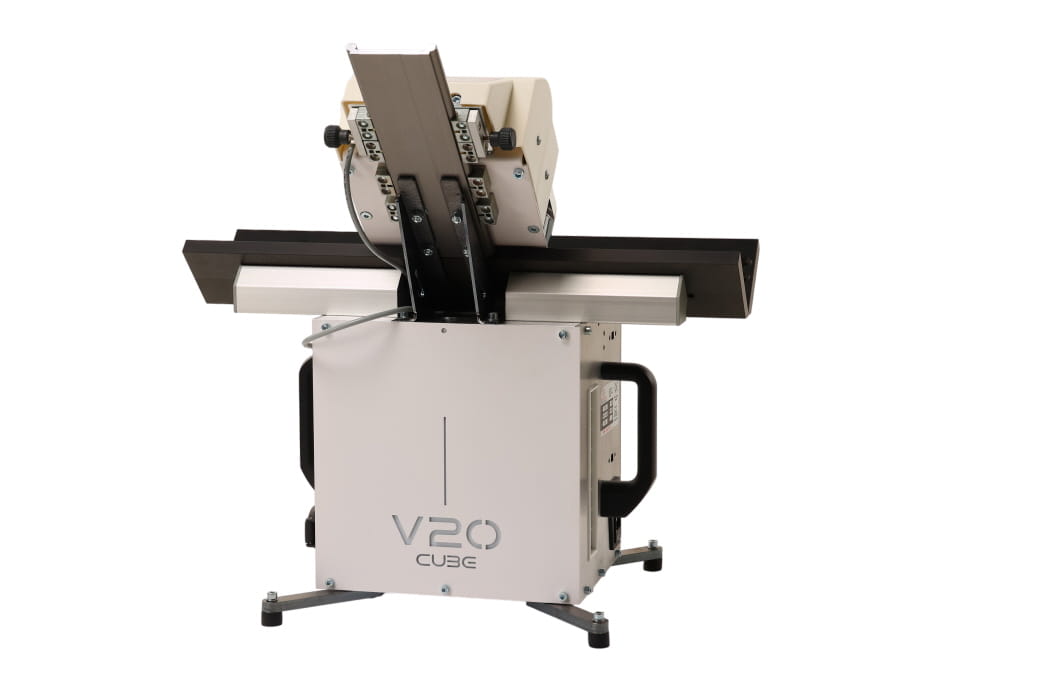

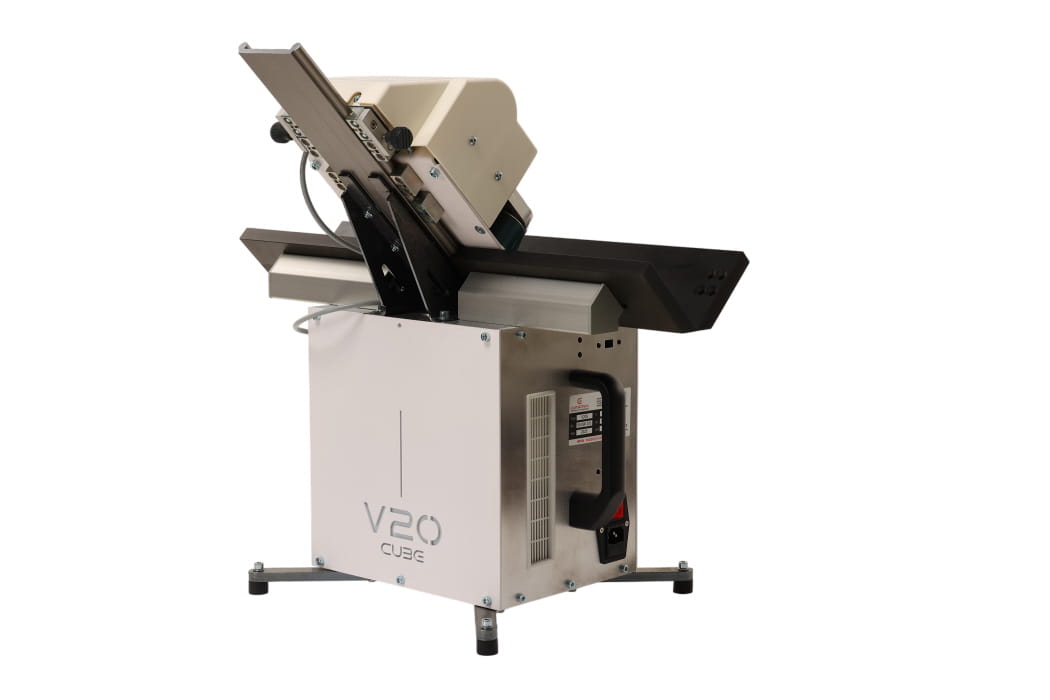

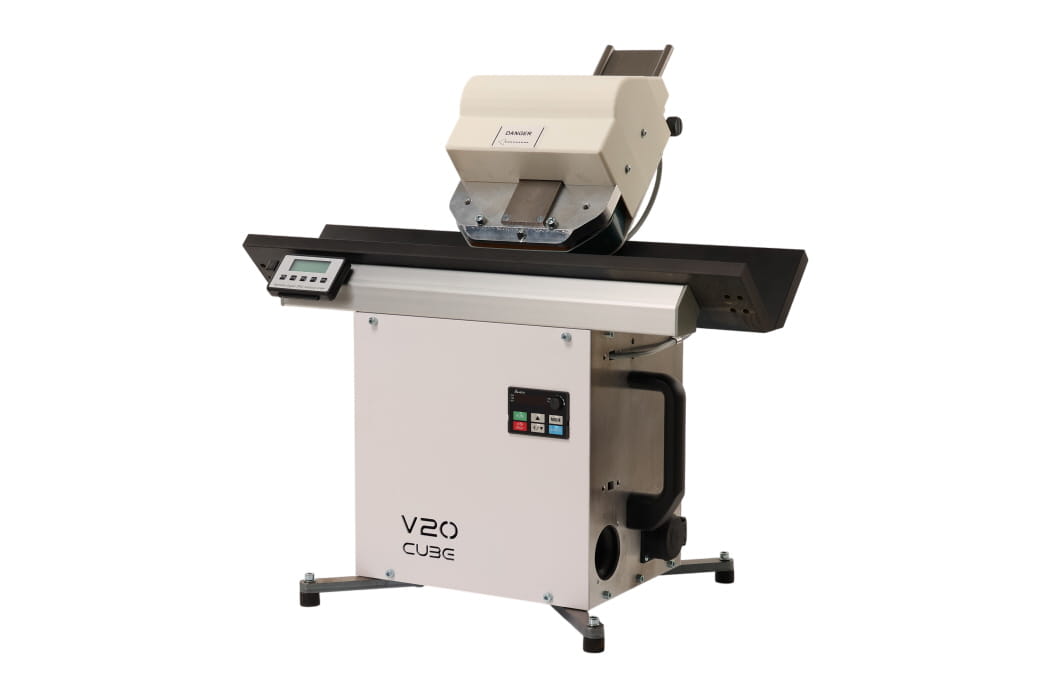

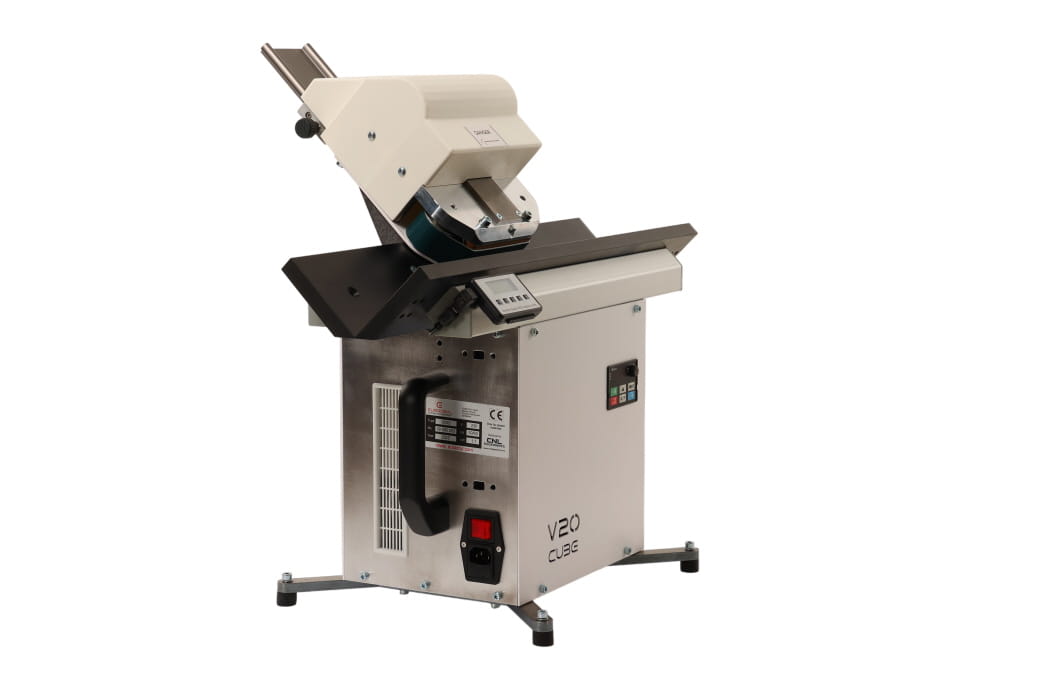

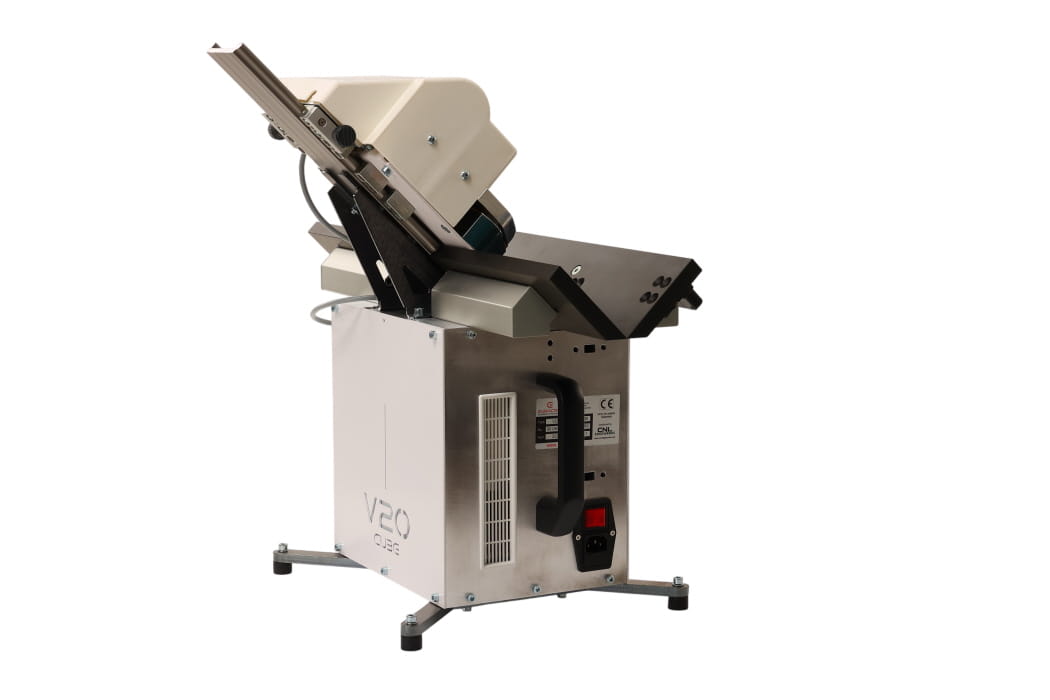

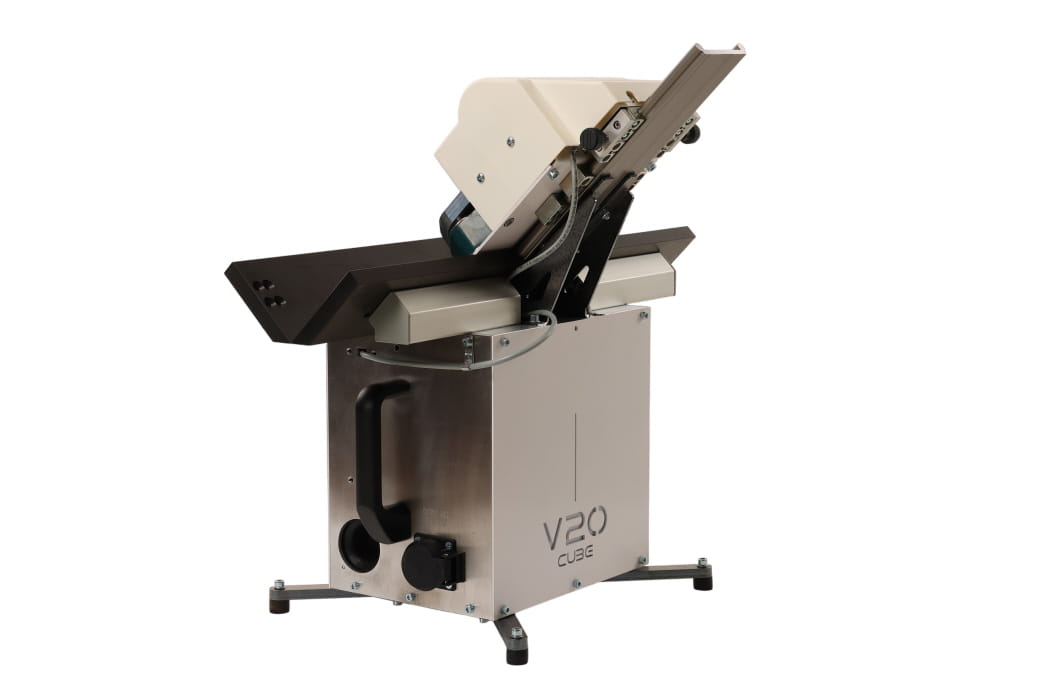

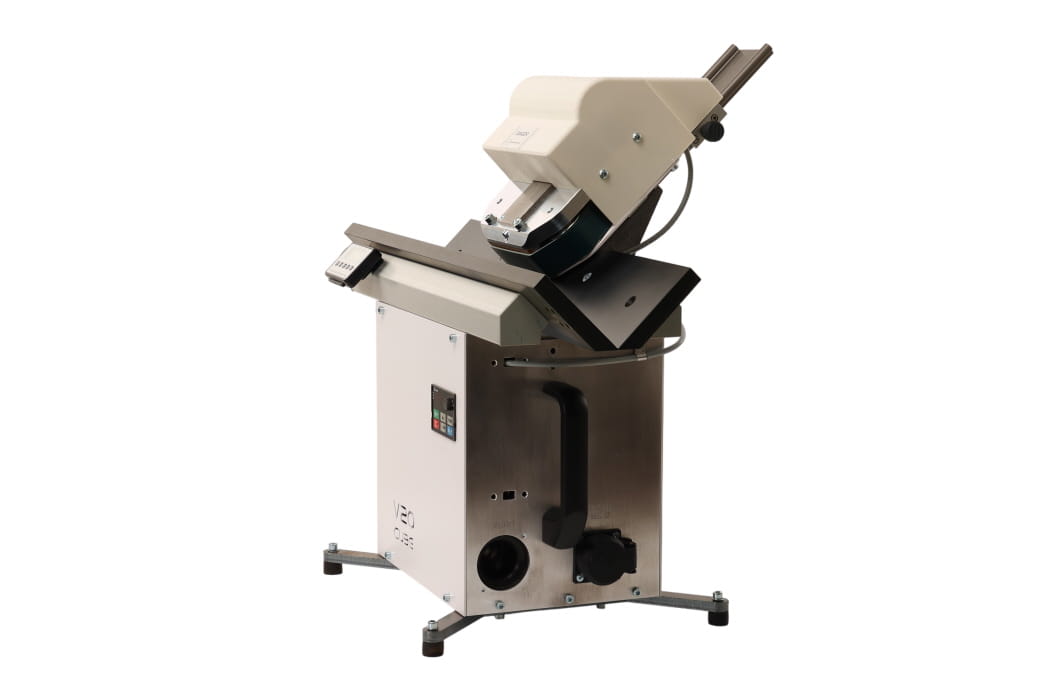

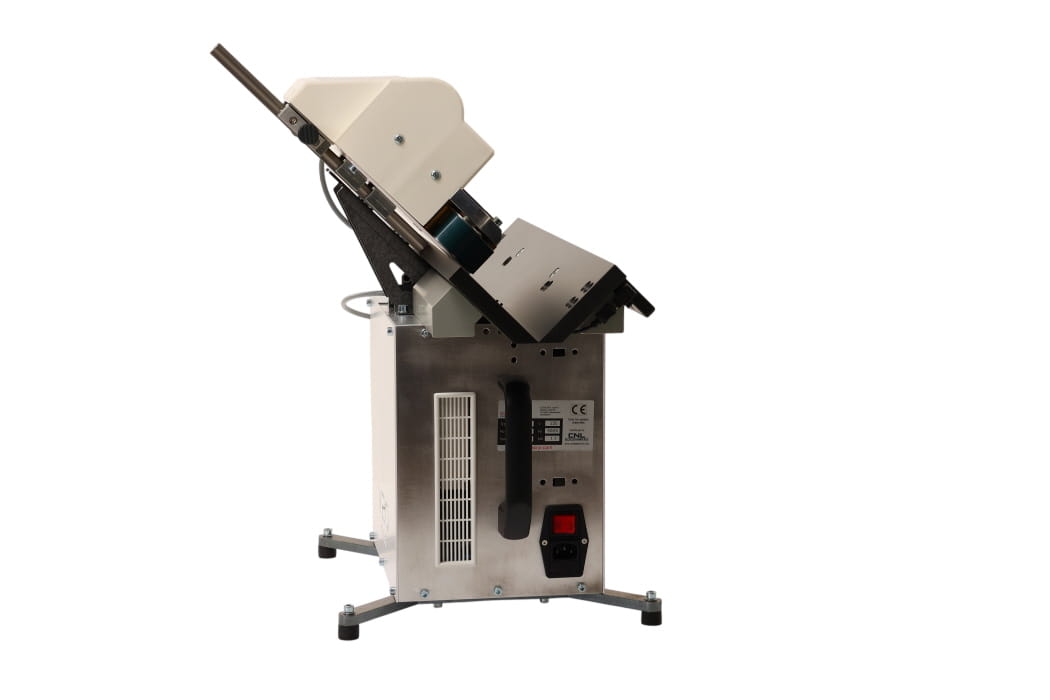

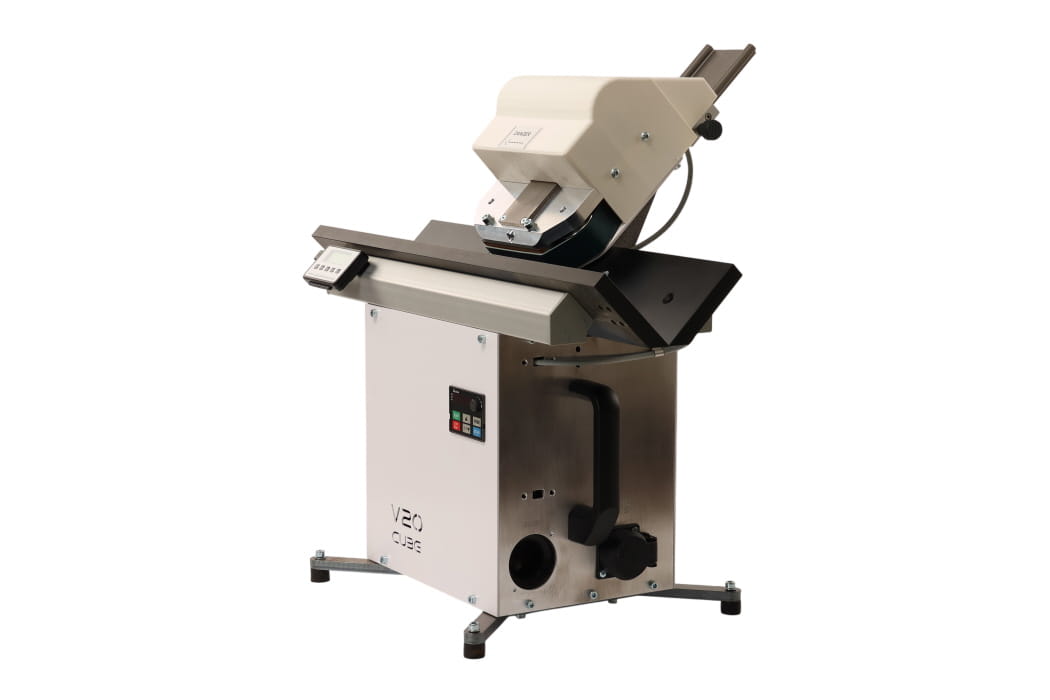

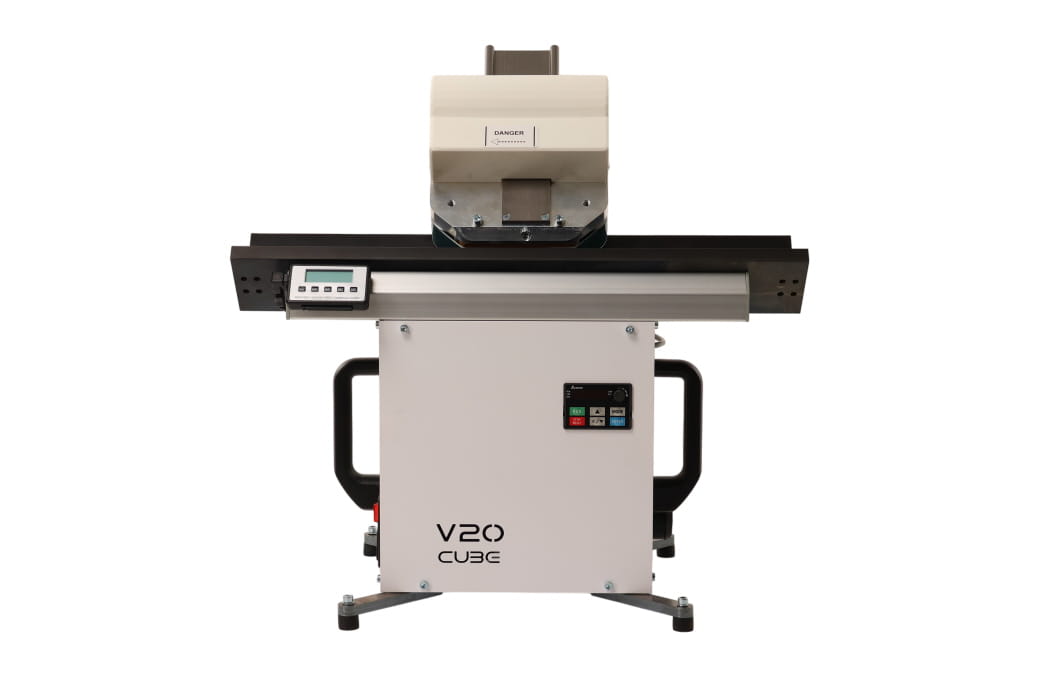

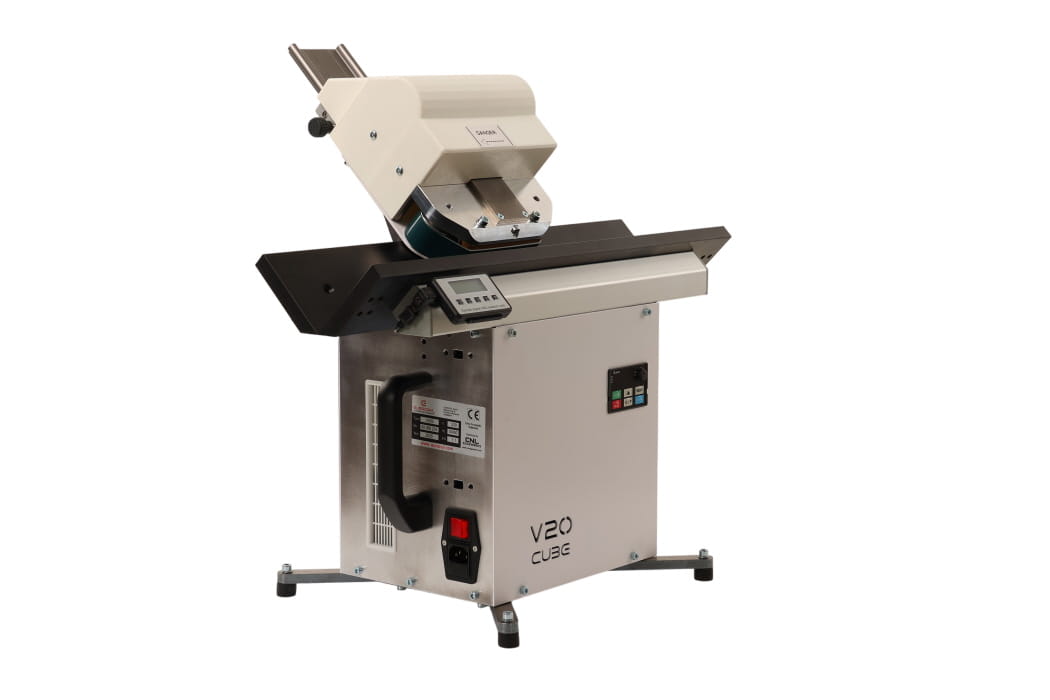

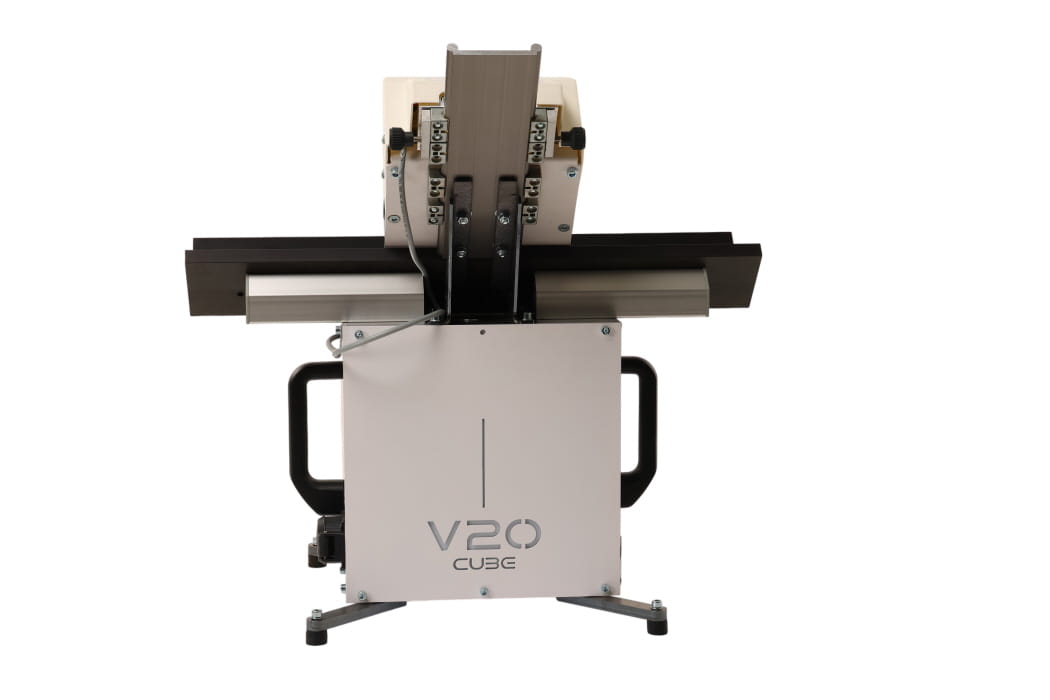

360° view360° — Drag to rotate

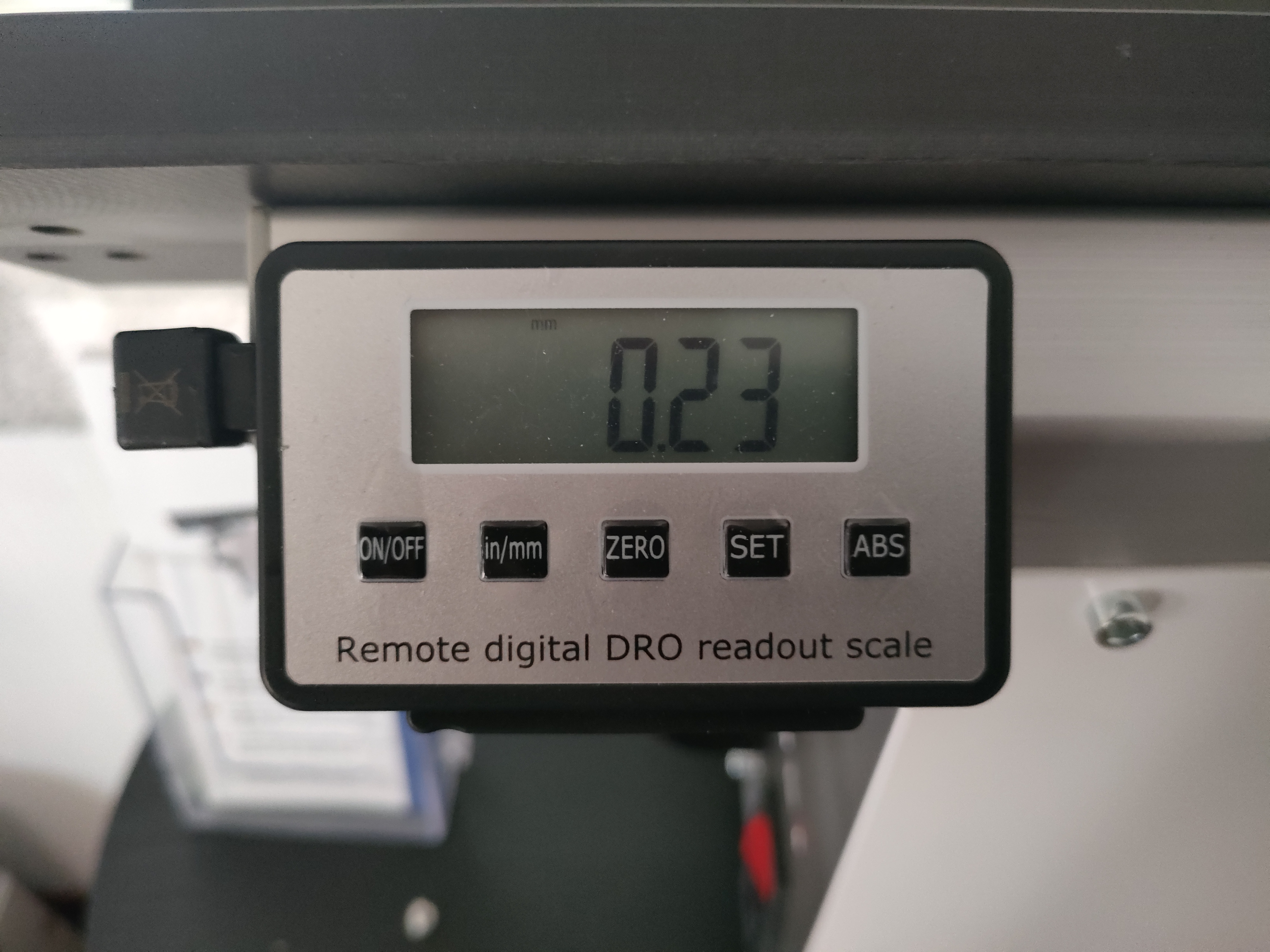

Digital milling depth adjustment
The milling depth is adjusted easily from above and the digital display shows exactly the set values.

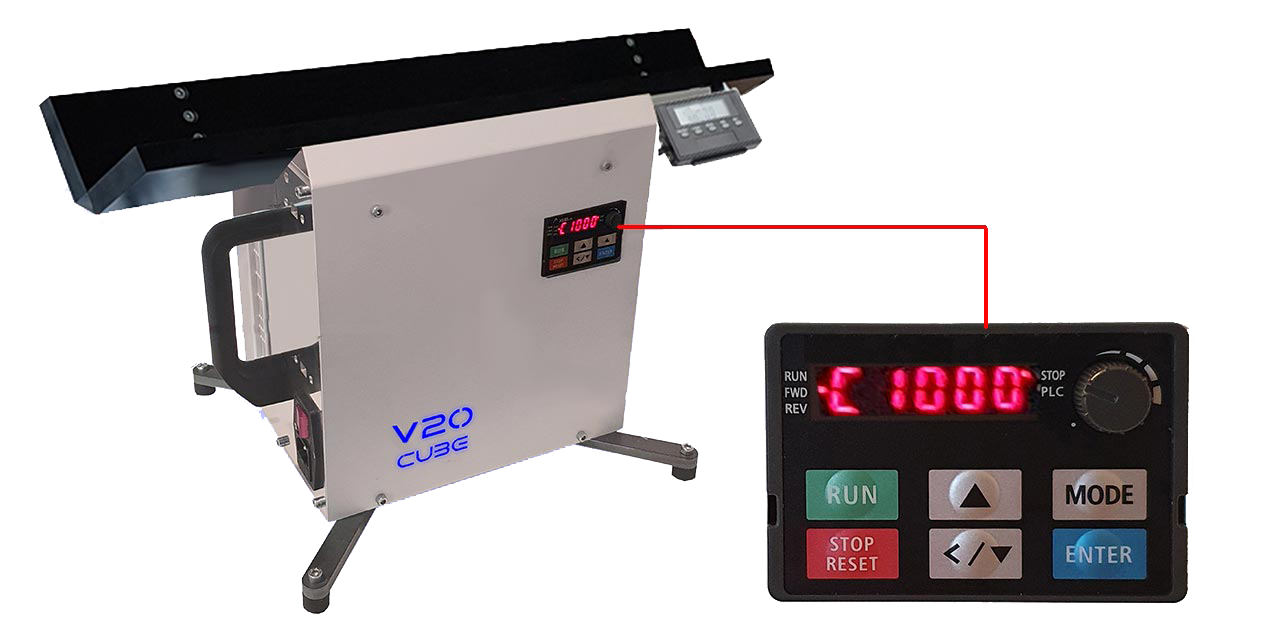

Digital milling speed adjustment
The milling speed is adjusted easily and the digital display shows exactly the set speed.

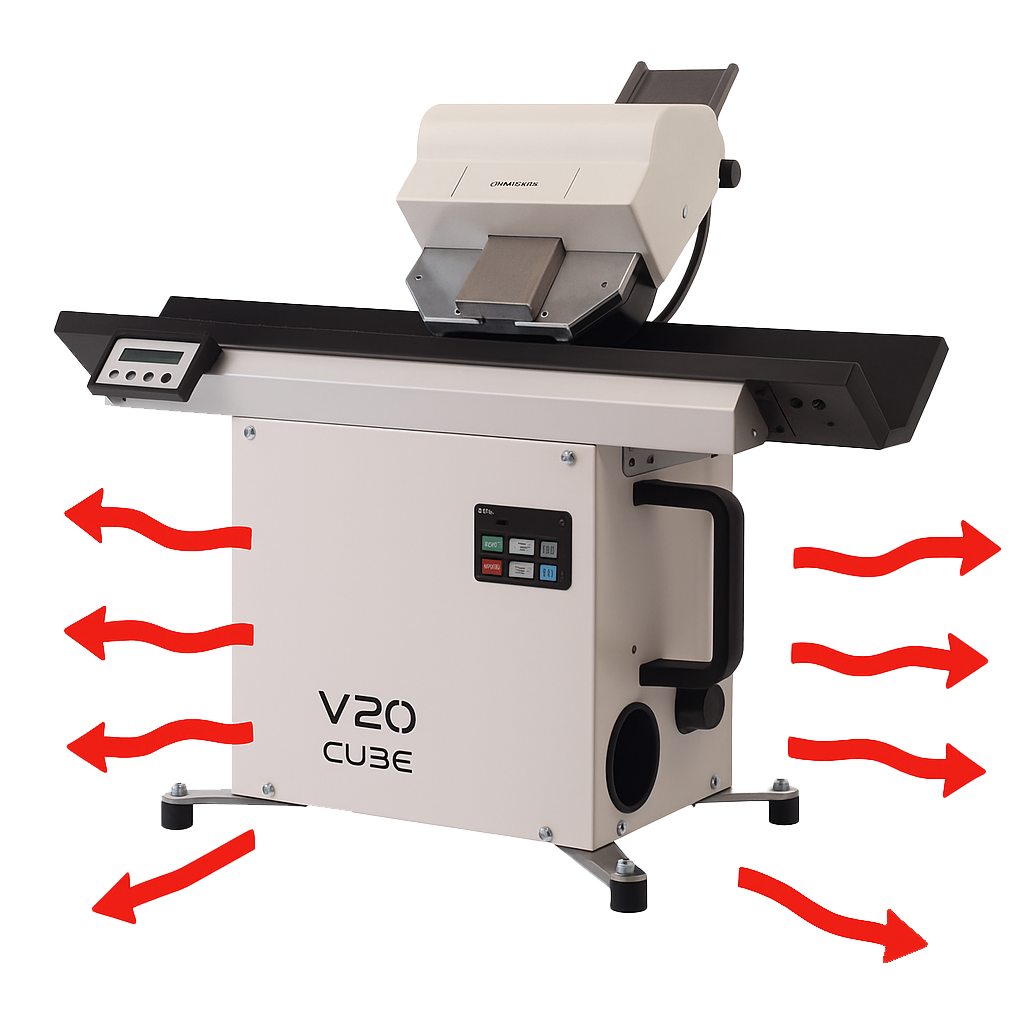

Mobile use
Compact and light for fast relocation, yet robust enough to ensure an optimum part finish at all times.
Automatic feed unit
Automatic feed unit with non-slip conveyor belt.
Milling / polishing tools
22 standard tools for plastics (PMMA, PC, PET-G, SAN) or composites, producing high gloss, shiny or satin finishes. HIGH SPEED tools increase feed rate up to 200%.
Euracryl V20s Cube
Portable beveler with digital adjustment
The Euracryl V20s Cube is a portable beveler for acrylic and plastic sheet with automatic feed on a non-slip conveyor belt. At 48.5 lbs, it moves easily around the shop, yet it handles material from 0.08" to 3" thick with a maximum bevel of .4". Milling depth and speed are set digitally, and the 0.85 kW milling motor turns up to 18,000 rpm. It's a practical second station for bevels and chamfers when the main polisher is busy.
Key data
At a glanceMaterial capability
Technical data
- Material thickness
- 0.08" … 3"
- Milling motor power
- 0.85 kW
- Feed motor power
- 0.3 kW
- Weight
- 48.5 lbs
- Feed speed
- 0.1 … 5 in/min
- Spindle turn speed
- 0 … 18,000 rpm
- Bevel size max.
- .4"
- Electrical connection
- 230 V / 50-60 Hz (120 V possible with step-up converter)
- Chip extraction diameter
- 32 mm
- Total power
- 1.15 kW
- Tool included / edges
- Standard gloss / 2
- Dimensions
- 22.5" W x 21" H x 14" D
Best for
- Mobile beveling at the bench or on site
- Small to mid-size parts
- Shops adding bevel capacity without floor space
Materials
PMMA, PC, PETG, SAN and composites, from 0.08" to 3" thick.
Why the Euracryl V20s Cube
- Digital milling depth and speed adjustment
- Automatic feed for a consistent bevel
- Same 22-tool Euracryl range — high gloss, shiny or satin
- Light enough to carry, robust enough for production finishes
Common applications
Signage and lettering · Furniture and assembled parts · Display components. See edge polishing by application
Compare
- Consider the Euracryl V30 Cube if you want adjustable 30° to 60° guides and a slightly larger bevel (.45").
- Consider the Euracryl A26 Cube if you need straight edge finishing on thinner material rather than bevels.
- Not sure? Match a machine to your parts in the Machine Finder.
Euracryl V20s Cube FAQ
+How much does the V20s Cube weigh?
48.5 lbs.
+What is the maximum bevel size?
.4" on material from 0.08" to 3" thick.
+What power does it need?
230 V / 50-60 Hz, 1.15 kW total; 120 V is possible with a step-up converter.
