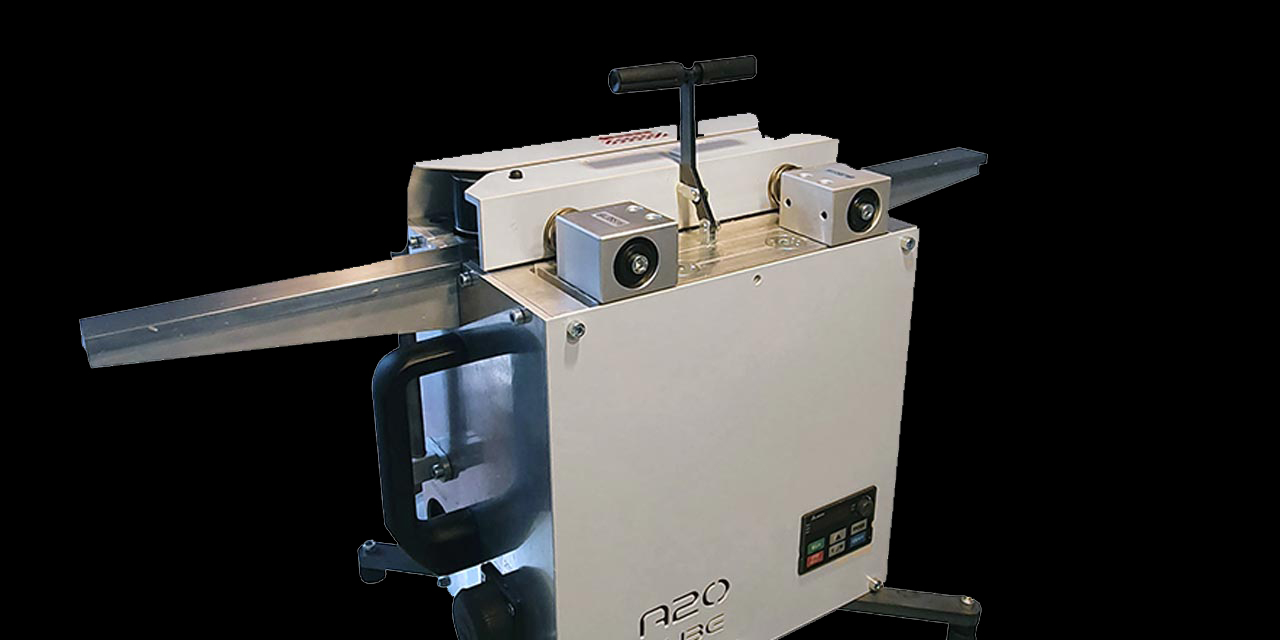

Euracryl A26 Cube — Portable acrylic edge finisher

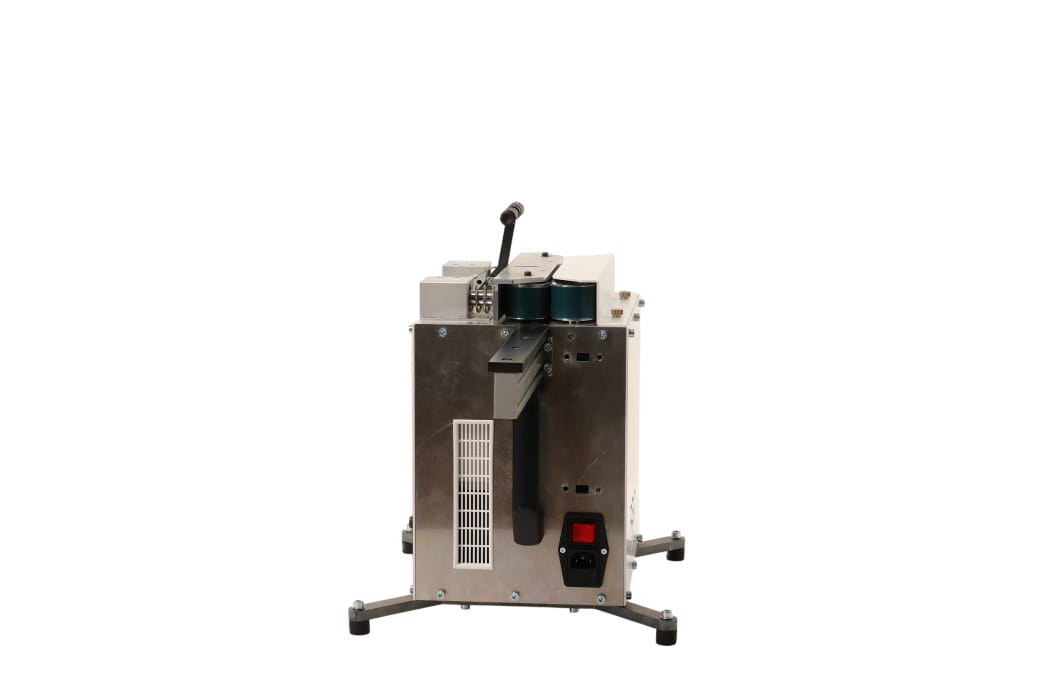

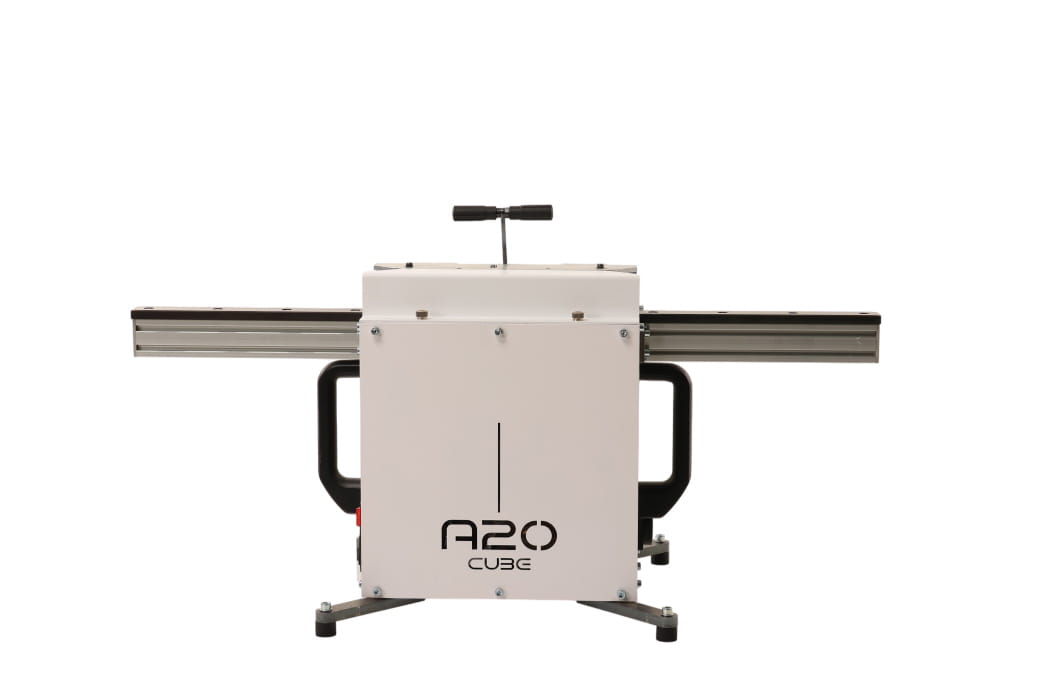

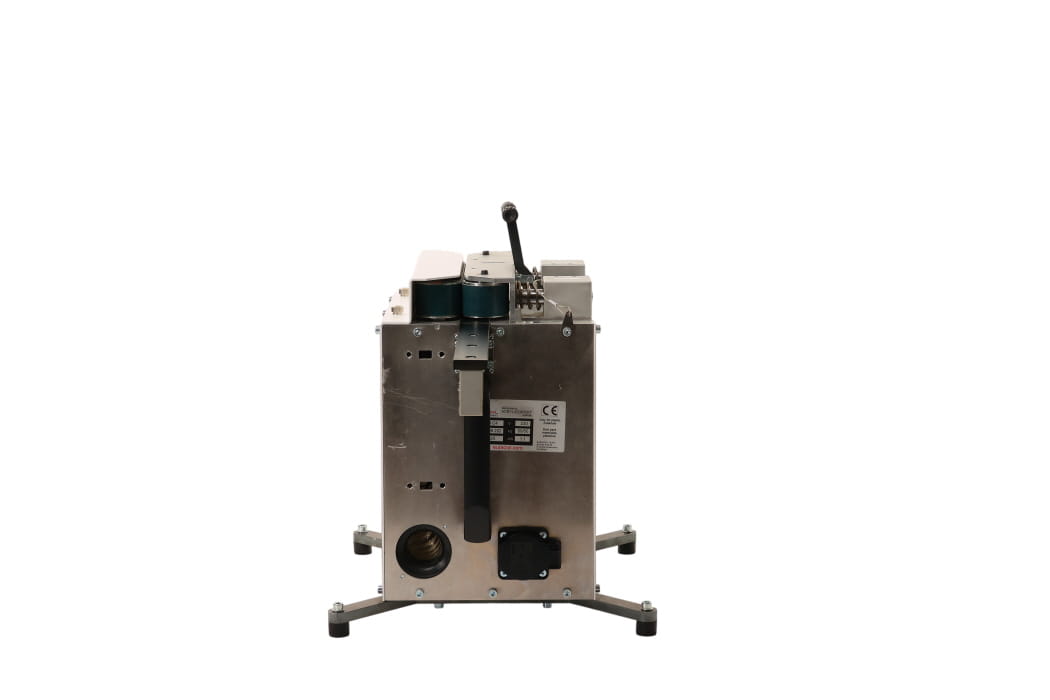

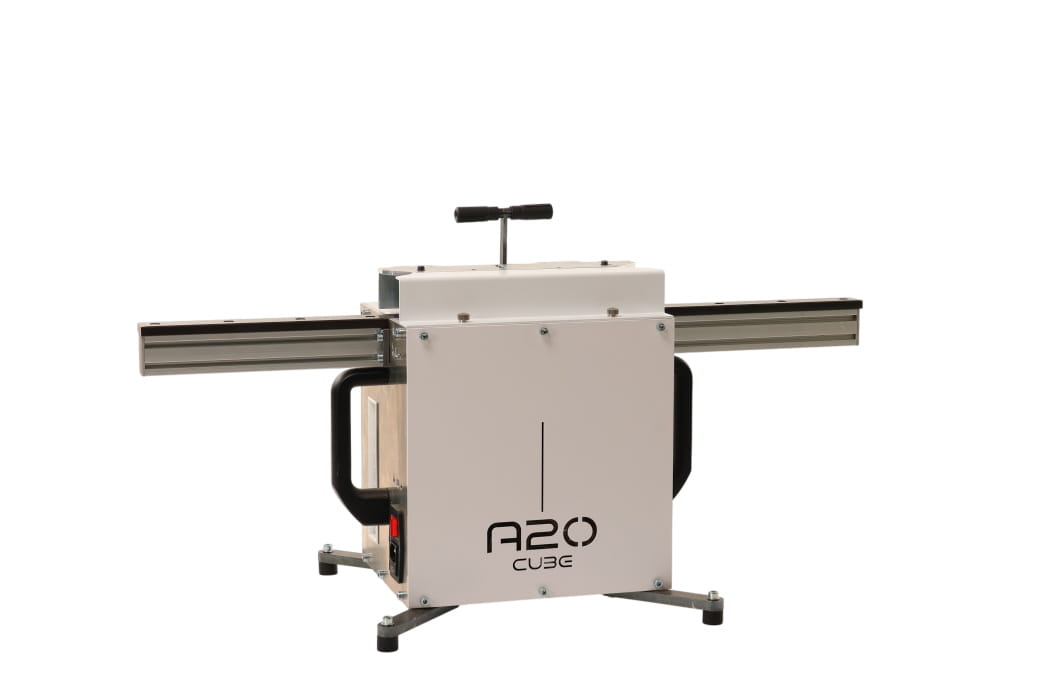

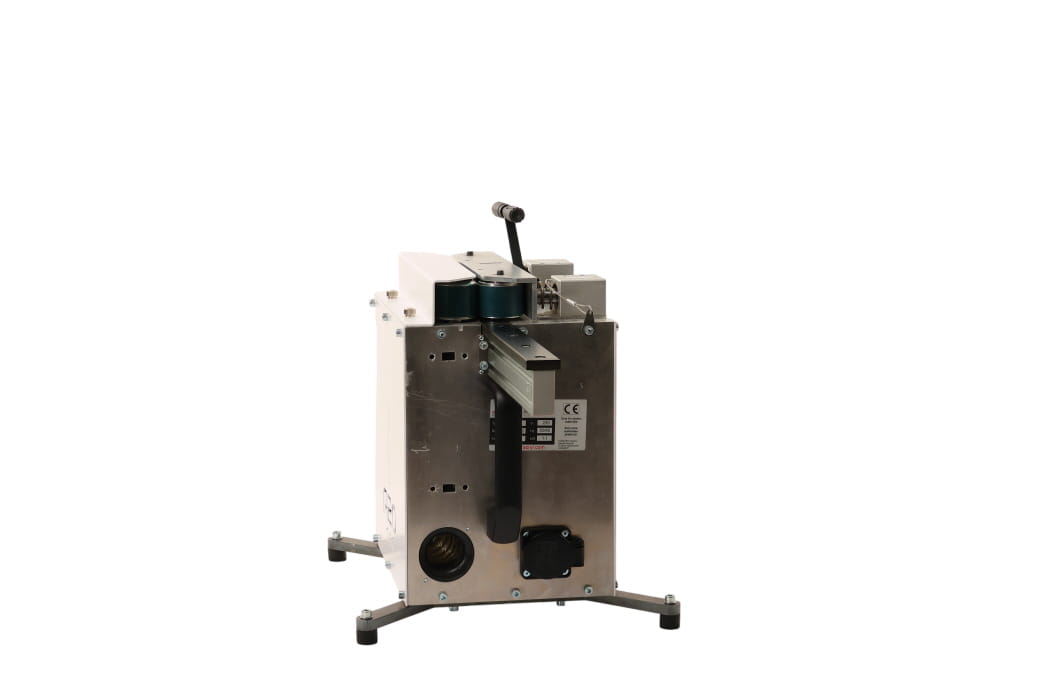

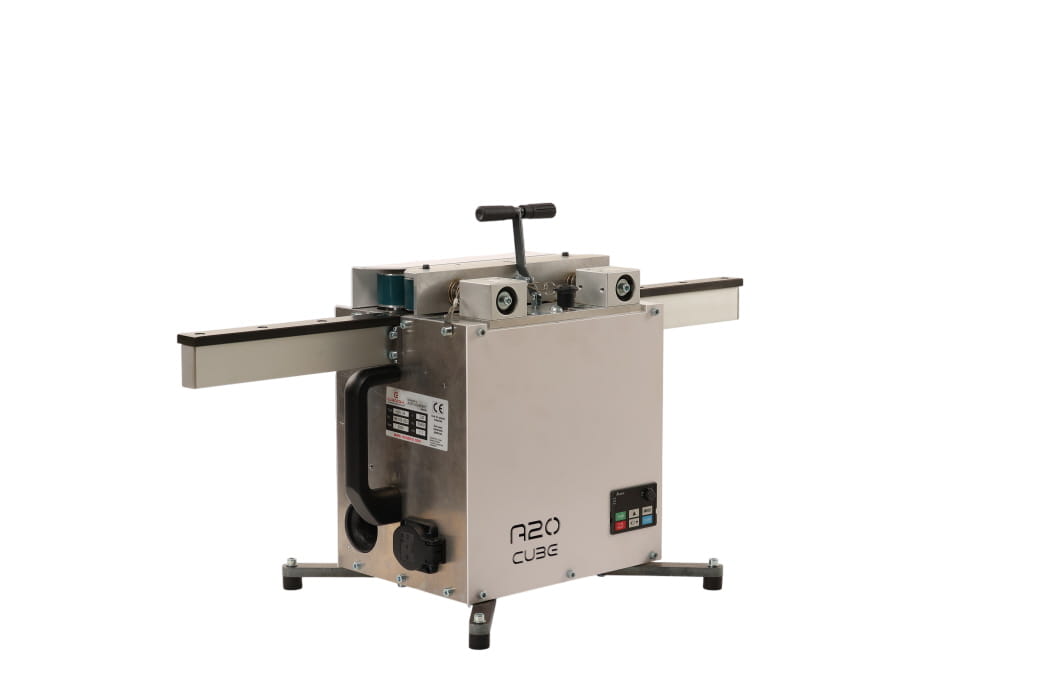

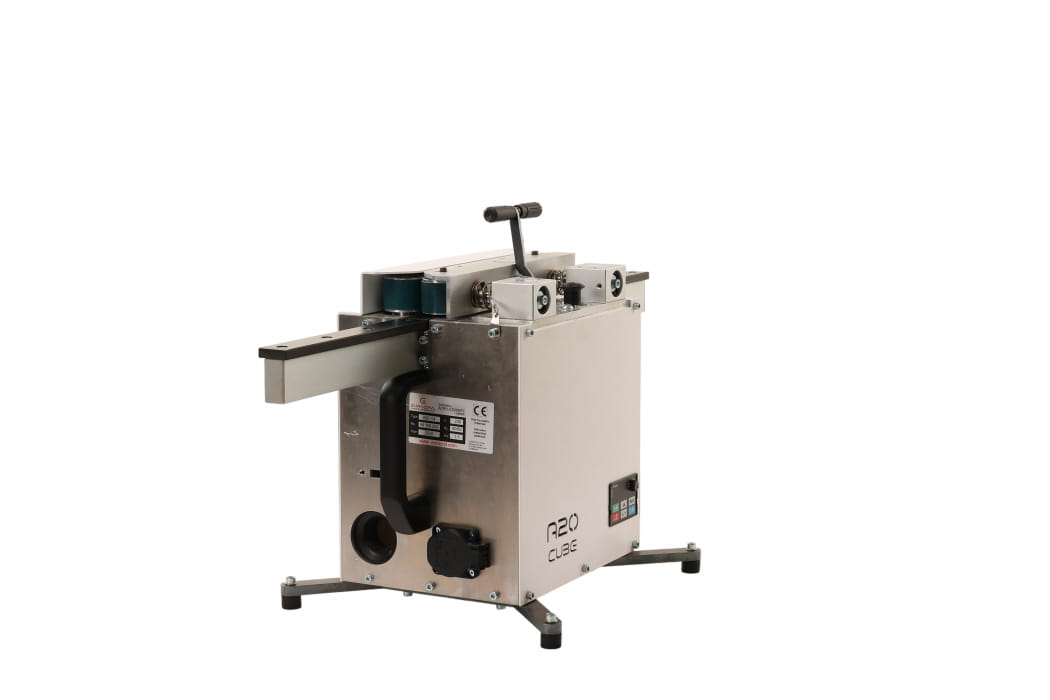

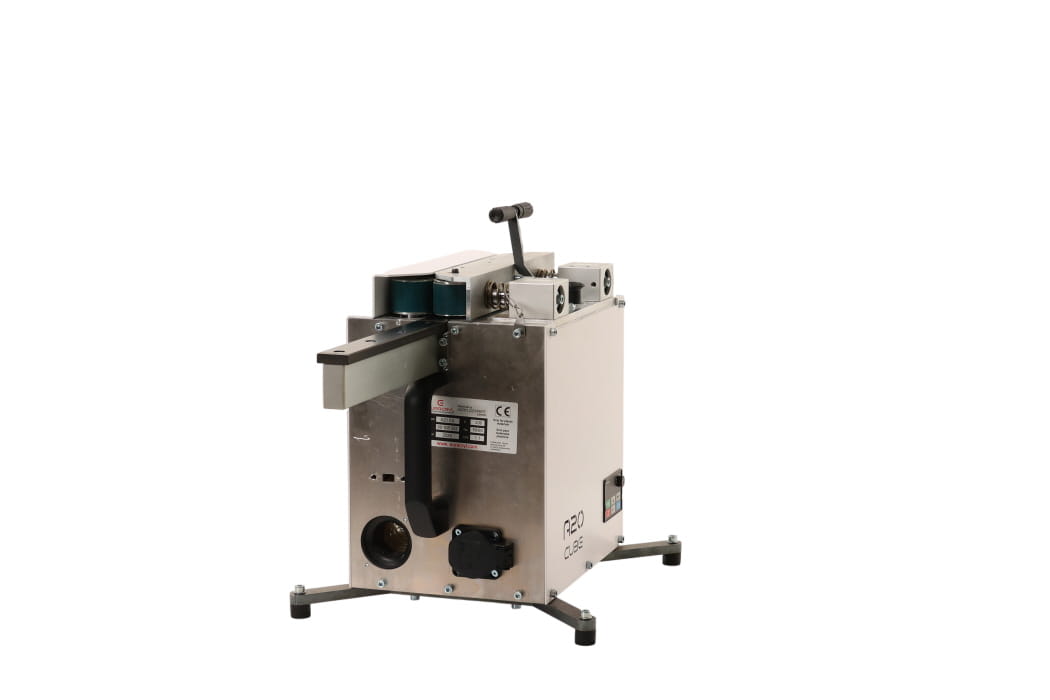

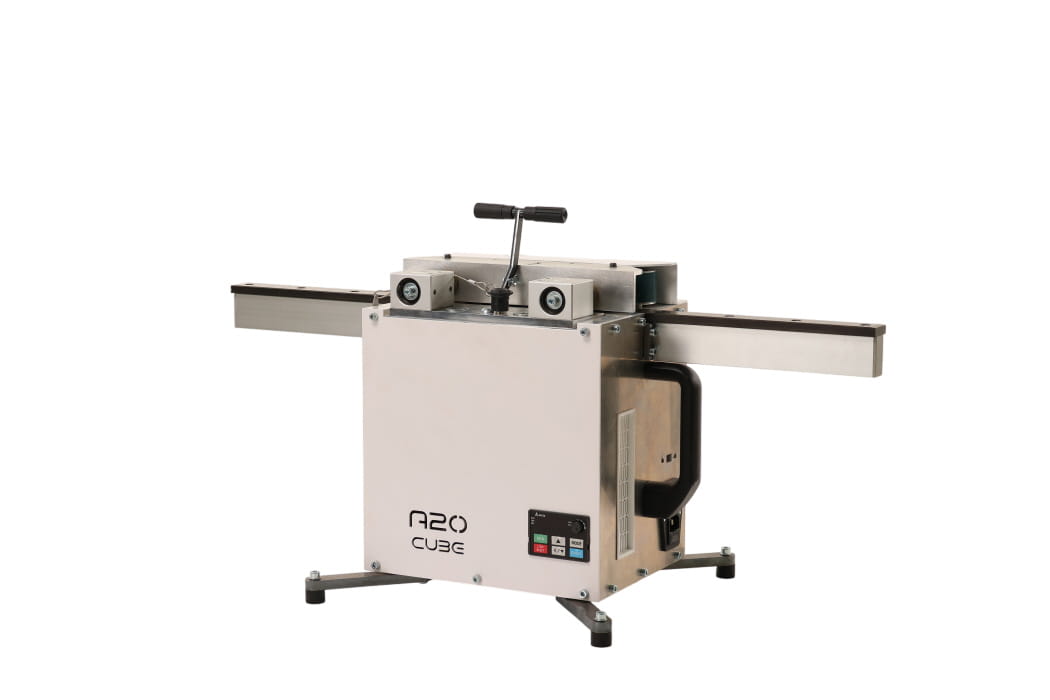

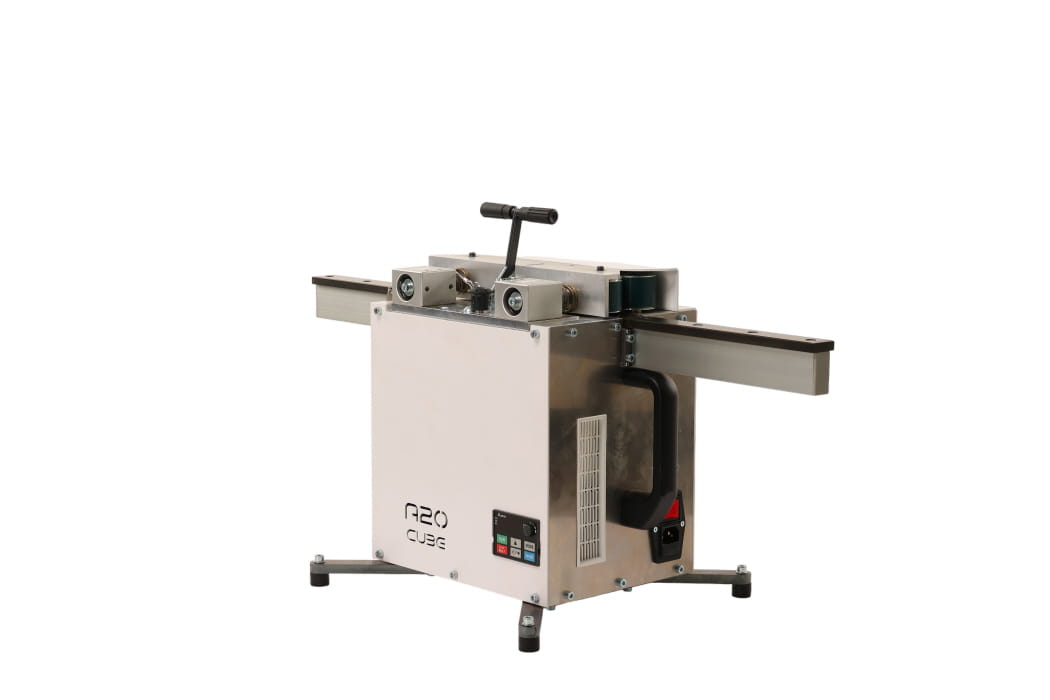

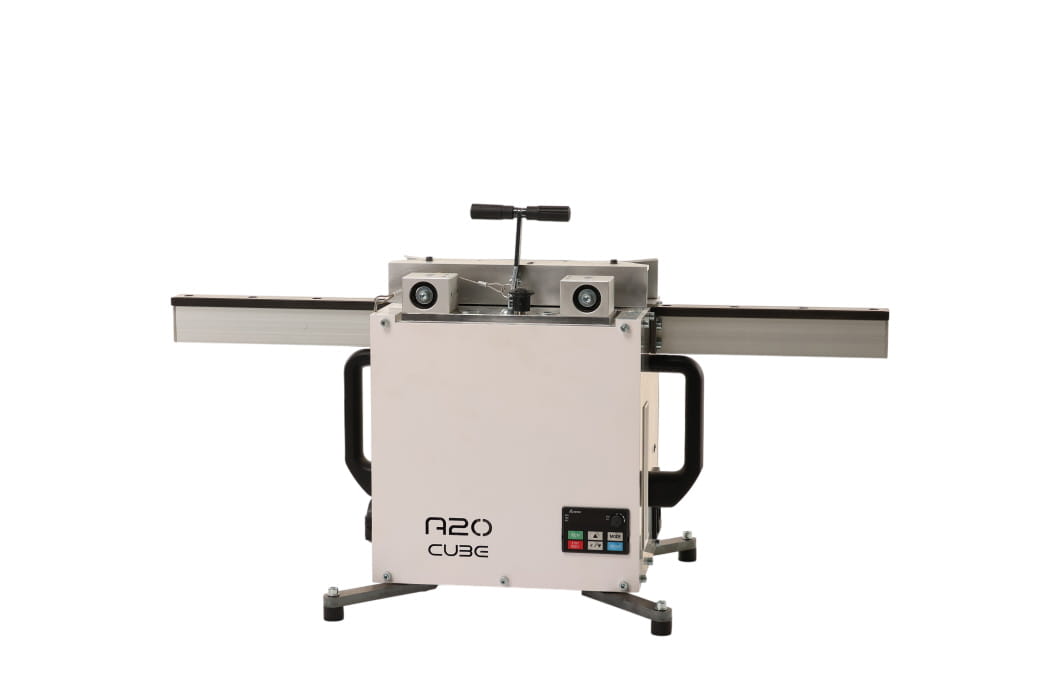

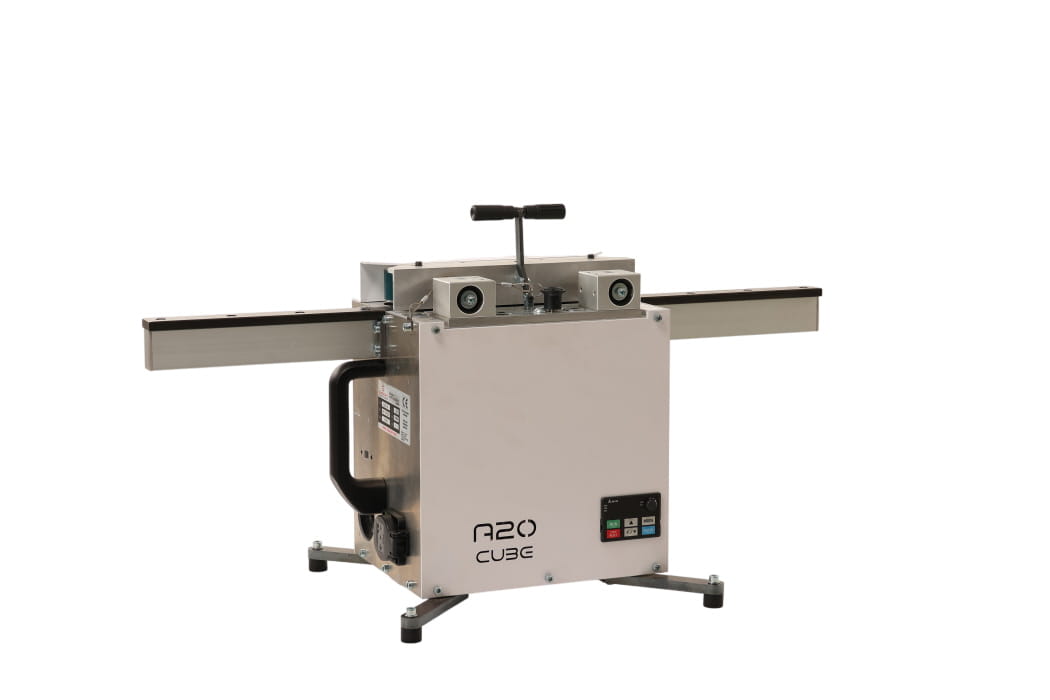

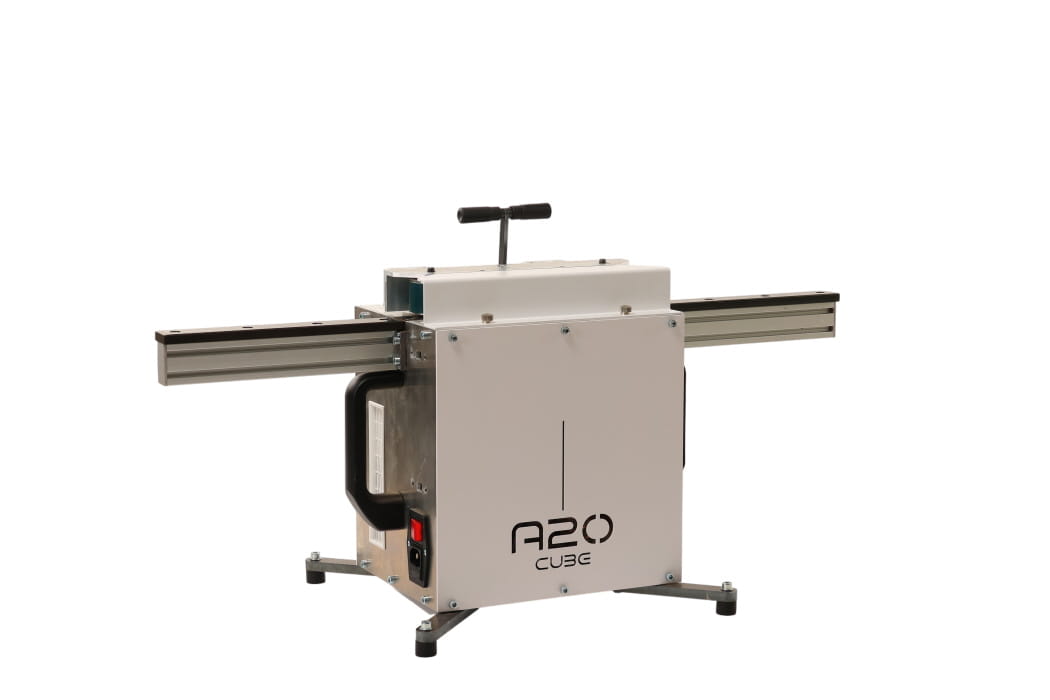

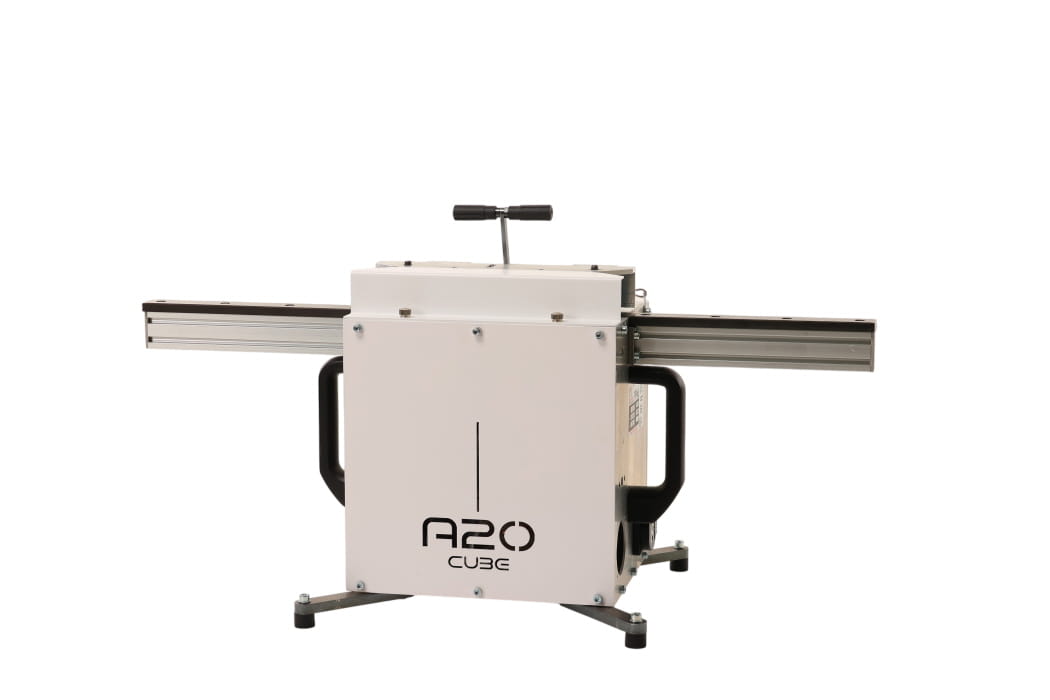

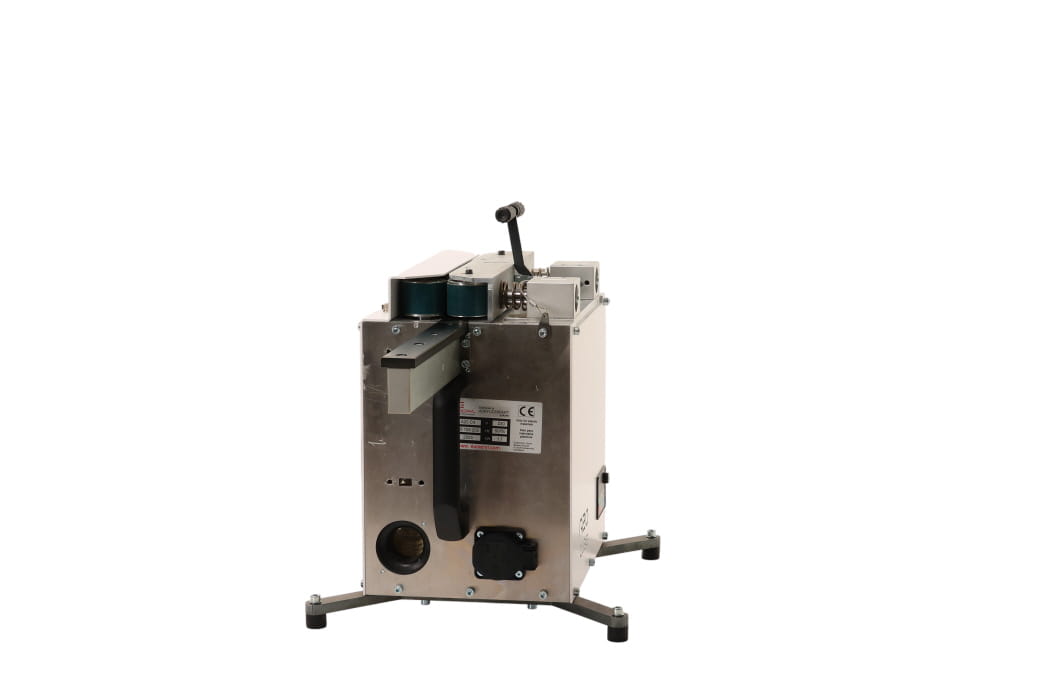

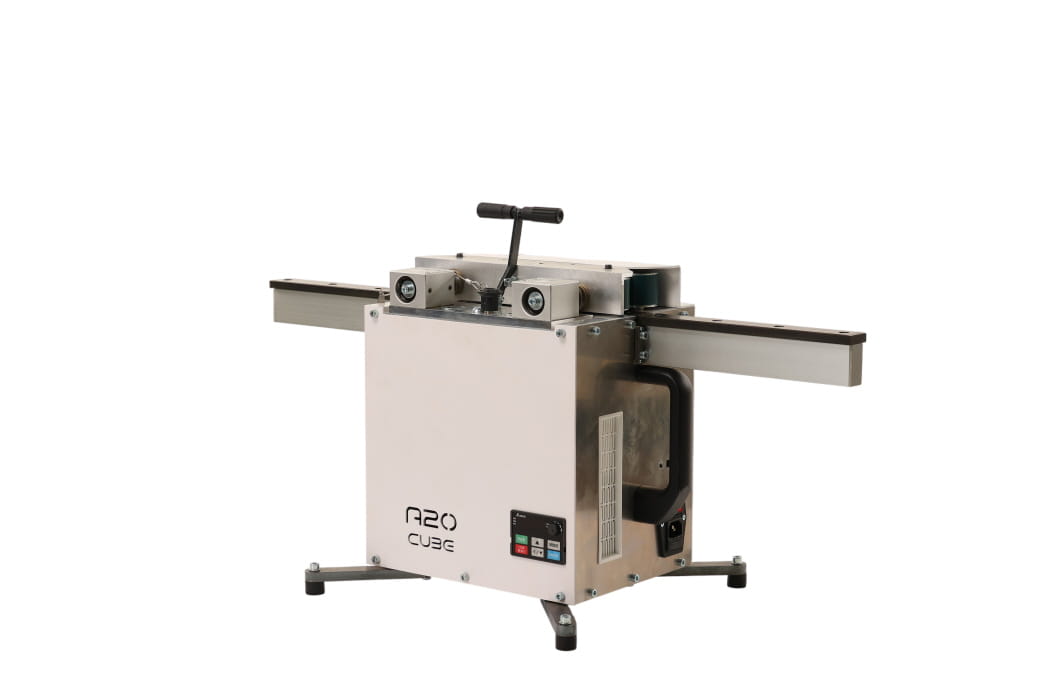

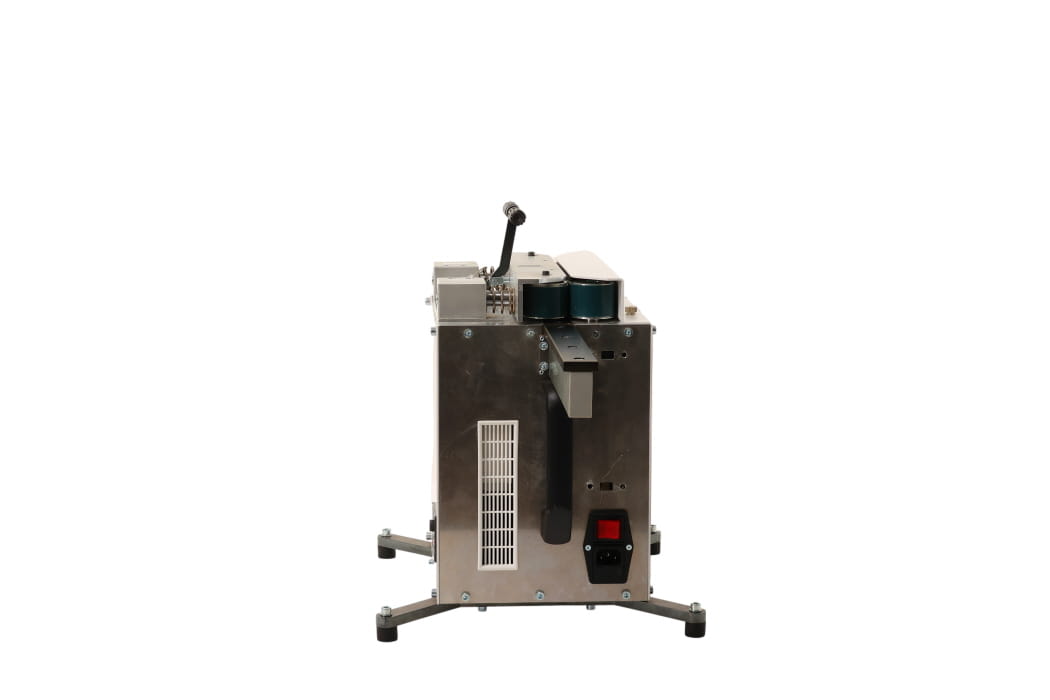

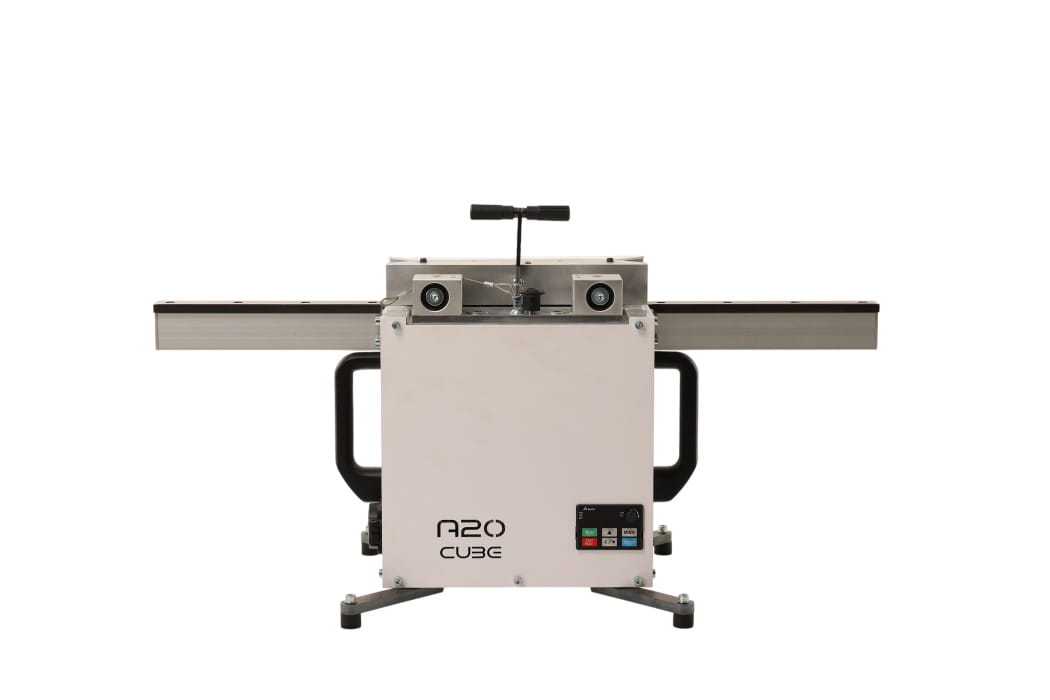

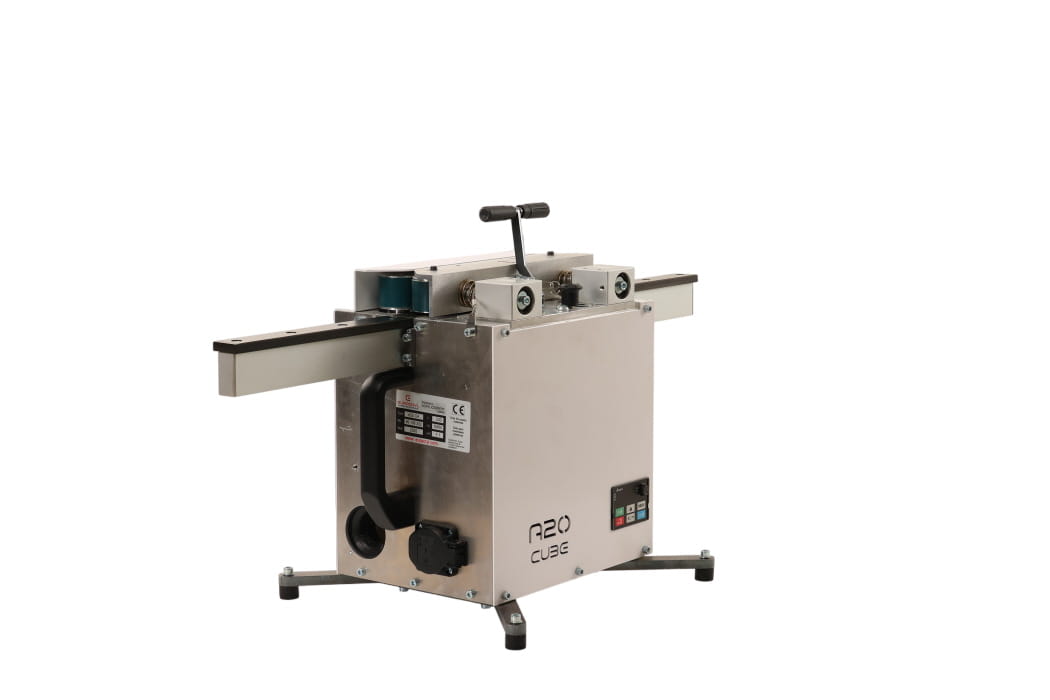

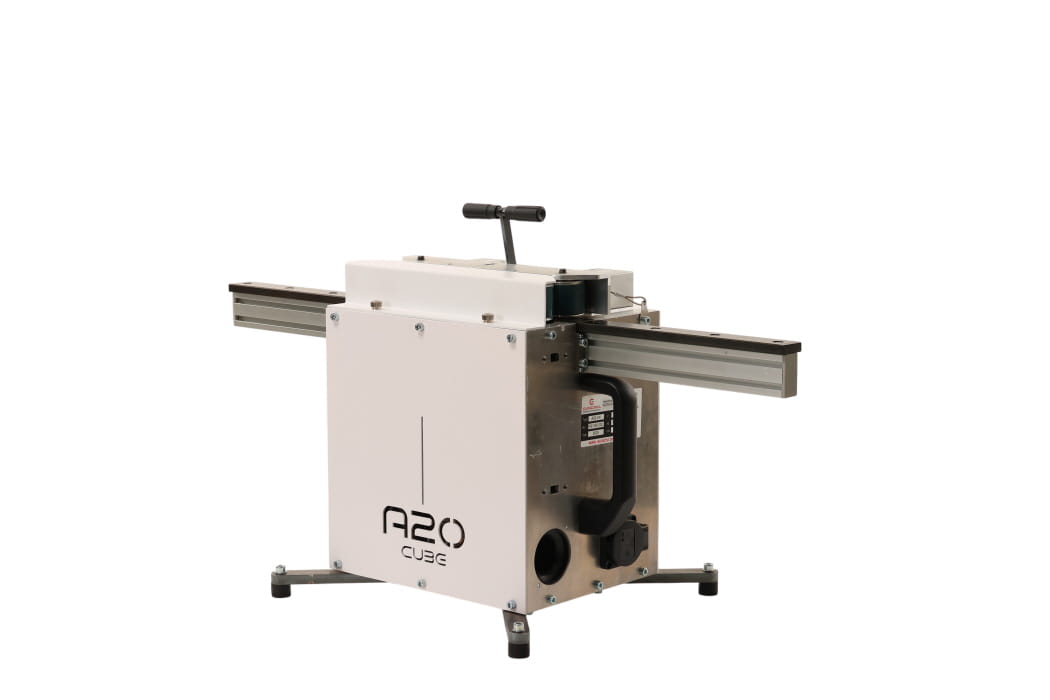

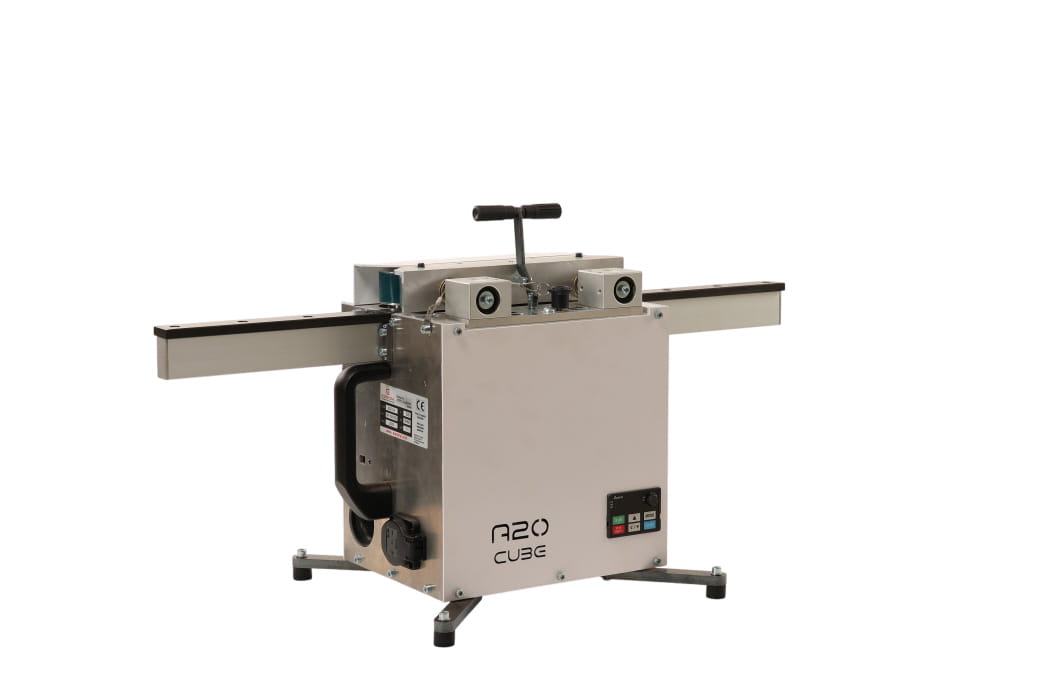

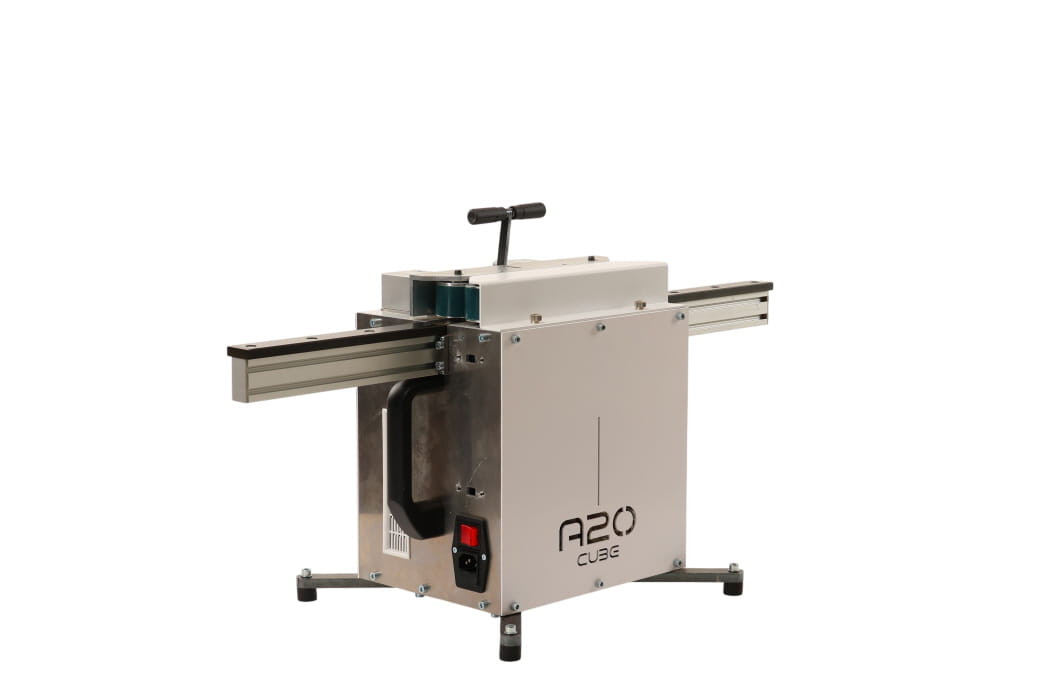

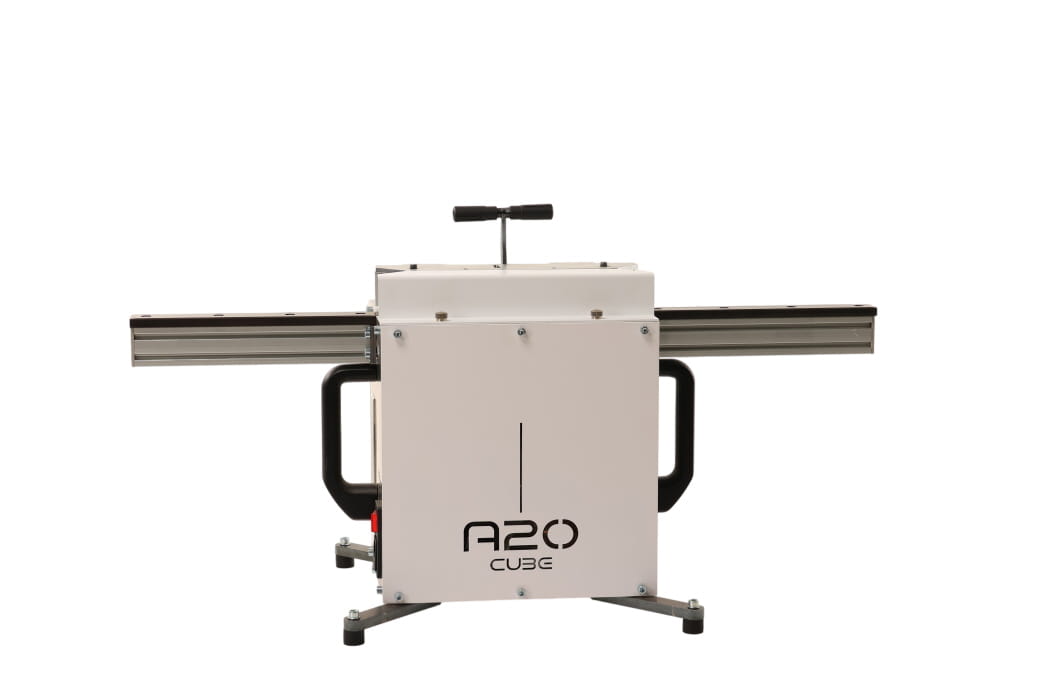

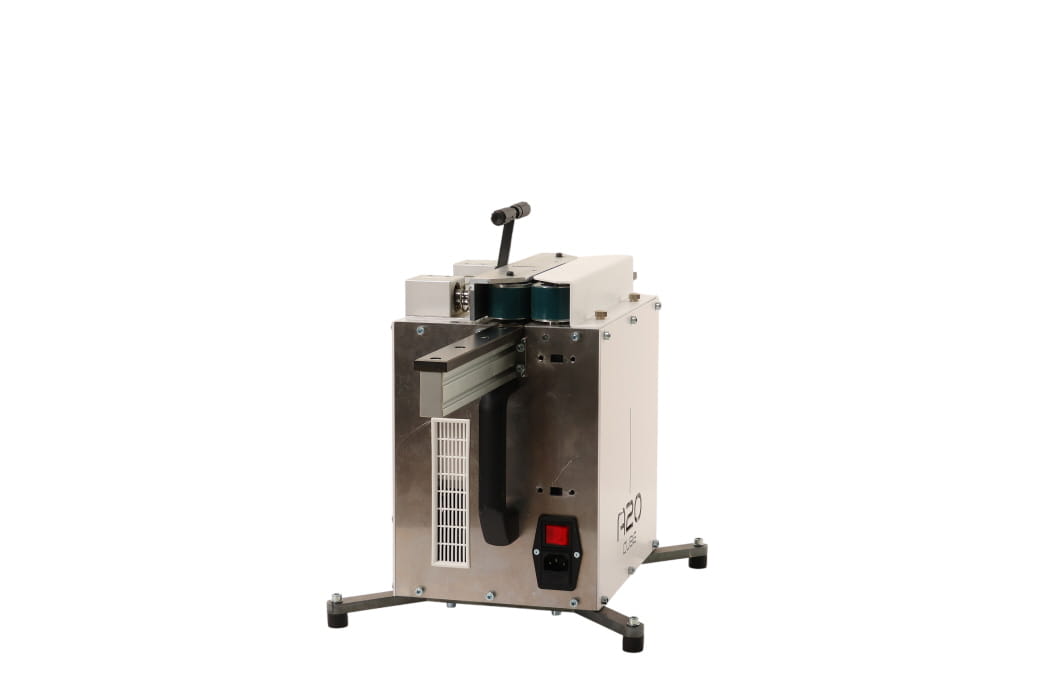

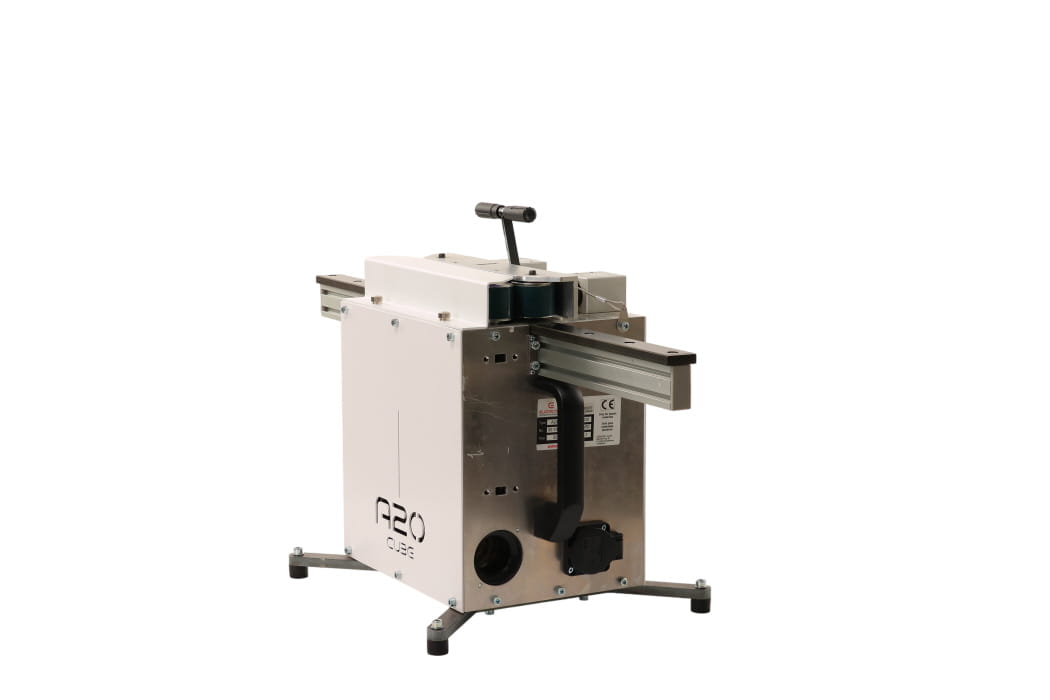

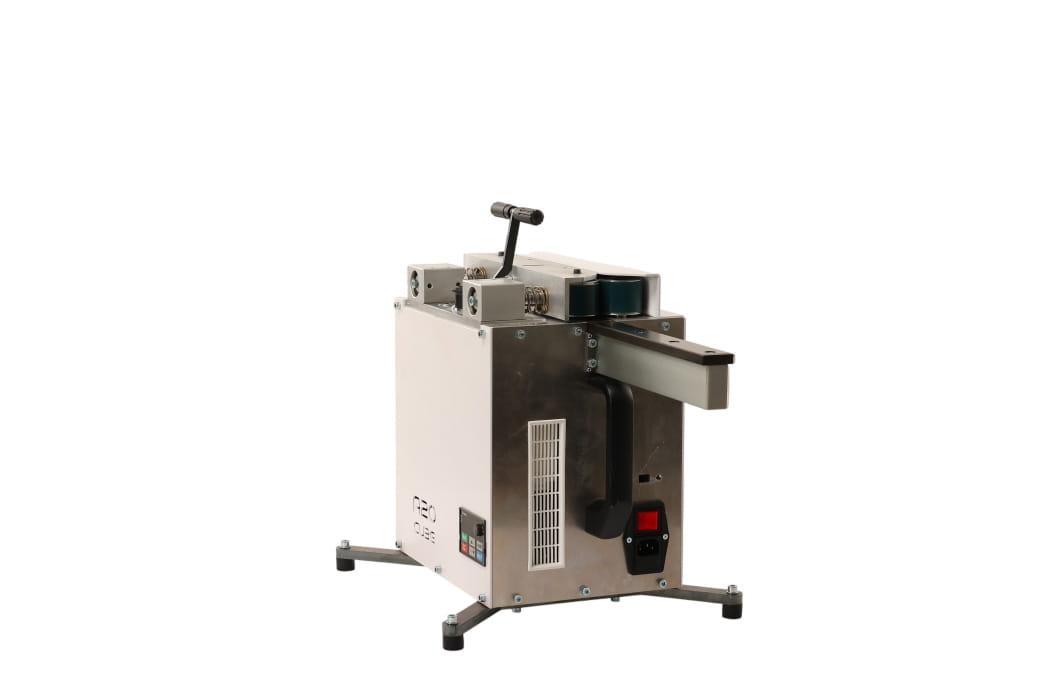

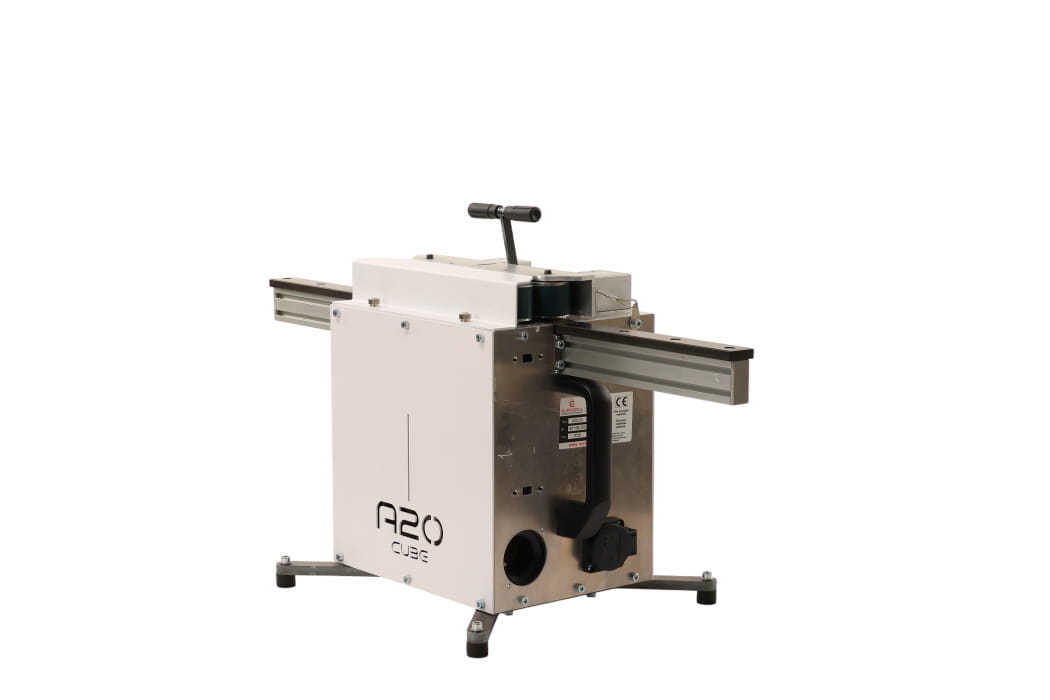

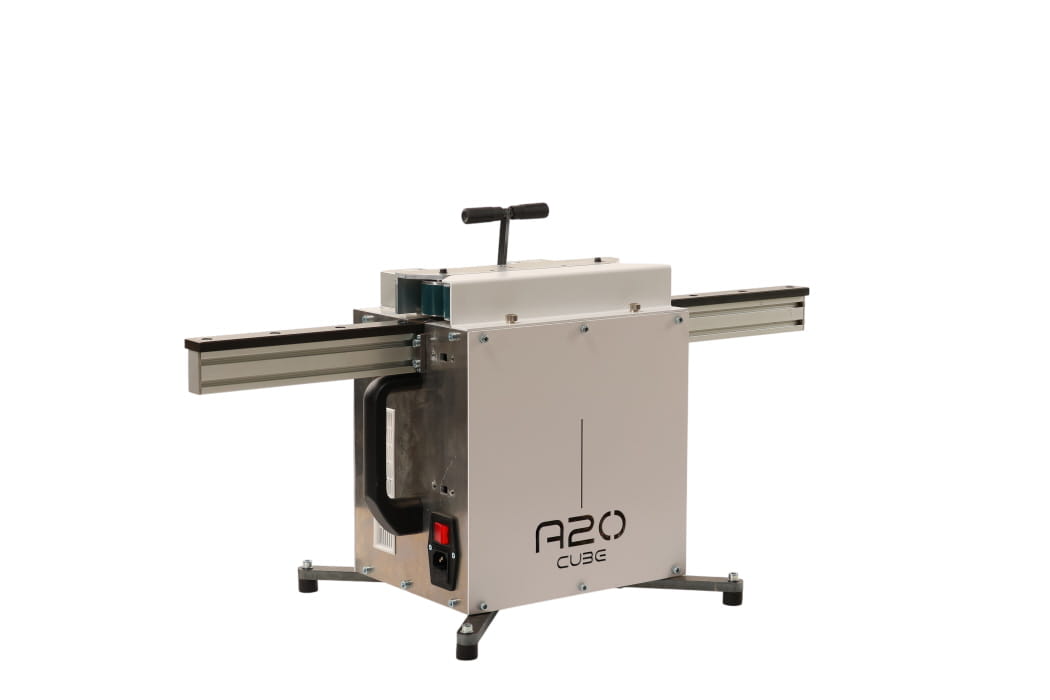

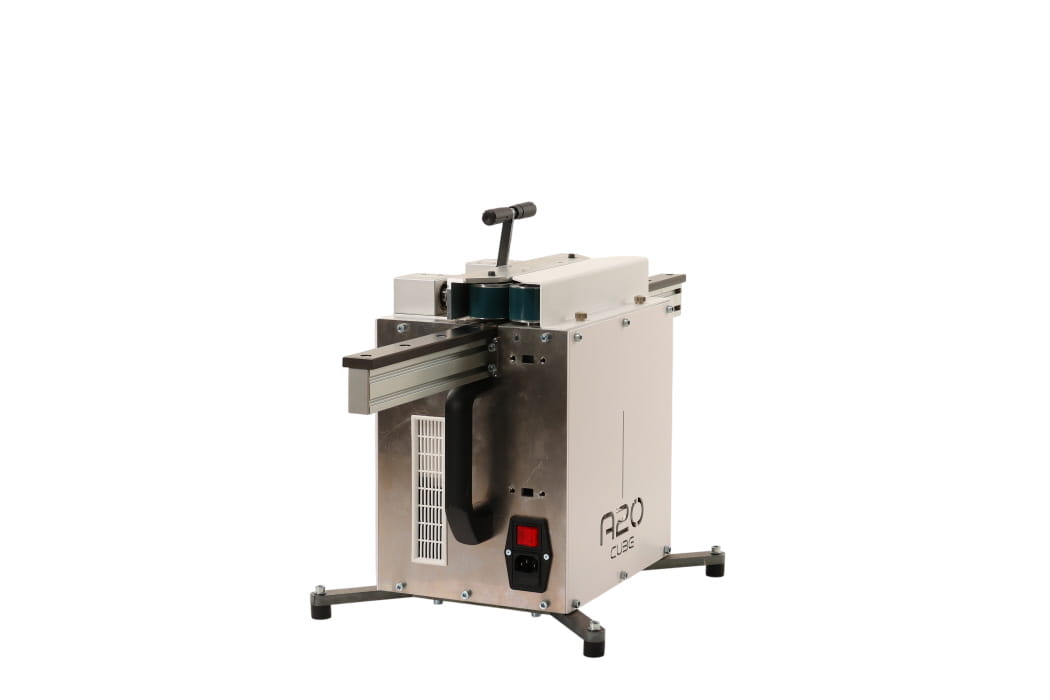

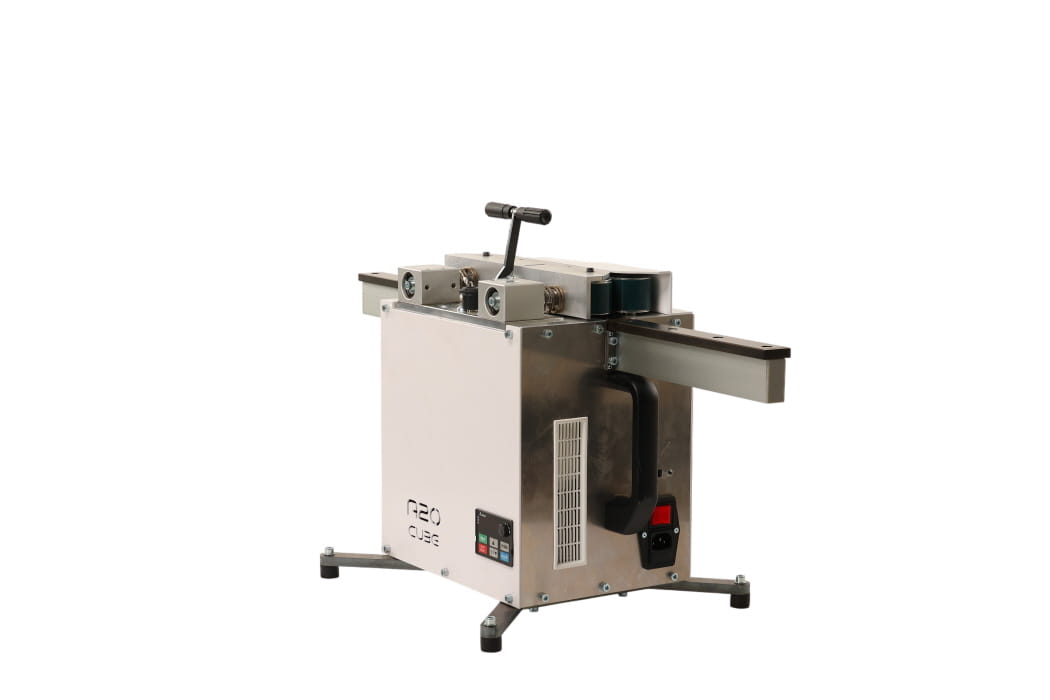

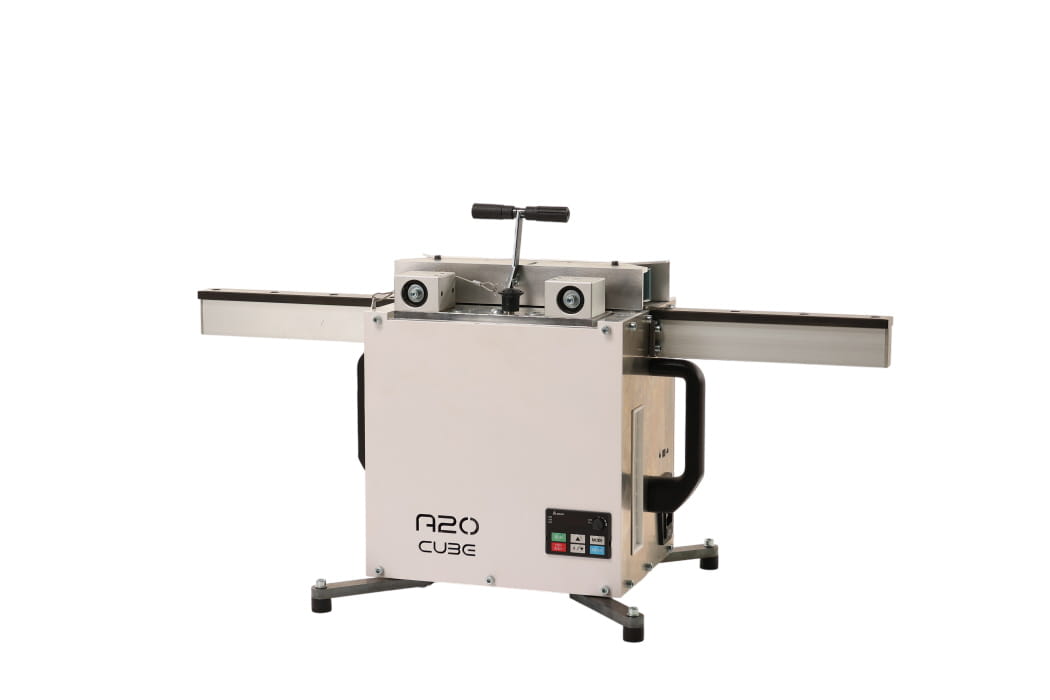

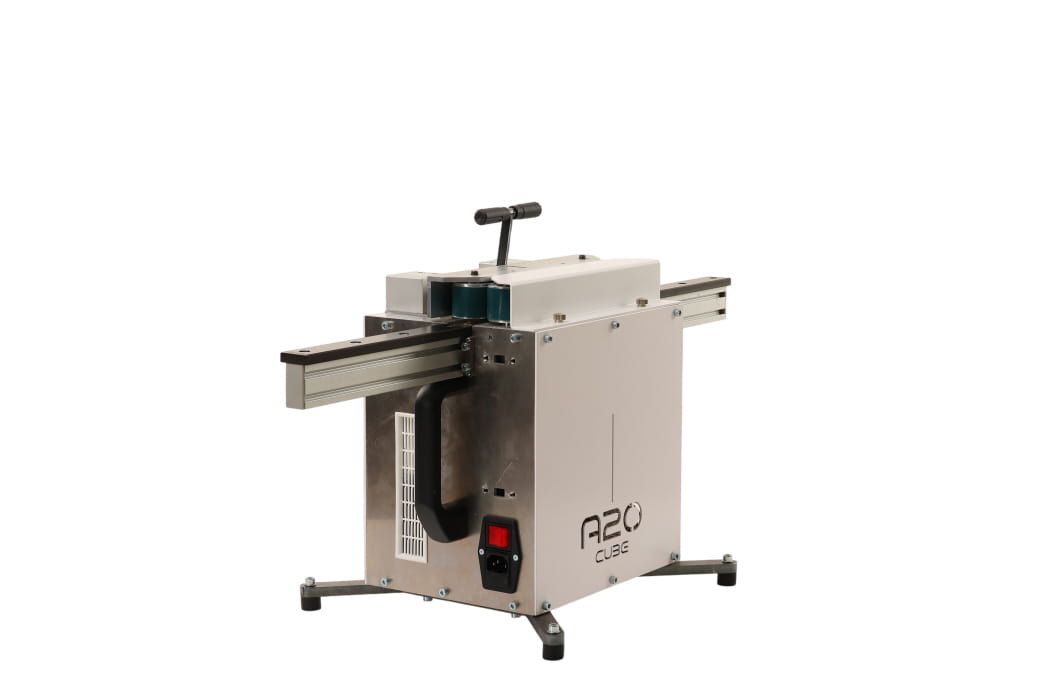

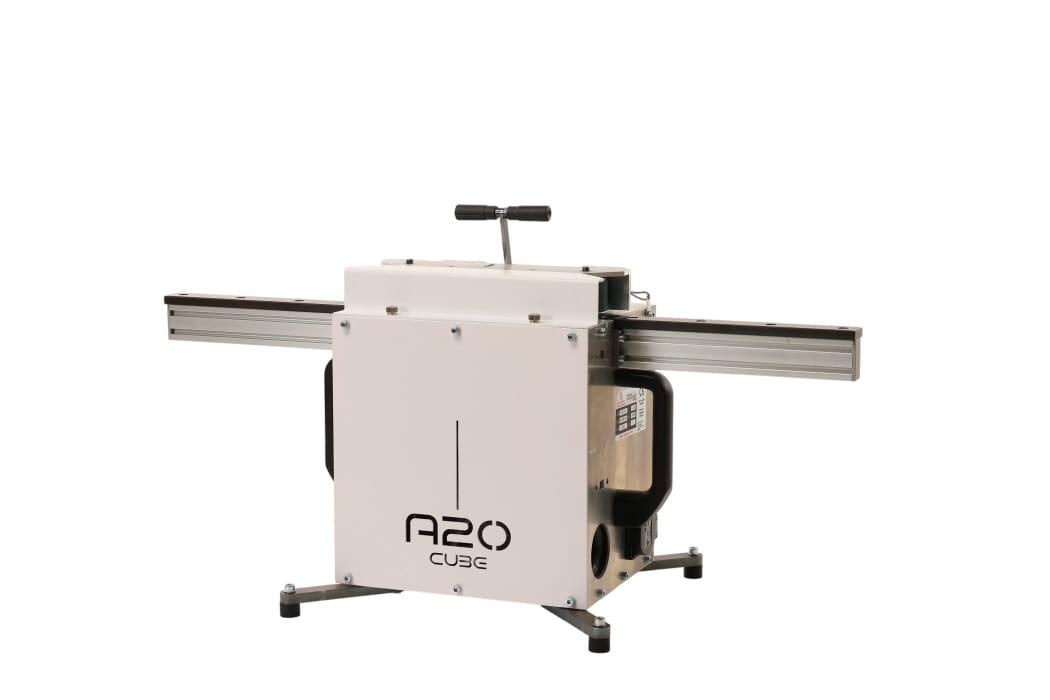

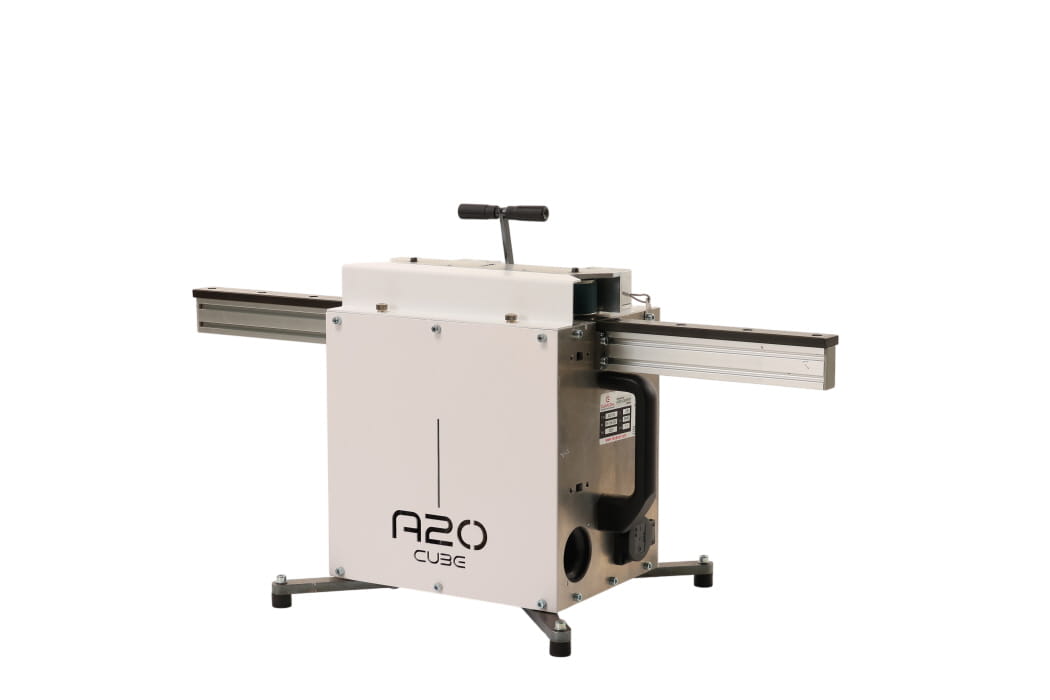

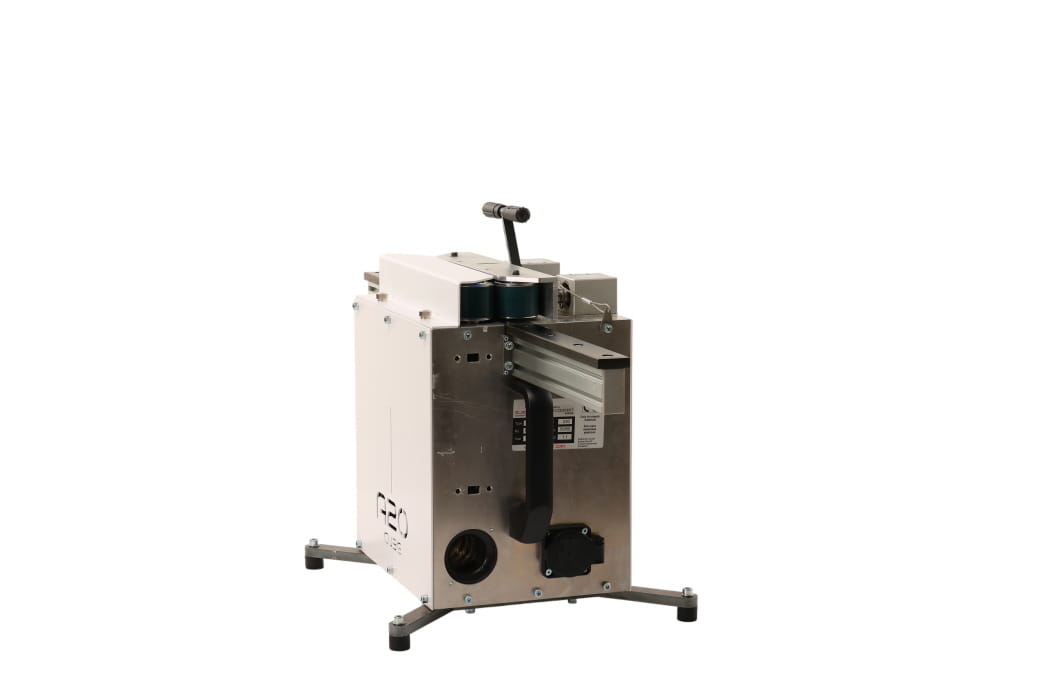

A26 Cube360° — Drag to rotate

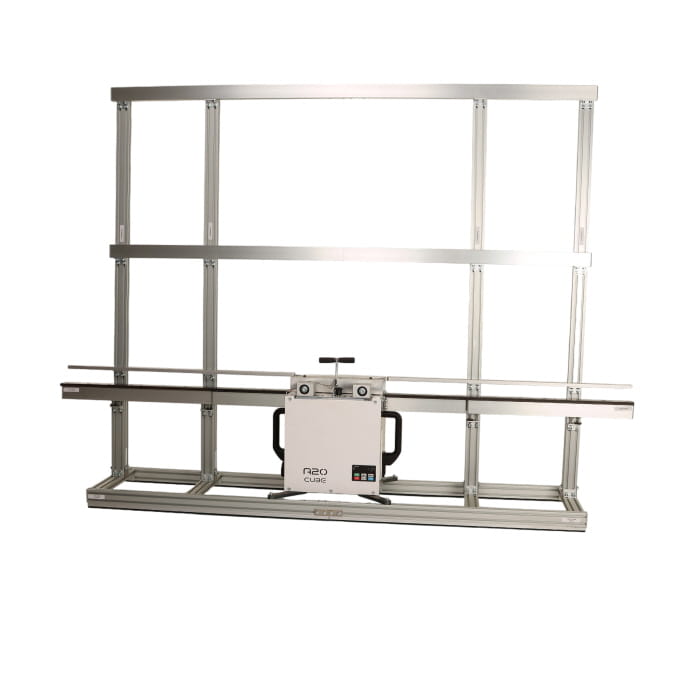

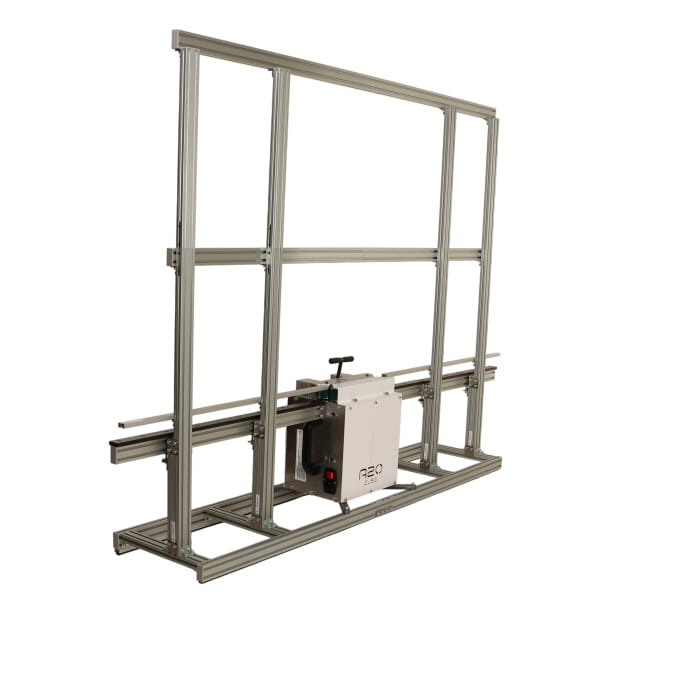

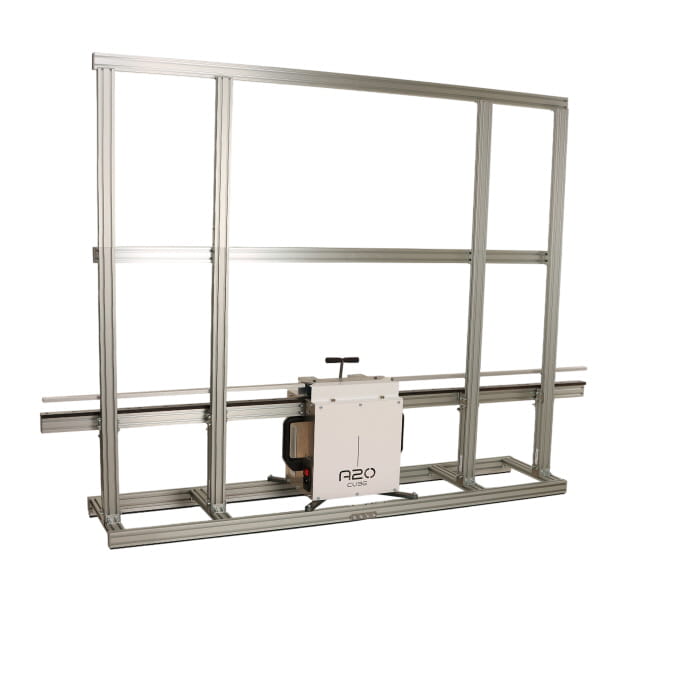

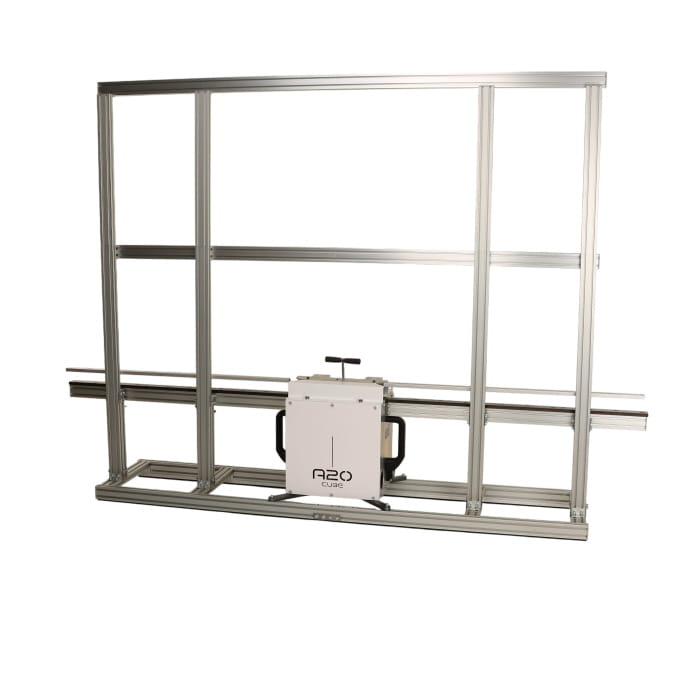

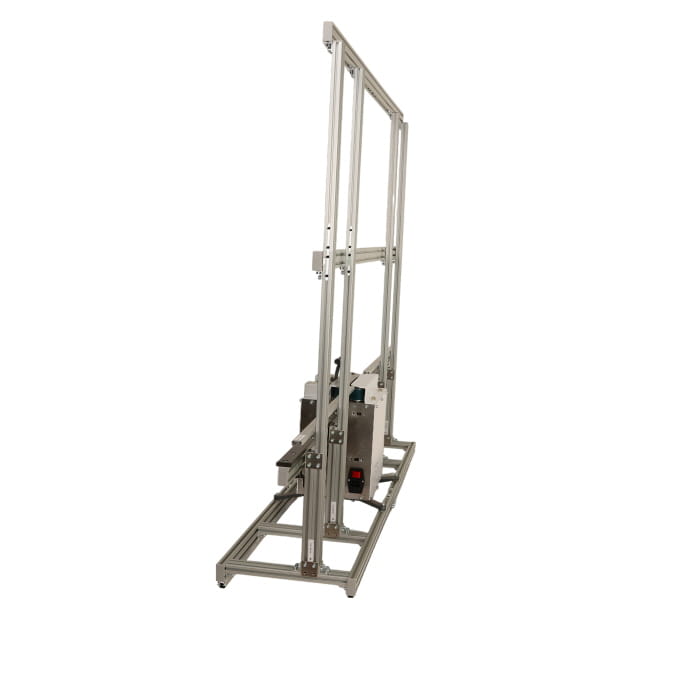

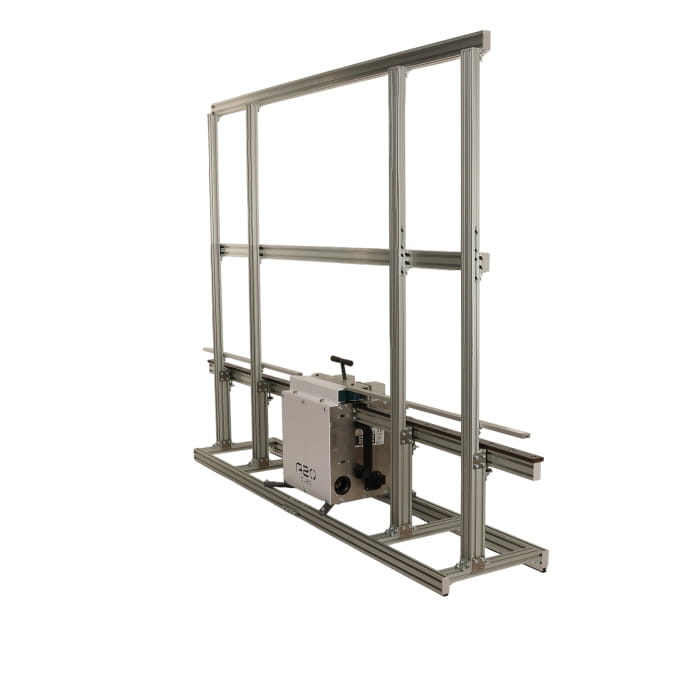

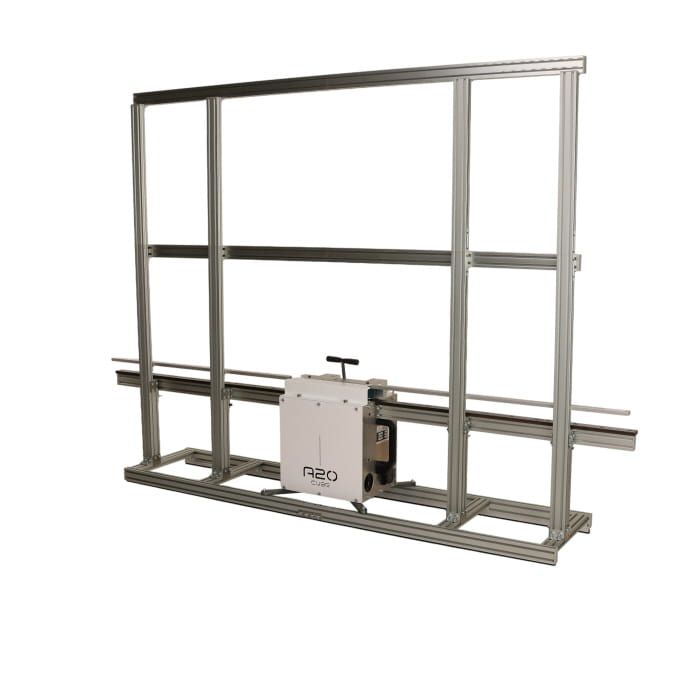

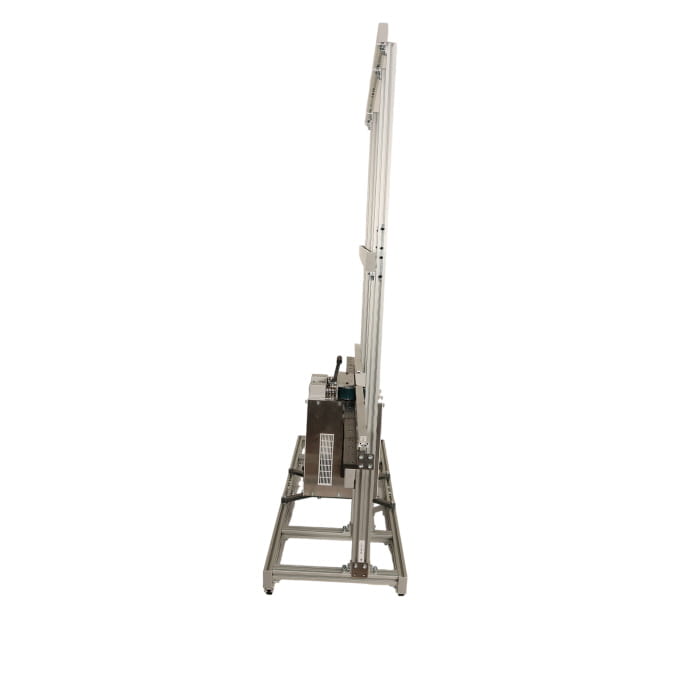

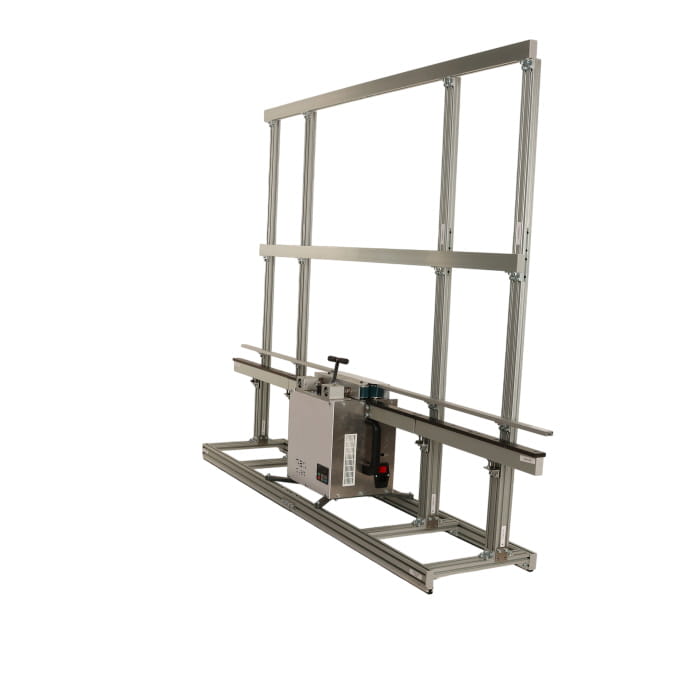

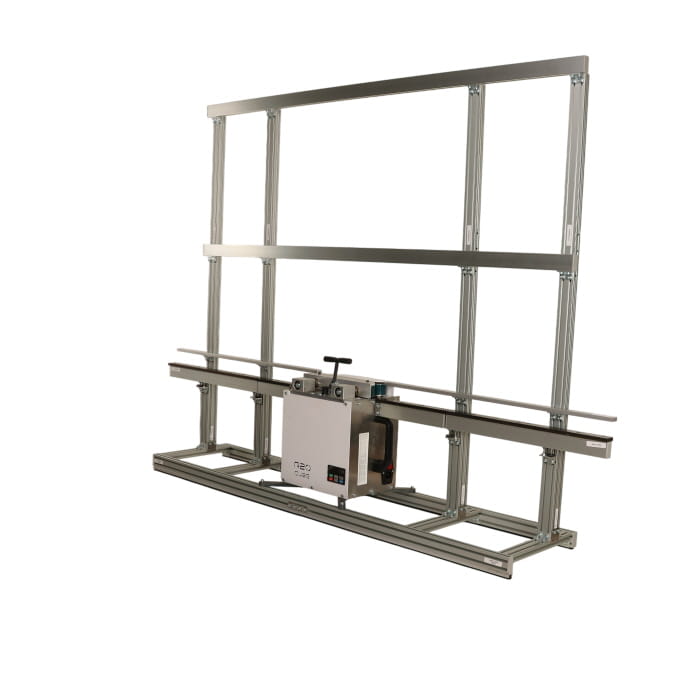

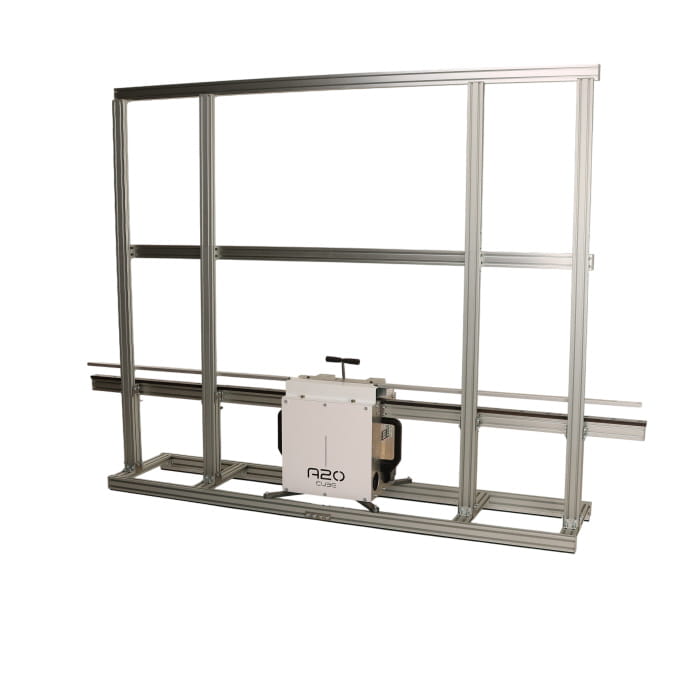

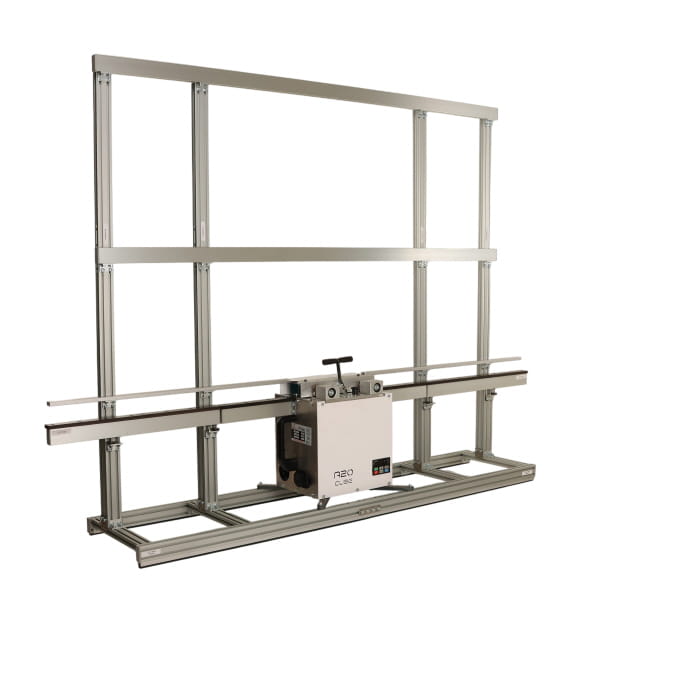

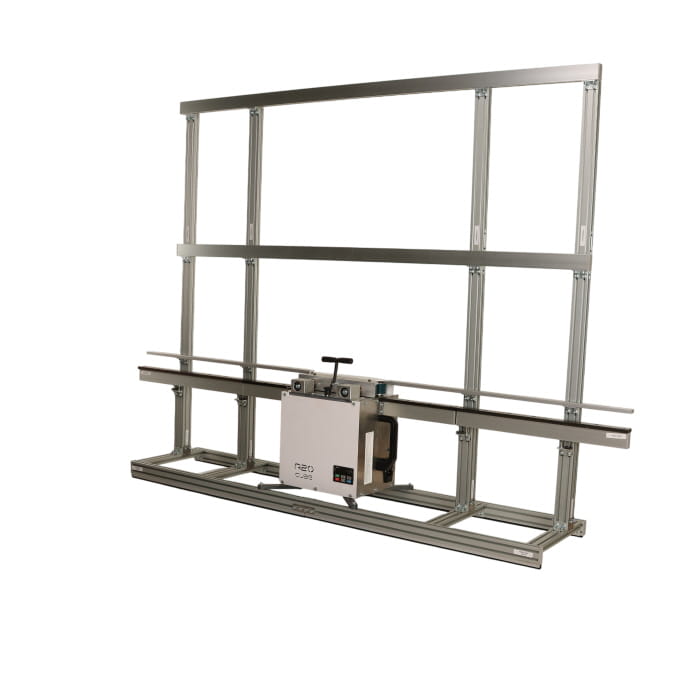

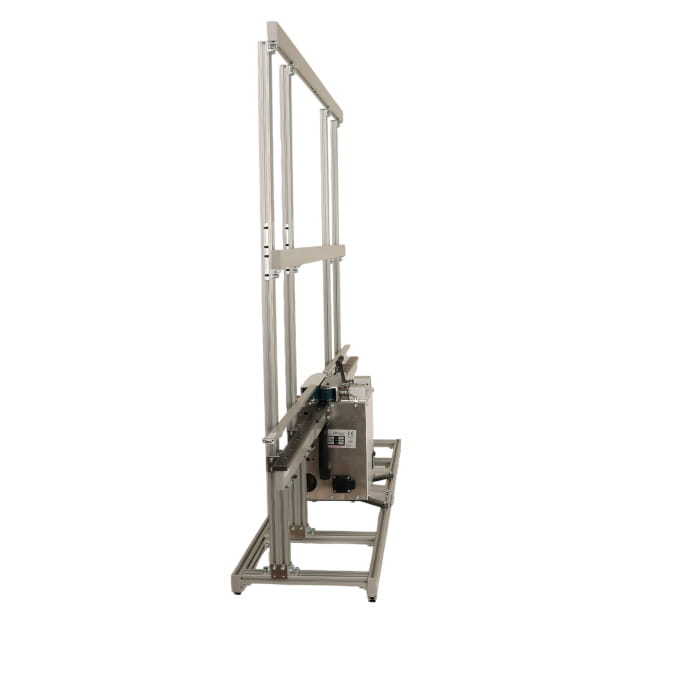

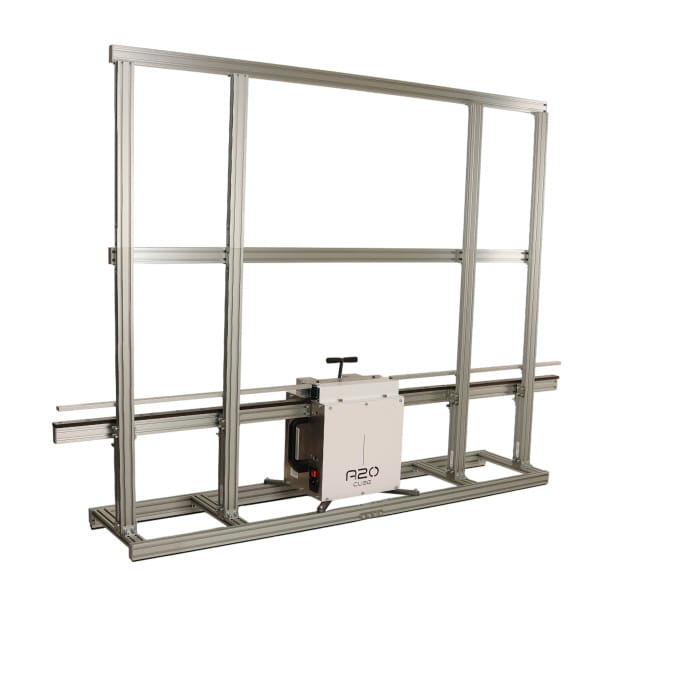

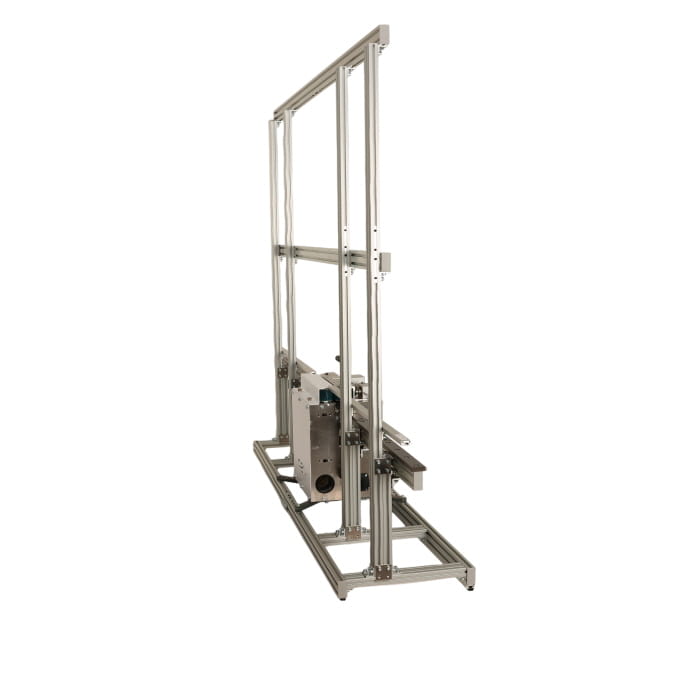

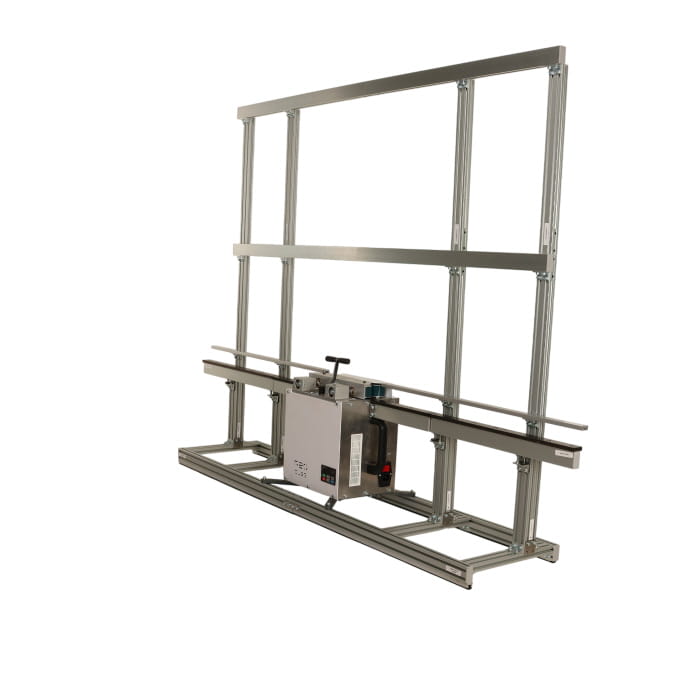

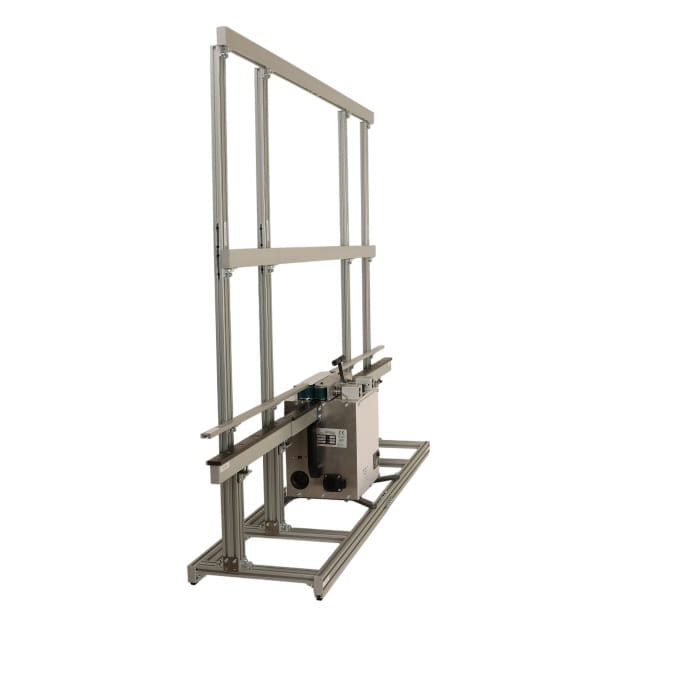

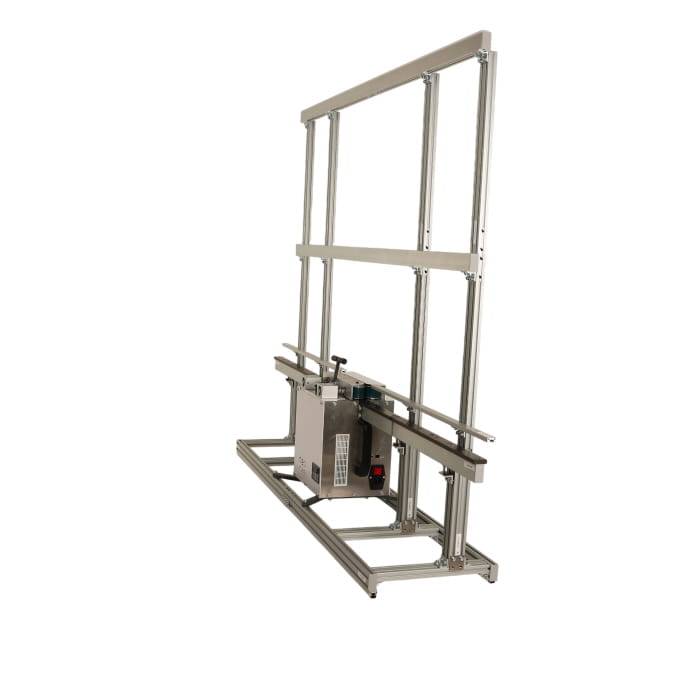

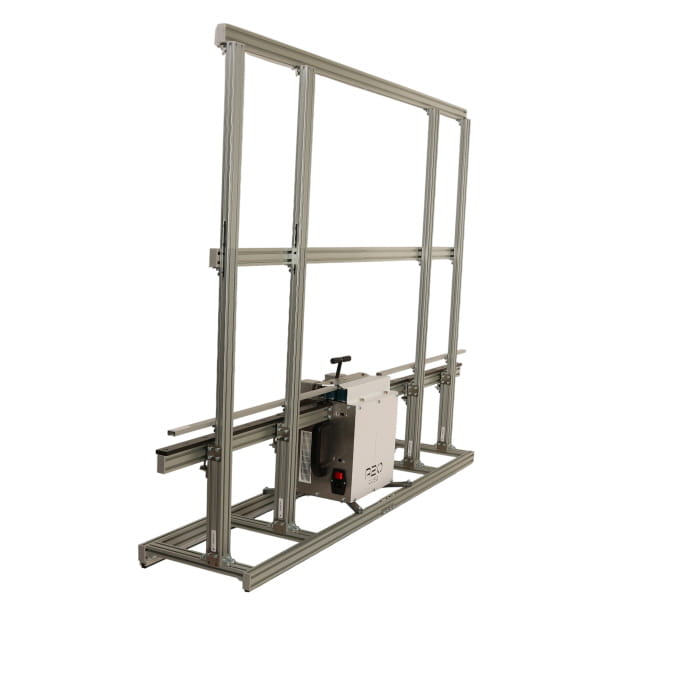

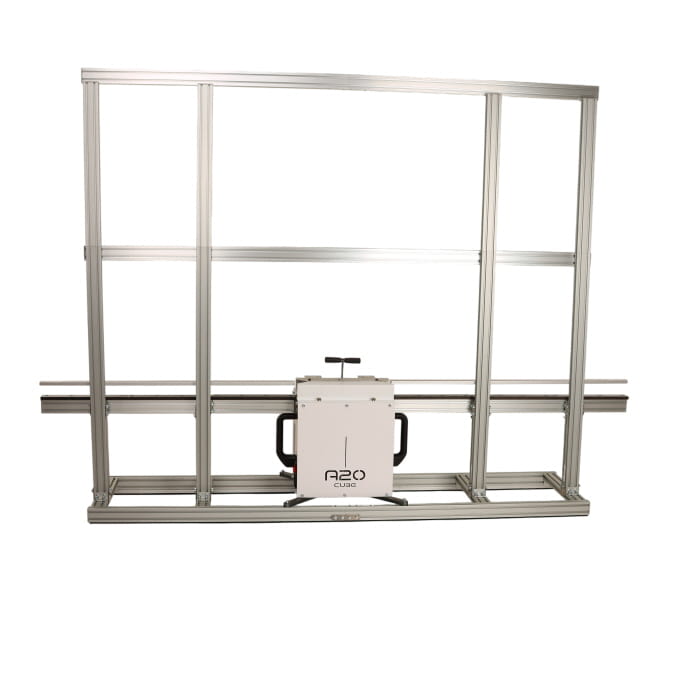

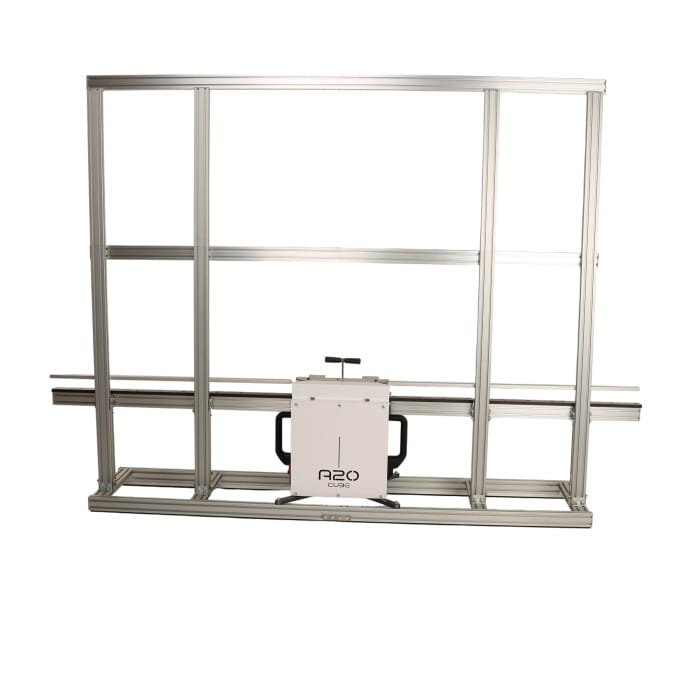

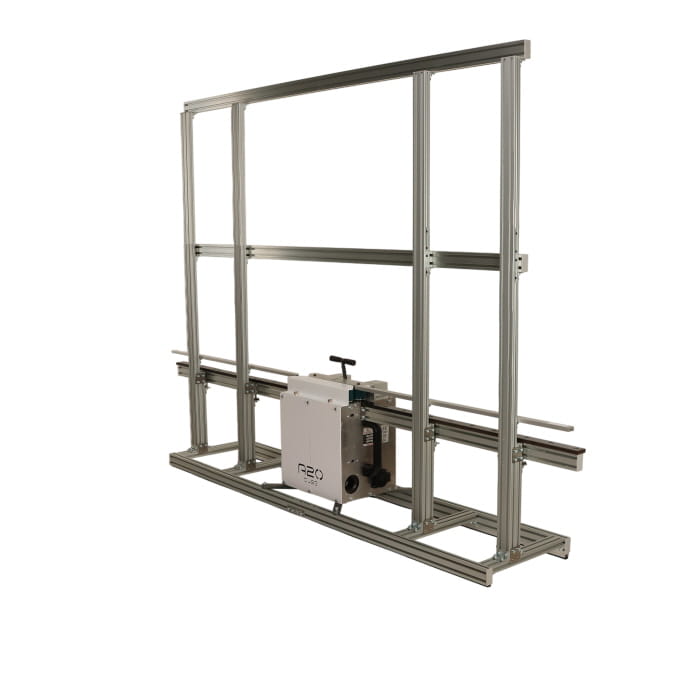

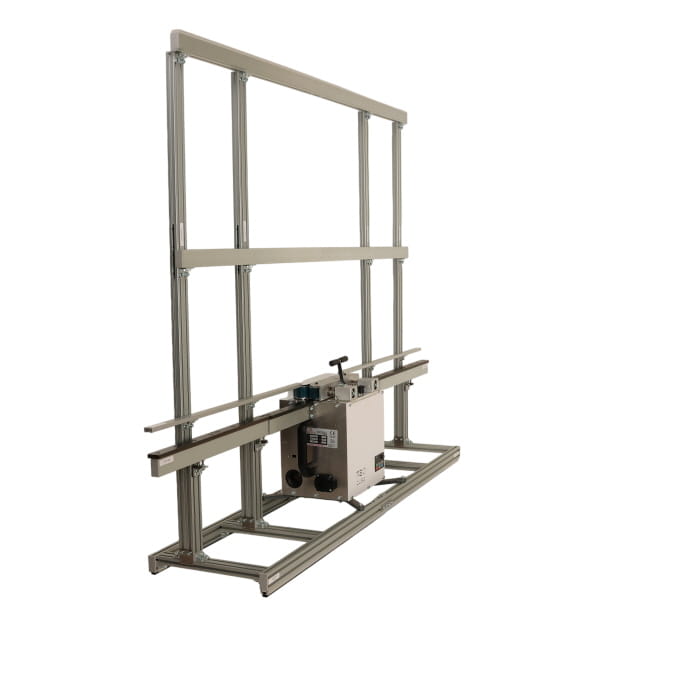

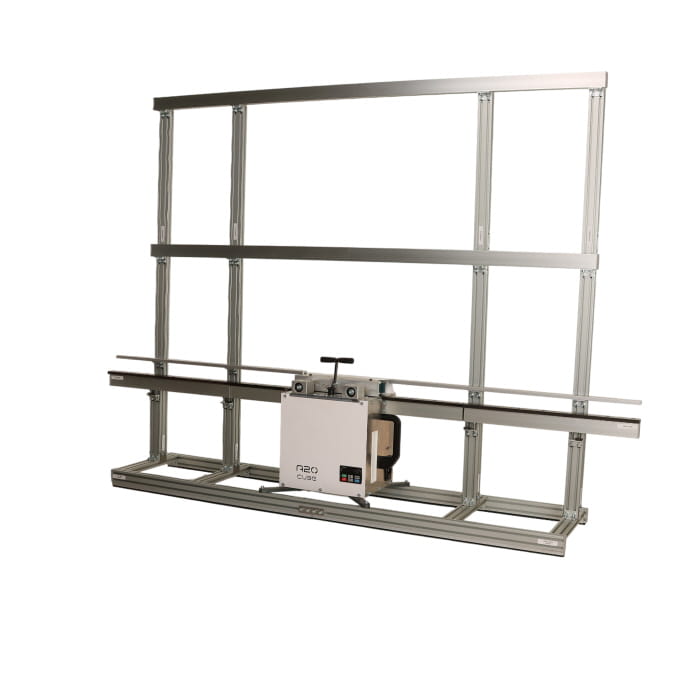

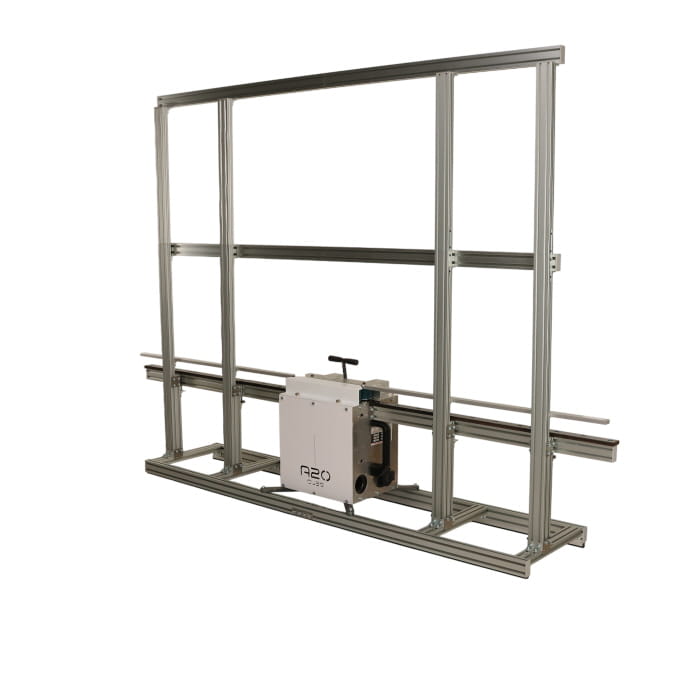

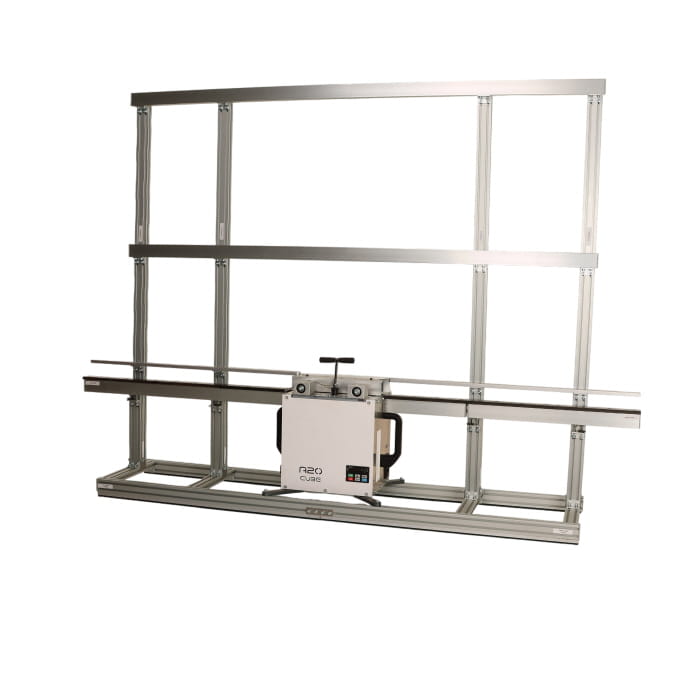

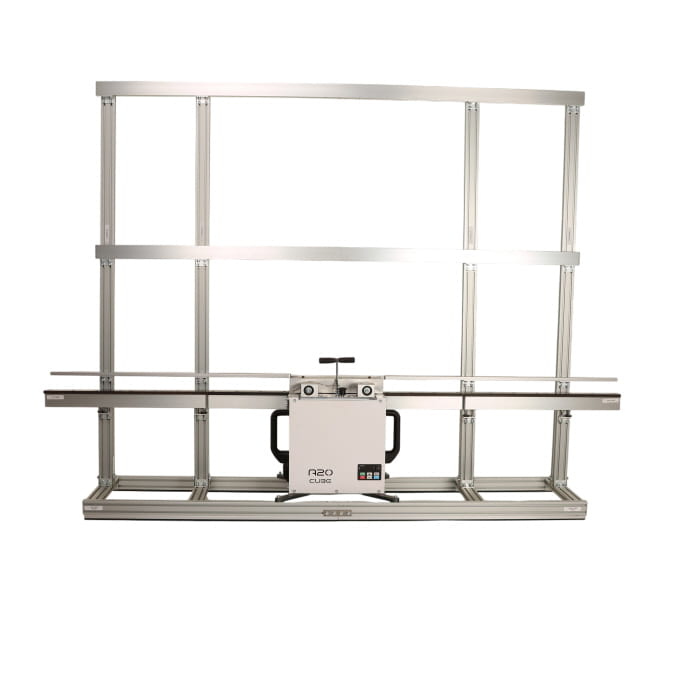

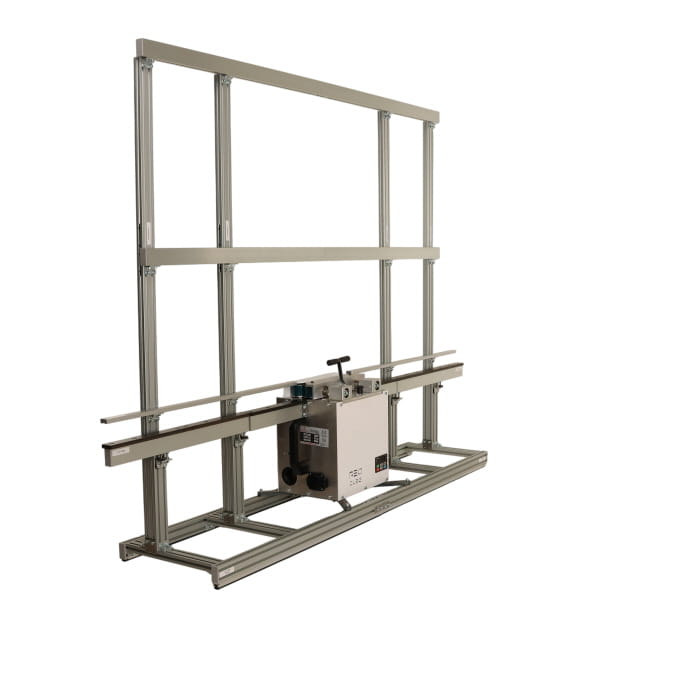

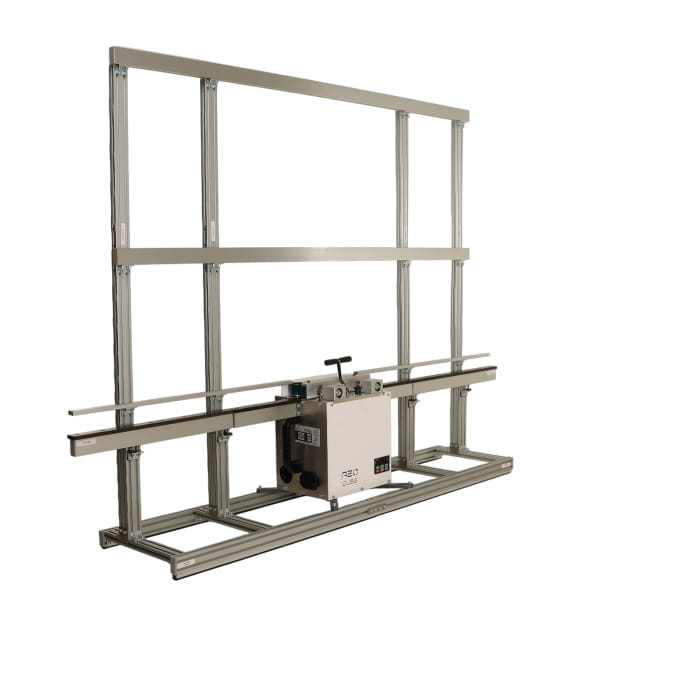

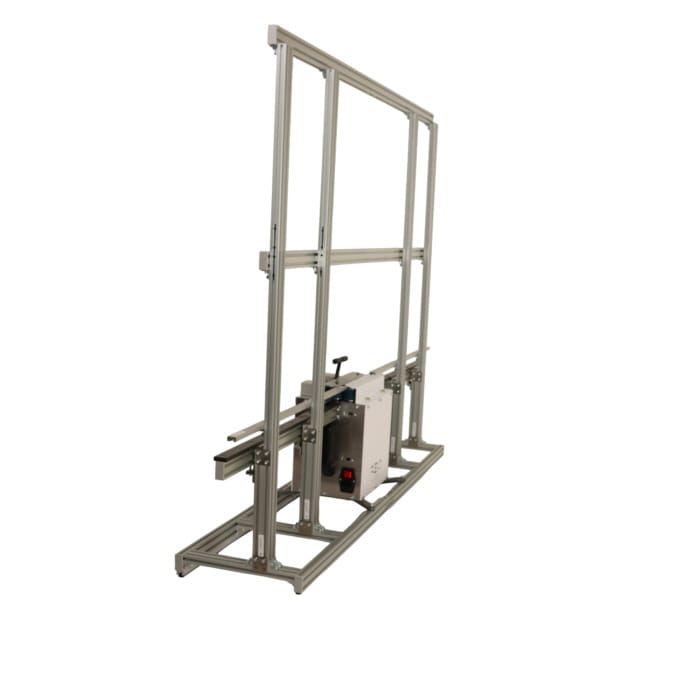

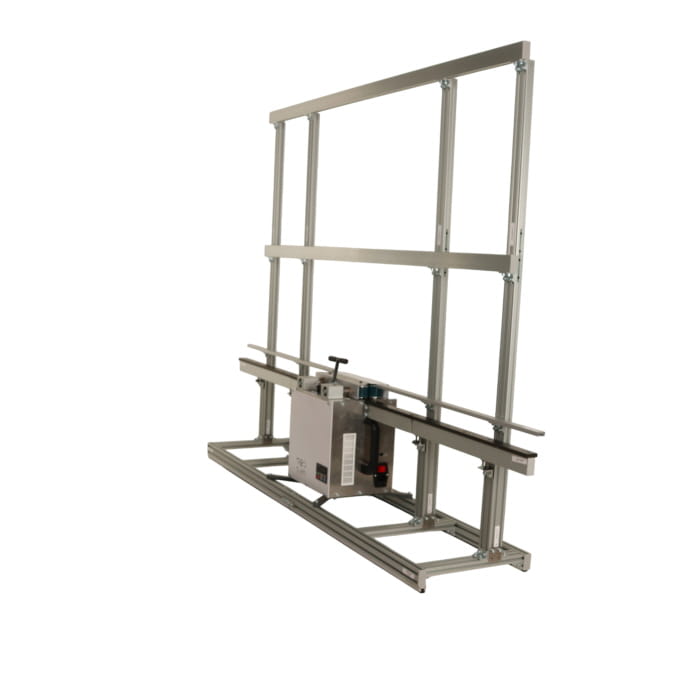

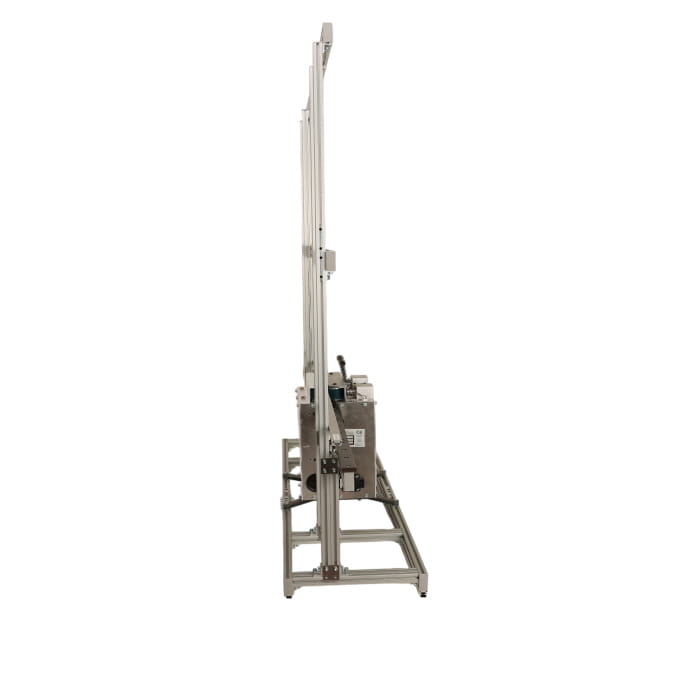

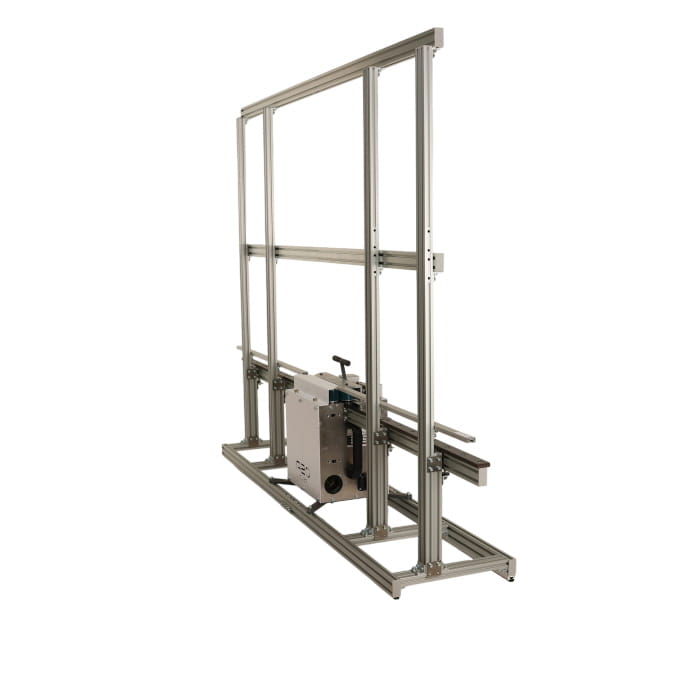

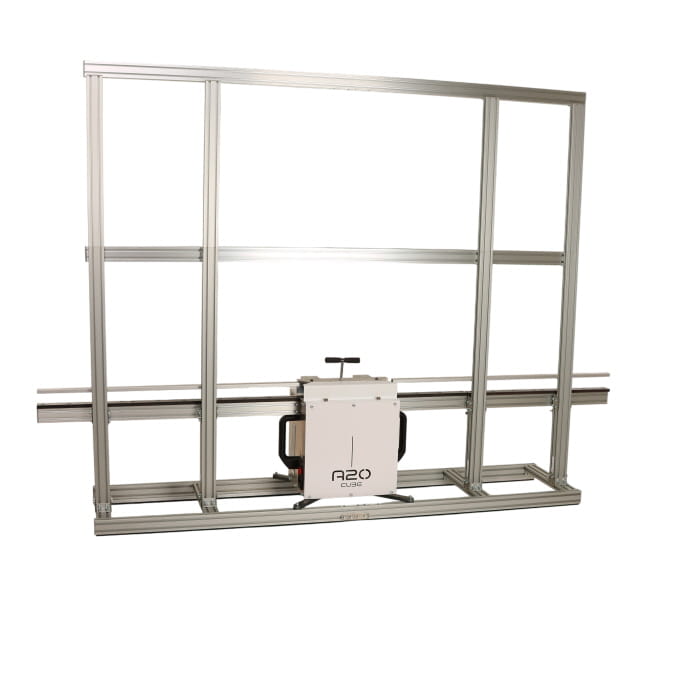

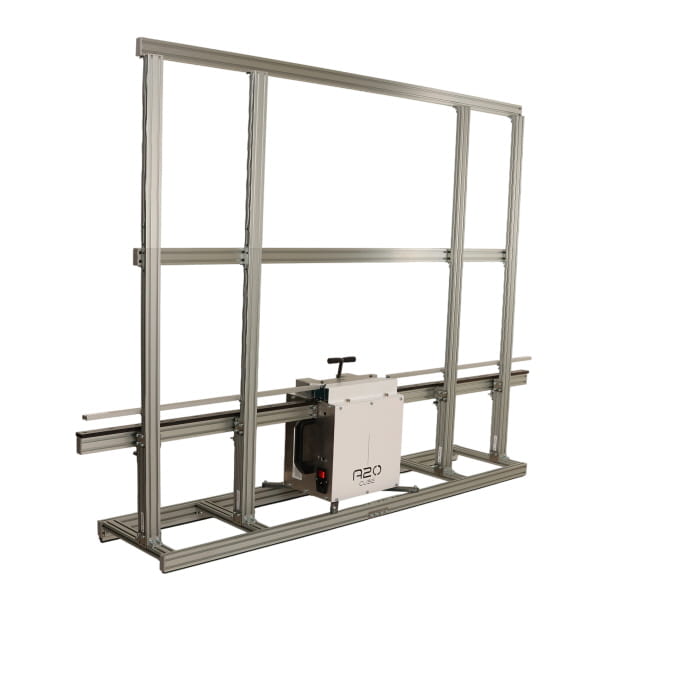

A26 Cube with extension360° — Drag to rotate

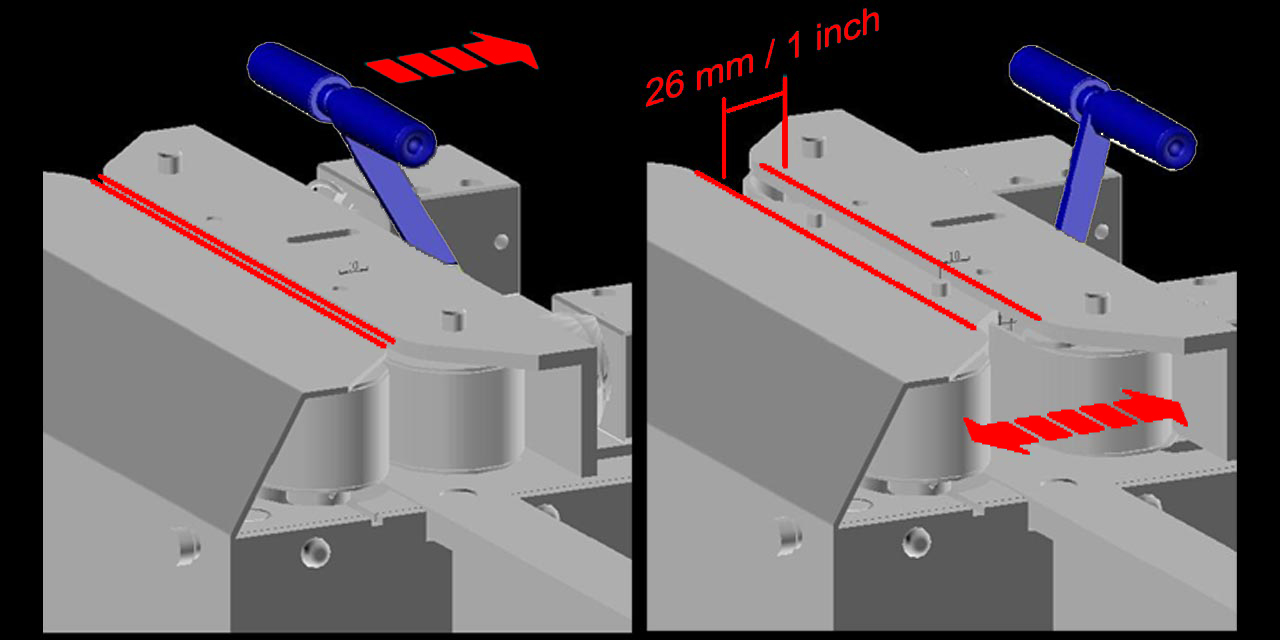

Adjustment of material thickness
Thickness is adjusted conveniently up to 26 mm (1 inch) and without using force by pressing the tension lever.
Mobile use
Compact and light for fast location, robust enough to ensure optimum part finish at all times.

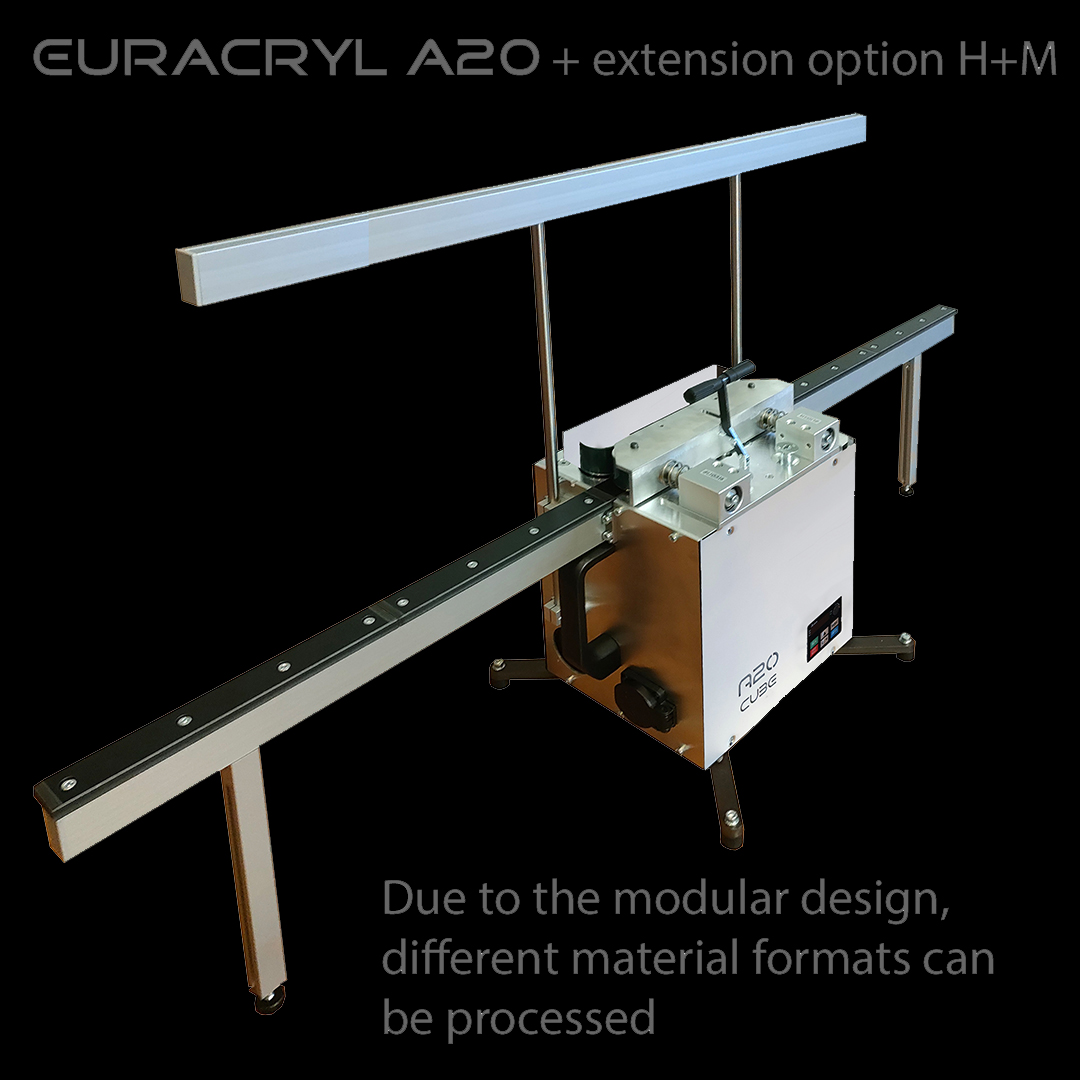

Versatility and flexibility
The A26 can be equipped with various extensions for different material formats. These can also be added later.

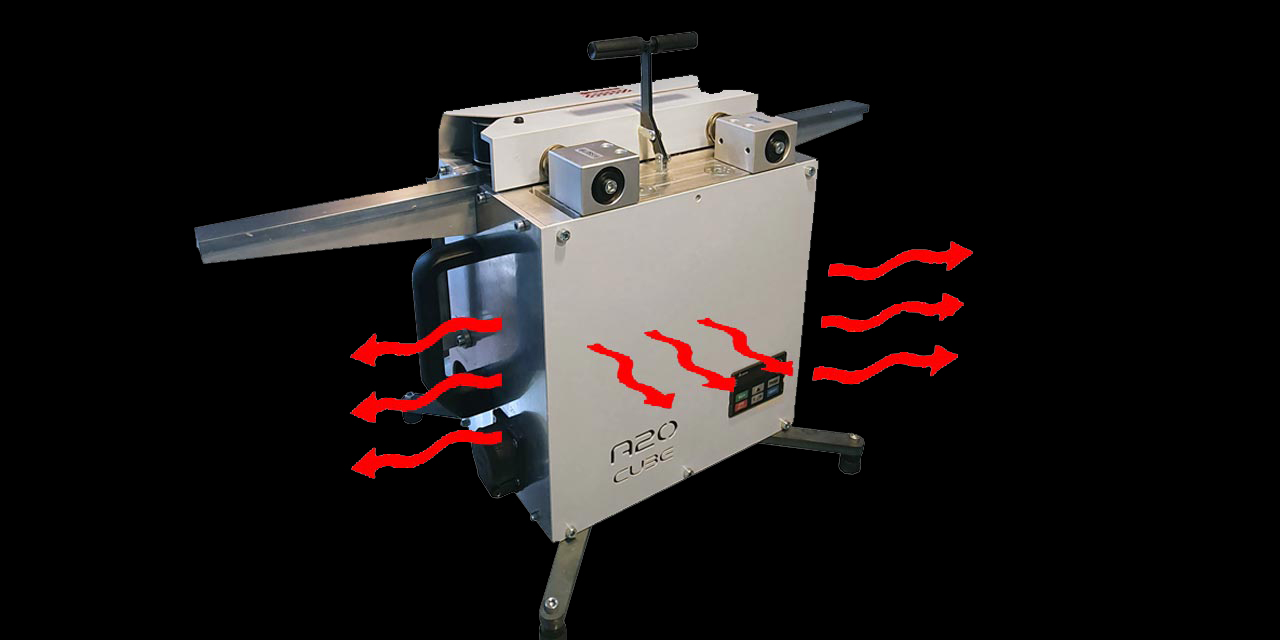

Aluminum housing
Heat-dissipating aluminum housing with additional vents keeps the compact electrical concept cool.
Milling / polishing tools
22 standard tools for plastics (PMMA, PC, PET-G, SAN) or composites, producing high gloss, shiny or satin finishes. HIGH SPEED tools increase feed rate up to 200%.
Euracryl A26 Cube
Portable edge finisher
The Euracryl A26 Cube is a portable edge finisher for straight edges on acrylic and plastic parts from 0.04" to 1.02" thick. It finishes parts 2" to 31.5" long, or up to 48" with extensions, and ships with a high gloss tool. Thickness is set without force using the tension lever, and extensions for other material formats can be added later. At 48.5 lbs, it's a fast, flexible second station for small parts and in-place finishing.
Key data
At a glanceMaterial capability
Technical data
- Material thickness
- 0.04" … 1.02"
- Material length / with accessories
- 2" … 31.5" / up to 48" with extensions
- Milling motor power
- 0.8 kW
- Feed motor power
- 0.3 kW
- Weight
- 48.5 lbs
- Feed speed
- 0.1 … 5 in/min
- Spindle turn speed
- 0 … 18,000 rpm
- Milling depth
- .02"
- Electrical connection
- 230 V / 50-60 Hz (120 V possible with step-up converter)
- Chip extraction diameter
- 32 mm
- Total power
- 1.1 kW
- Tool included / edges
- High gloss / 2
Best for
- Straight edges on thin to mid-thickness sheet
- Small parts and short runs
- Finishing in place or at a second station

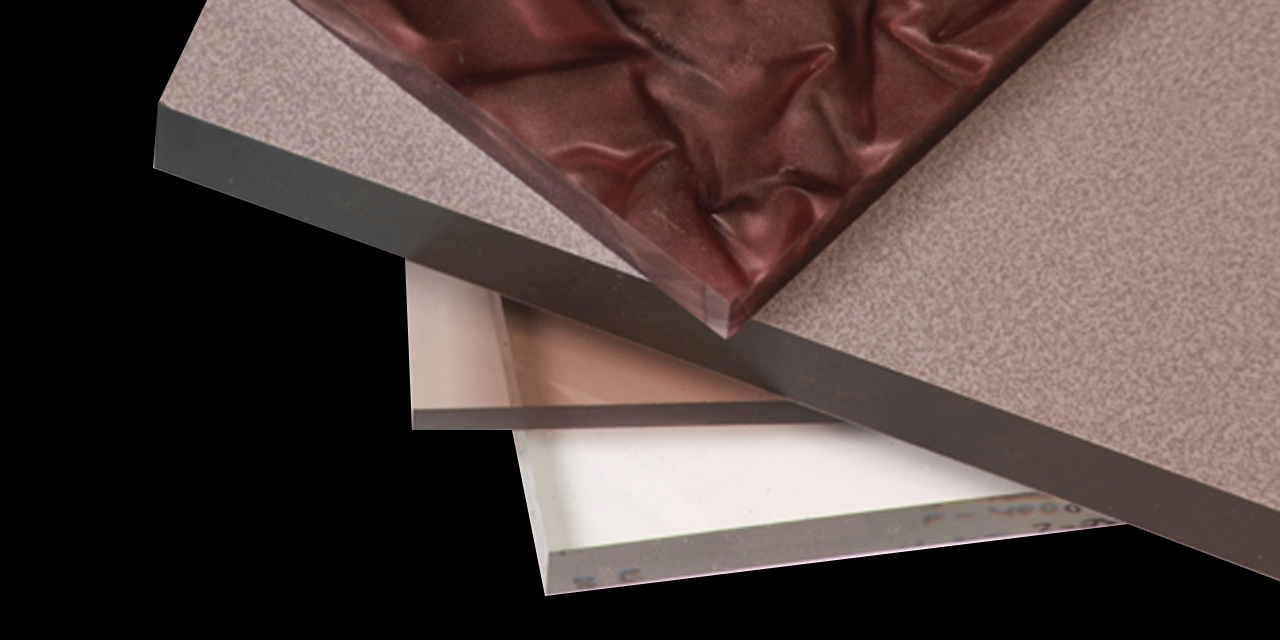

Materials
PMMA, PC, PETG, SAN and composites, from 0.04" to 1.02" thick.
Why the Euracryl A26 Cube
- Tool-free thickness adjustment with the tension lever
- Expandable with extensions for longer parts
- Ships with a high gloss tool; 22 standard tools available
- Heat-dissipating aluminum housing
Common applications
Furniture and acrylic hardware · Scenography and exhibits · Small display parts. See edge polishing by application
Compare
- Consider the Euracryl V20s Cube if your work is mostly bevels and chamfers.
- Consider the Bermaq AM2-i if your parts are thicker than 1" or longer than 48".
- Not sure? Match a machine to your parts in the Machine Finder.
Euracryl A26 Cube FAQ
+What thickness can the A26 Cube finish?
0.04" to 1.02".
+How long a part can it handle?
2" to 31.5" standard, up to 48" with extensions.
+Is the A26 the same as the A20?
The A26 Cube is Euracryl's current model in this portable edge-finisher line.
