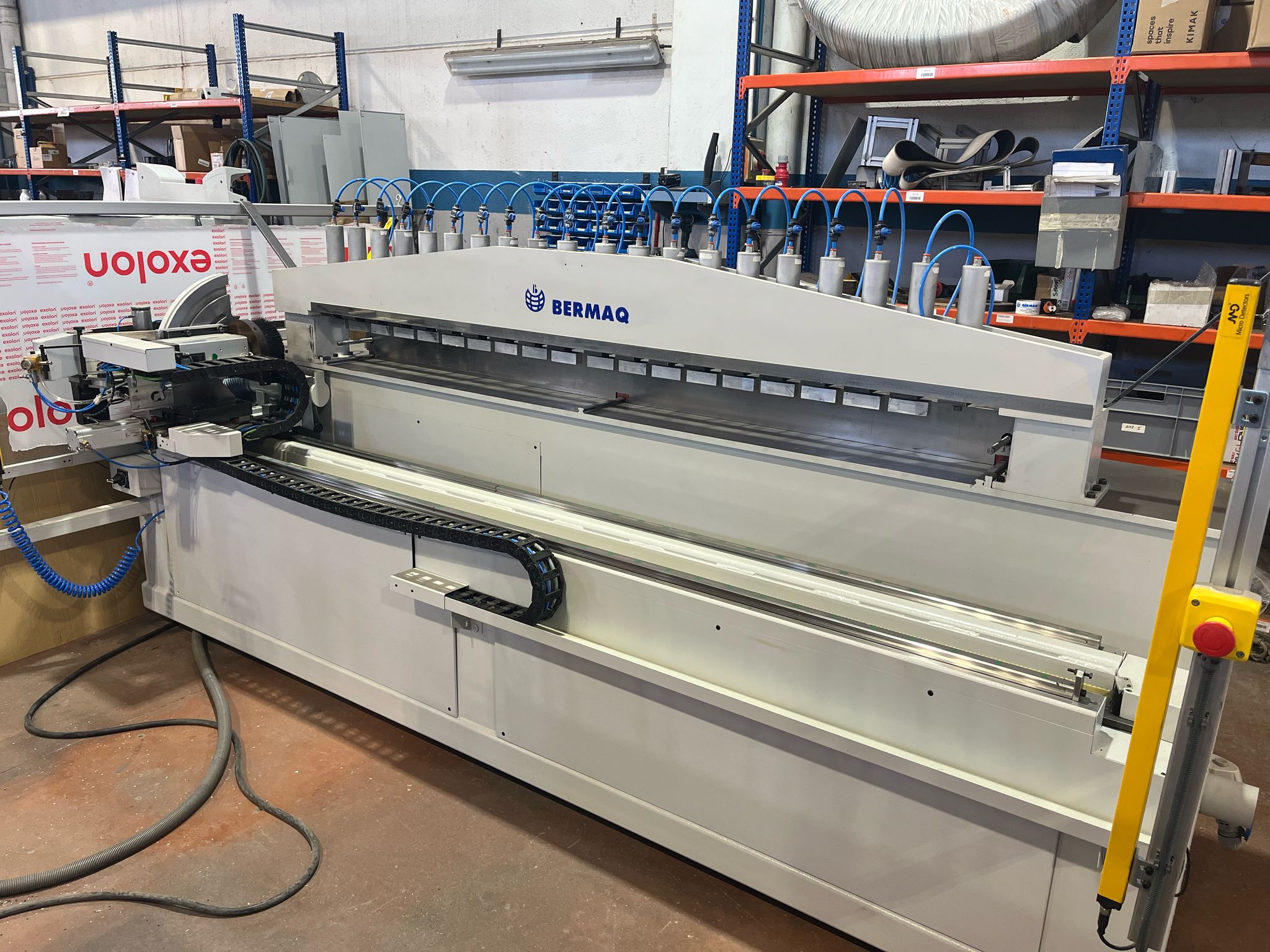

Bermaq AMI-C-E Custom
Need precision parts? This machine was custom built to make exact parts using a parallax referencing unit. This machine only polishes pieces at 90° (straight edges).
- Stabilized structural steel bench
- 20 clamps
- Tool cabinet
- High accuracy guides
- Electronically adjustable depth by reference screen
- Ground steel table
- CE safety regulations

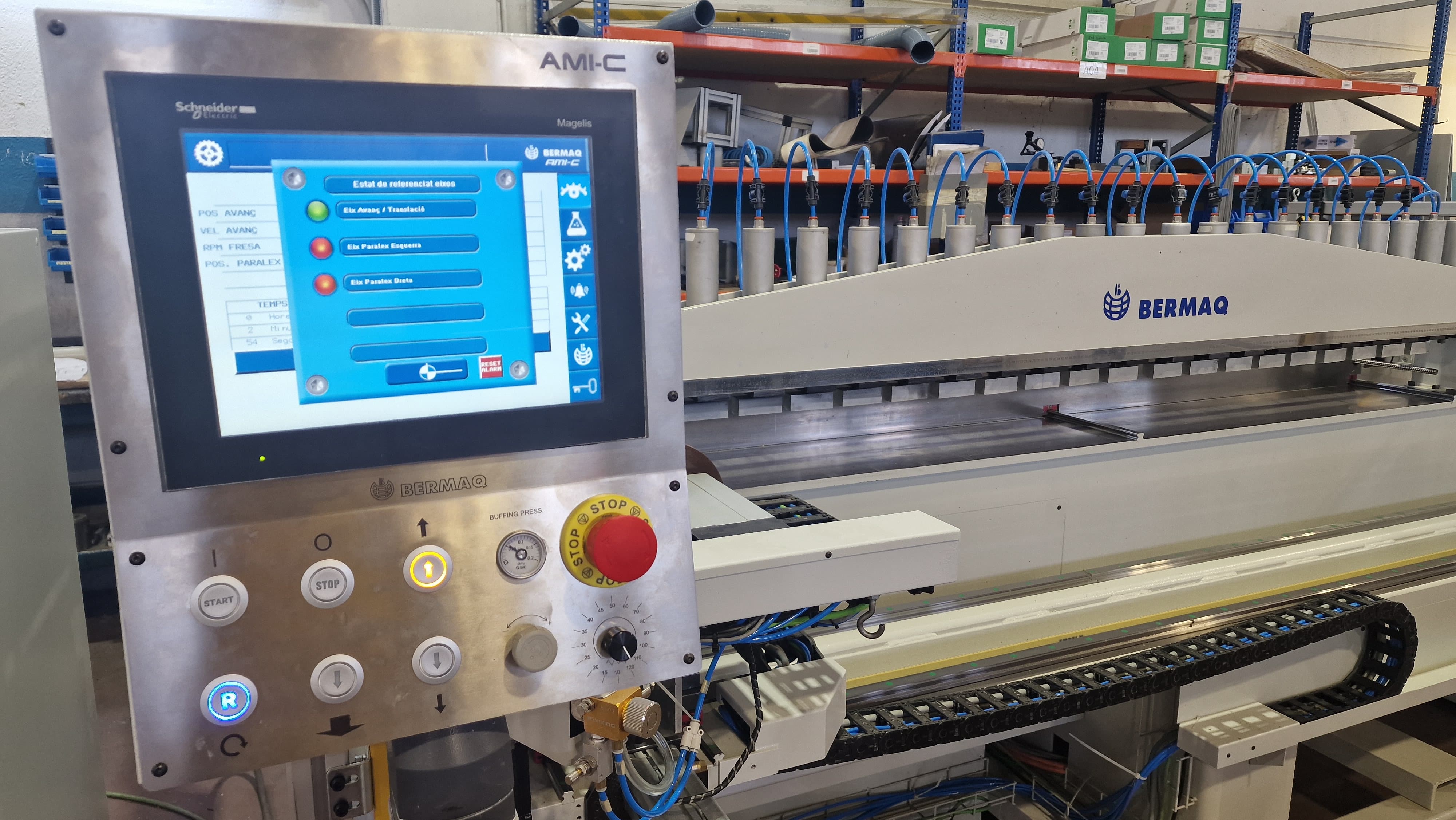

- LCD touch screen 10.4"
- Machining automation
- Length pieces' programmer (OFFSET)
- Recipe library of pieces
- Easy-to-use intuitive software
- Router for teleservice option (internet connection required)
Technical specifications
| Maximum workpiece length | 2,100 mm (two sections of 1,050 mm) |
|---|---|
| Maximum workpiece width | 310 mm |
| Maximum workpiece thickness | 120 mm (90°) |
| CNC control | 10.4" touchscreen color |
| Max. depth of cut | 4 mm |
| Milling RPM | 5,000 / 12,000 rpm |
| Milling speed | 0 - 10 m/min |
| No-load speed | 0 - 20 m/min |
| Air pressure | 6 bar |
| Suction diameter | 80 mm |
| Standard clamps | 20 |
| Weight | 1,850 kg |
| Total power | 8.5 kW |
| Voltage | 400V III+N | 230V III (50/60 Hz) |
